Enviro EF-IV I - Exploded View: Steel Components

31
GOLD DOOR COMPLETE
EF4i-092
PAINTED DOOR COMPLETE
EF4i-094
FS STOVE TOP
EF4I-111
STOVE TOP
HANDLE
BACK GRILL
EF4i-097
FS LEFT
CABINET
SIDE
EF4i-142
ASH PAN W/
LATCH
EF4i-105
FS
PEDESTAL
(ASH PAN
TYPE)
EF4i-139
EF 4 I

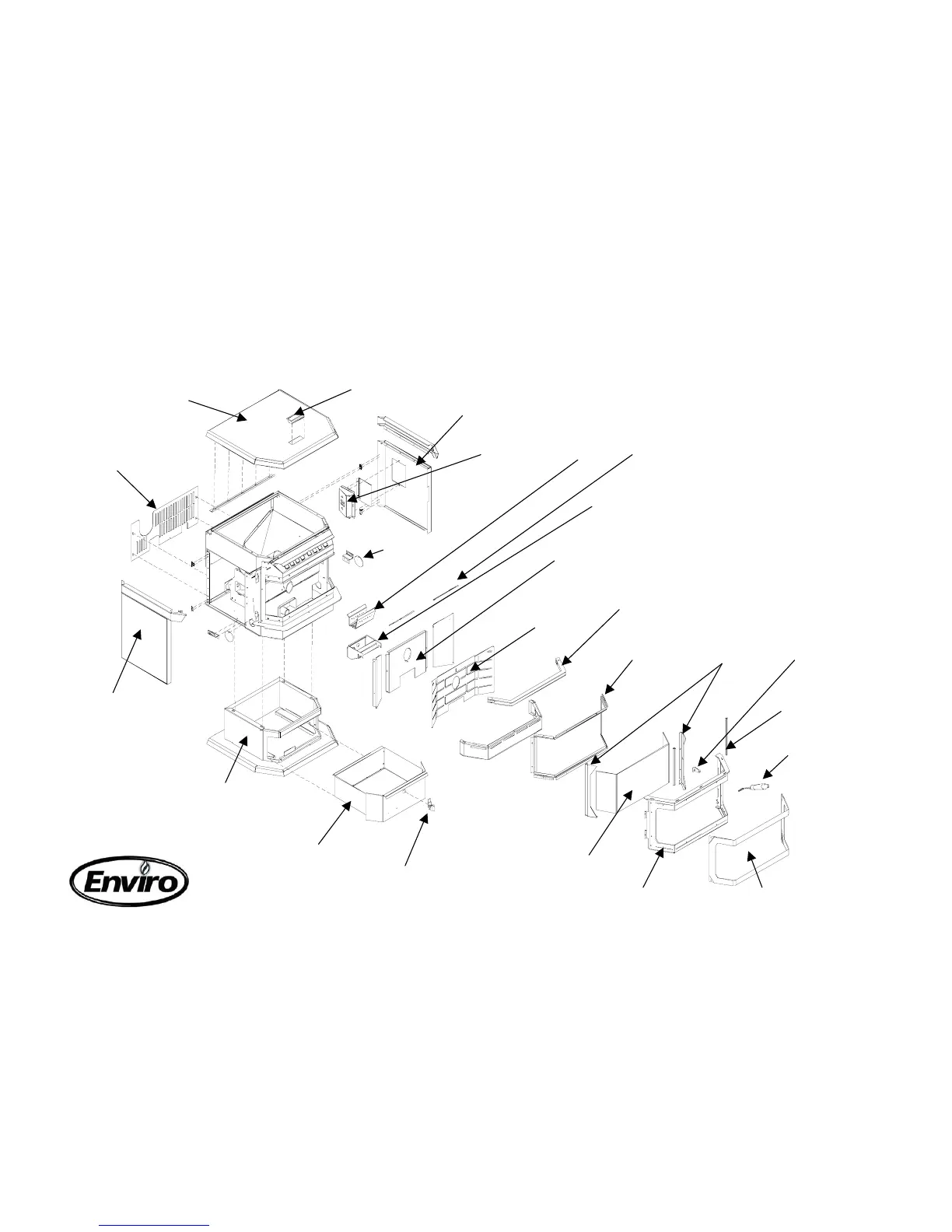

EXPLODED (STEEL COMPONENTS)
Pa
g
e 2 of 2 JULY 2001
ASH PAN
LATCH
EF4i-060
FS RIGHT
CABINET
SIDE
EF4i-143
CONTROL
PANEL w
DECAL
EF4i-053
VACUUM
PORT
COVER
IGNITION
BURN POT
EF4i-021
STAINLESS
BURN POT
LINER
EF4i-024
FIREBOX
LINER TOP
BAFFLE
EF4i-066
FIREBOX
LINER W/
INSULATION
EF4i-047
STEEL BRICK
LINING
EF4i-130
FRONT
GRILL
EF4i-123
GLASS
RETAINERS
GLASS SET
EF4i-062
GLASS
EXTRUSIONS
DOOR LATCH
AND HINGE
COVERS
EF4i-096
DOOR LATCH
WITH BOLT
EF4i-029
DOOR
HANDLE
(WOODEN)
EF4i-028
GOLD OR PAINTED
OUTER DOOR (A + B)
EF4i-095 PAINTED
EF4i-093 GOLD
INNER
DOOR (B)
