Internal Standard Flue Kit (50)

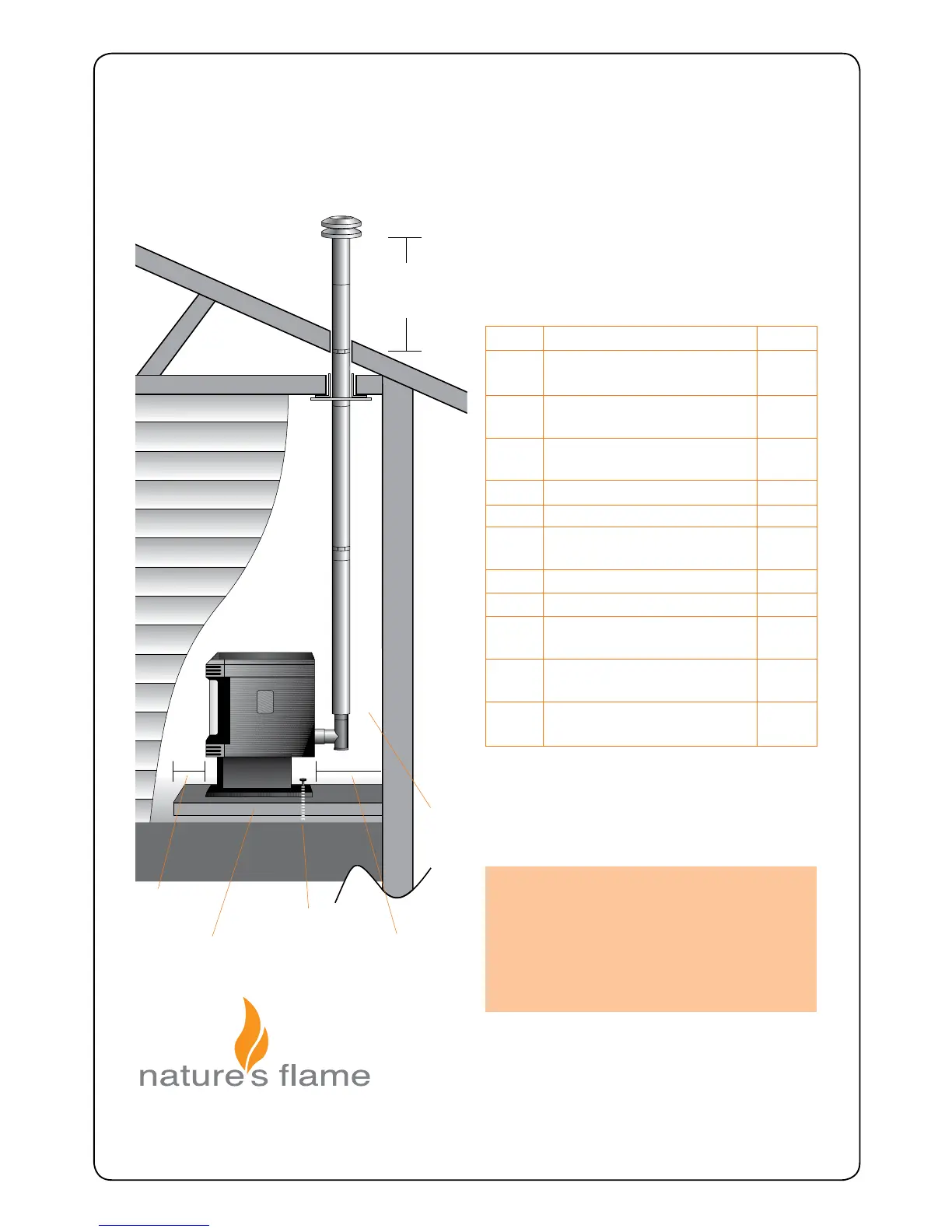

Internal Standard Flue Kit
Each 50 Internal Standard Flue Kit contains:-
ytitnauQnoitpircseDoN traP
1 Galvanised outer liner
ø100mm x 900mm long 1
4
3
2
1
1
1
1
1
1
2
2 Stainless steel inner liner
ø75mm x 900mm long
4a Black p/coat outer liner
ø100mm x 900mm long
5 Inner/outer ue liner spacer
6c Ceiling thimble ø107mm hole
7c Ceiling decor plate
ø107mm hole – white
8 Rain cap 75mm
9 Rain Cap 100mm
10b Elbow 45° – ø75mm stainless
– black (painted)
12H T-adaptor/cleanout – ø75mm
– black (painted)
23 Support angle 950mm long
– 50mm x 50mm sides
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m. The
overall height of the ue is 3.6m. The visible u e is
nished in black and the ceiling plate is white. T he
support angles for securing the liner to the ceilin g are
not shown. Kit is supplied in a carton.
Heat-resistant
oor protector
Seismic restraint
(to be tted)
50mm minimum clearance if lined ue
600mm from
roof
penetration
~
210 mm
150mm
(minimum)
Note: The Davin 50 Internal Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.
All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.
50
To order : Telephone 0800 765 431. Fax 64 3 341 8057 info@switchenergy.co.nz www.switchenergy.co.nzDecember 2006
Drawing representative only - not to scale.
This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m.
The overall height of the ue is 3.6m. The visible
ue is nished in black and the ceiling plate is
white. The support angles for securing the liner to
the ceiling are not shown. Kit is supplied in carton.
