Enviro MERIDIAN Technical Manual

Wall framing
Wall thimble
Termination cap
Vertical section
of vent pipe
Horizontal frame
for thimble
Clean out tee
90°elbow
ENVIRO Meridian
Concrete Wall
Wall framing
Wall
thimble
Termination cap
Vertical section of vent pipe
Horizontal frame
for thimble
Clean
out tee
90°elbow
ENVIRO Meridian
Wall strap
Installation

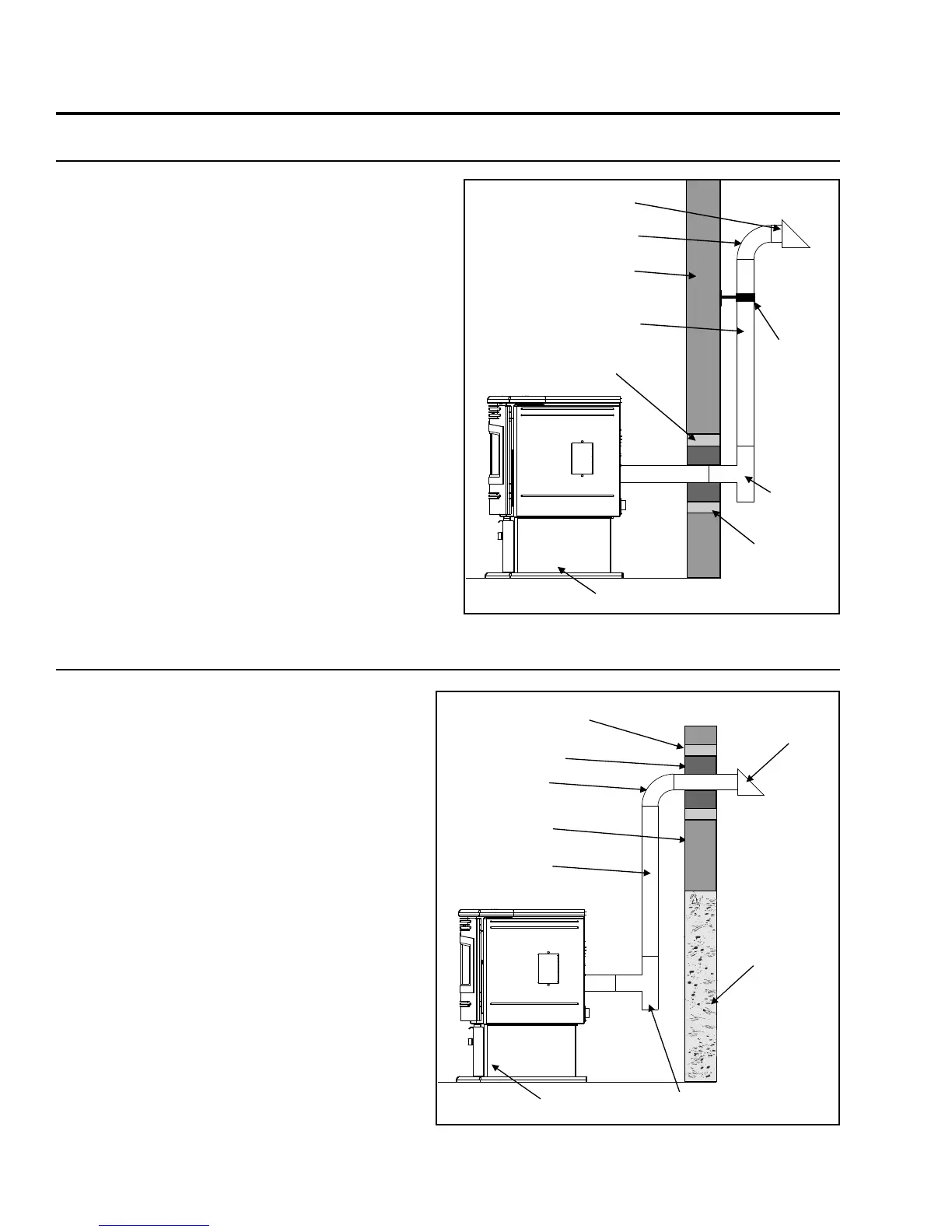

veRticaL RiSe With hoRizontaL teRmination inStaLLation (RecommenDeD) - fReeStanDing:
A 45° elbow with a rodent screen may be used
in place of the termination cap (or stainless steel
termination hood).
thRough concRete WaLL With veRticaL RiSe inStaLLationS - fReeStanDing:
A 45° elbow with a rodent screen may be used
in place of the termination cap (or stainless steel
termination hood).
This is the recommended installation to use if
there is a concrete or retaining wall in line with
exhaust vent on pellet stove.
The termination must be 12 inches (30 cm) from
the outside wall and 12 inches (30 cm) above the
ground.
Figure 21: Vertical rise with Horizontal Termination.
Figure 20: Through Wall with Horizontal Termination.
14
