Ground wire directly
connected to metal chassis.
Hearth Pad
Flooring
Steel Frame
1
/
4
" Lag bolts
securely fastened
Figure 12: Mobile Home Install Mounting.
mobiLe home inStaLLation - fReeStanDing:
● Secure the heater to the floor using the holes in the pedestal of the appliance.
● Ensure the unit is electrically grounded to the chassis of your home (permanently).
WARNING: Do not install in a room people sleep in.
CAUTION: The structural integrity of the manufactured home floor, wall and ceiling/roof
must be maintained
• Outside fresh air is mandatory. Secure outside air connections directly to fresh air intake pipe and
secure with three (3) screws evenly spaced.
Installation

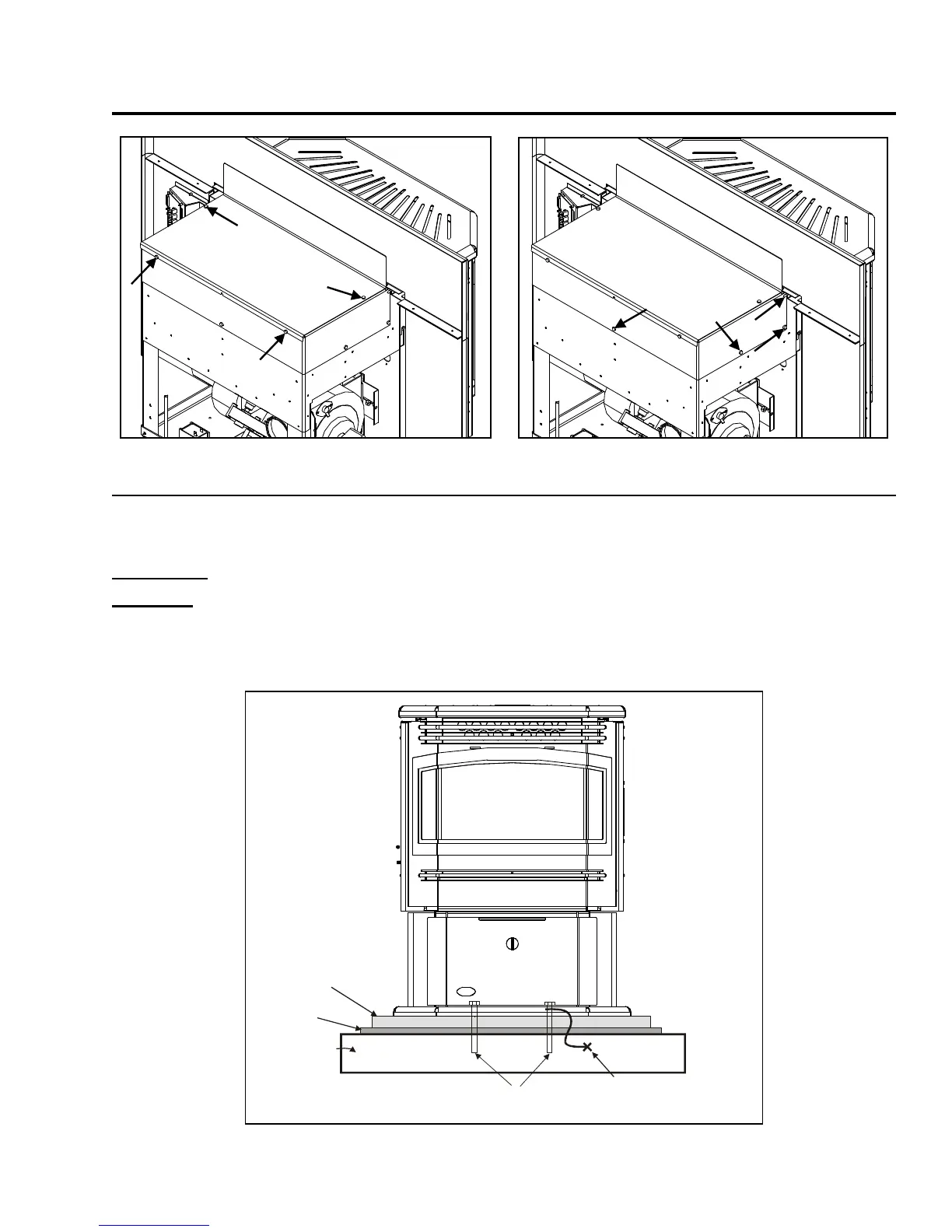

Figure 10: Hopper Cover Screw Placement. Figure 11: Hopper Extension Screw Placement.
