Enviro MERIDIAN Technical Manual

Installation
pLateD tRim inStaLLation:
TO AVOID PERSONAL INJURY DO NOT REMOVE OR REPLACE TRIMS WHEN PELLET STOVE IS HOT!
REMOVAL OF SIDE TRIMS:
When stove is off and cool, open the door. Remove the two (2) screws on the right cab side (at top and
bottom of front flange) and the two (2) screws on the left cab side (one above and one below hinge). The
cab sides have hinges at the back so they can swing open when the screws have been removed.
Remove the trims that will be replaced by unfastening the #8 hex nuts (four (4) for each piece of trim)
by hand. Carefully remove the trim from the studs.
Upper
Cabinet Trim
#8 Stud (x8)
Left Cabinet
Side
#8 Hex Nut (x8)
Lower
Cabinet Trim
Top Trim
#8 Stud (x6)
#8 Hex Nut (x6)
Hand Tighten Only
Top Front

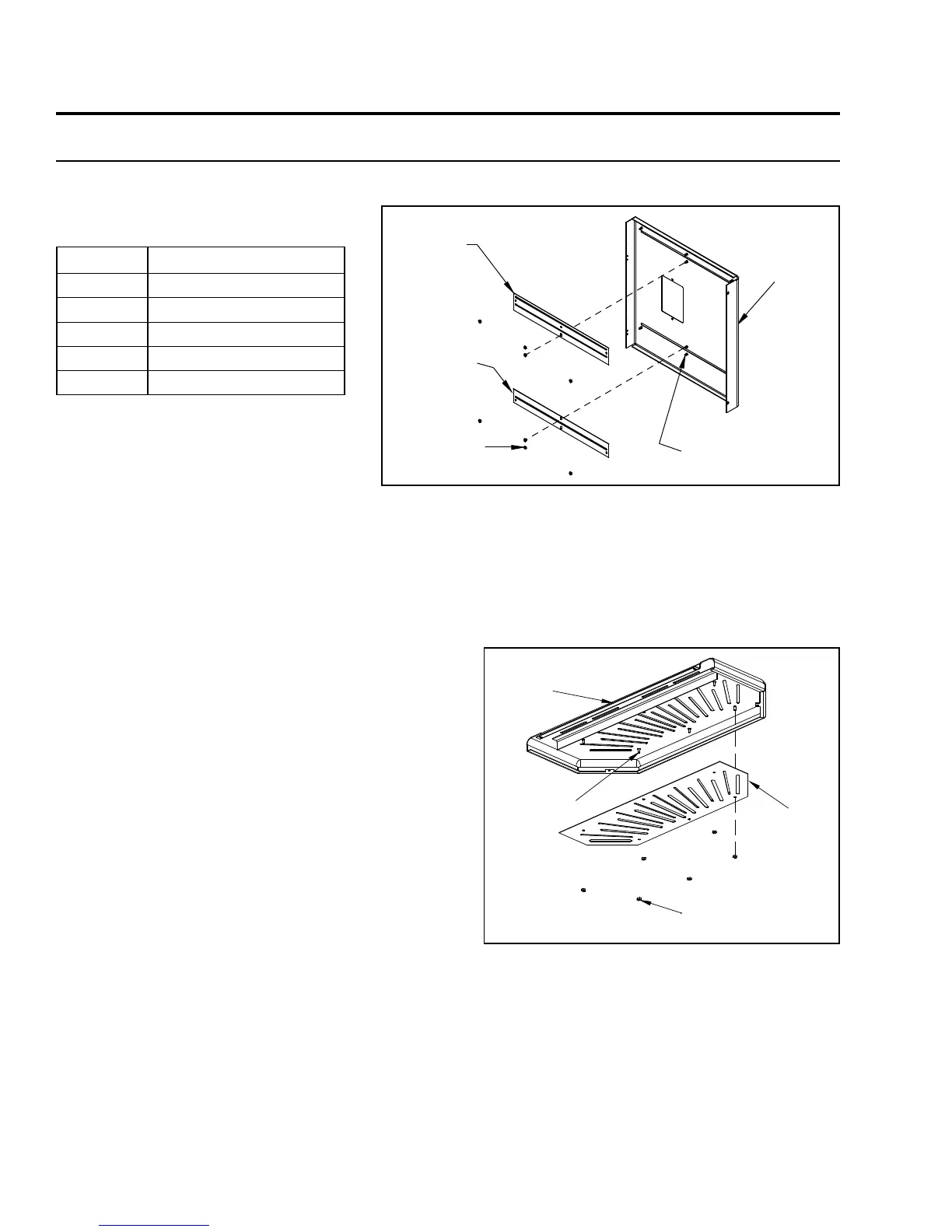

Figure 36: Top front with top trim
REPLACEMENT OF SIDE TRIMS:
Place the new trim pieces on their corresponding studs
and finger tighten the #8 hex nuts (four (4) for each
piece of trim). Refer to Figure 35.
Close both cab sides and replace the two (2) screws on
each side.
REMOVAL OF TOP TRIM:
With door open, undo the two (2) screws on the
underside of the top there are visible under the angled
corners. Open the hopper lid, remove the two (2)
screws that are found attached to the top under the
hopper lid. Pull top forward, lift the top front piece off
the stove and turn it over. Remove the six (6) #8 hex
nuts and pull the trim off the studs.
Figure 35: Right cab side with upper and lower cabinet trims.
KIT COMPONENTS:
Quantity Description
2 Upper Cabinet Trim
2 Lower Cabinet Trim
1 Top Trim
3 Louver
4 #8 nut plated (spares)
TOOLS REQUIRED:
● T-20 screwdriver ●
11
/32” socket
REPLACEMENT OF THE TOP TRIM:
Place the new trim on its corresponding studs (see Figure 36) and finger tighten the six (6) #8 hex
nuts.
Replace top front on top of the stove, remembering to hook the two (2) front tabs under the corresponding
tabs on the stove. Replace the two (2) screws on the top under the hopper lid then close lid. Replace the
two (2) screws under the corner lips above the door. Align top then tighten screws.
24
