Enviro MERIDIAN Technical Manual

Rain cap
Storm collar
Seal plate
(cover plate)
Existing masonry
flue
Vent pipe (single
wall stainless flex
pipe or solid PL
vent)
Fireplace damper
location
Clean out tee
Existing fireplace
Flexible vent
connector (use this
5' [1520 mm] section
of pipe to vent past
fireplace damper or
small shelf)
1. Lock fireplace damper in the open
position.
2. Install a positive flue connector at the
fireplace dampers.
3. Connect a clean-out tee or a 90° elbow to
the exhaust pipe.
4. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.
Floor
Protection
Combustible FloorMasonry Fireplace
Min 6"
(150 mm)
Mantel
Minimum 8" (20 cm)
from top of stove
Damper Removed
or Fastened Open
Clean-out
Fresh-air intake
should com from
chimney. If holes
a
lready exist fresh-air
intake can be taken
through back of the
fireplace or through
the ash dump.
Installation
heaRth mount inStaLLation - fReeStanDing:

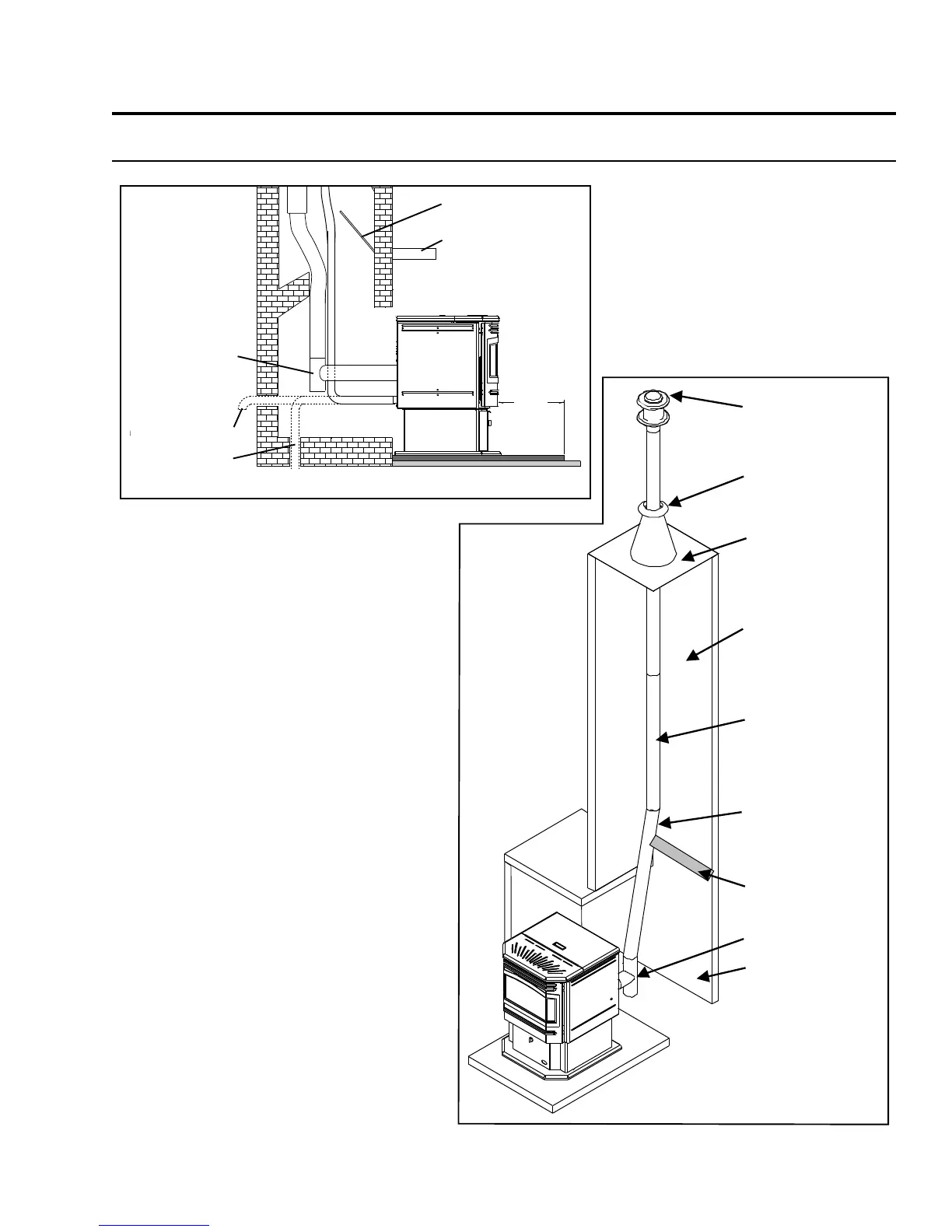

Figure 24: Hearth Mount - Side View.
Figure 25: Hearth Mount - Over View.
17
