Enviro MERIDIAN - Through Wall Vertical Installation with Exhaust Blower - Freestanding

Installation
THROUGH WALL VERTICAL INSTALLATION WITH EXHAUST BLOWER - FREESTANDING:
Refer to INSTALLATION - INSTALLATION WITH EXTERIOR MOUNTED EXHAUST BLOWER - FREESTANDING and INSTALLATION -
OUTSIDE VERTICAL INSTALLATIONS - FREESTANDING. Ensure that vent pipe is properly secured to wall using wall
straps. Maintain clearances to combustibles on vent pipe as well as unit.

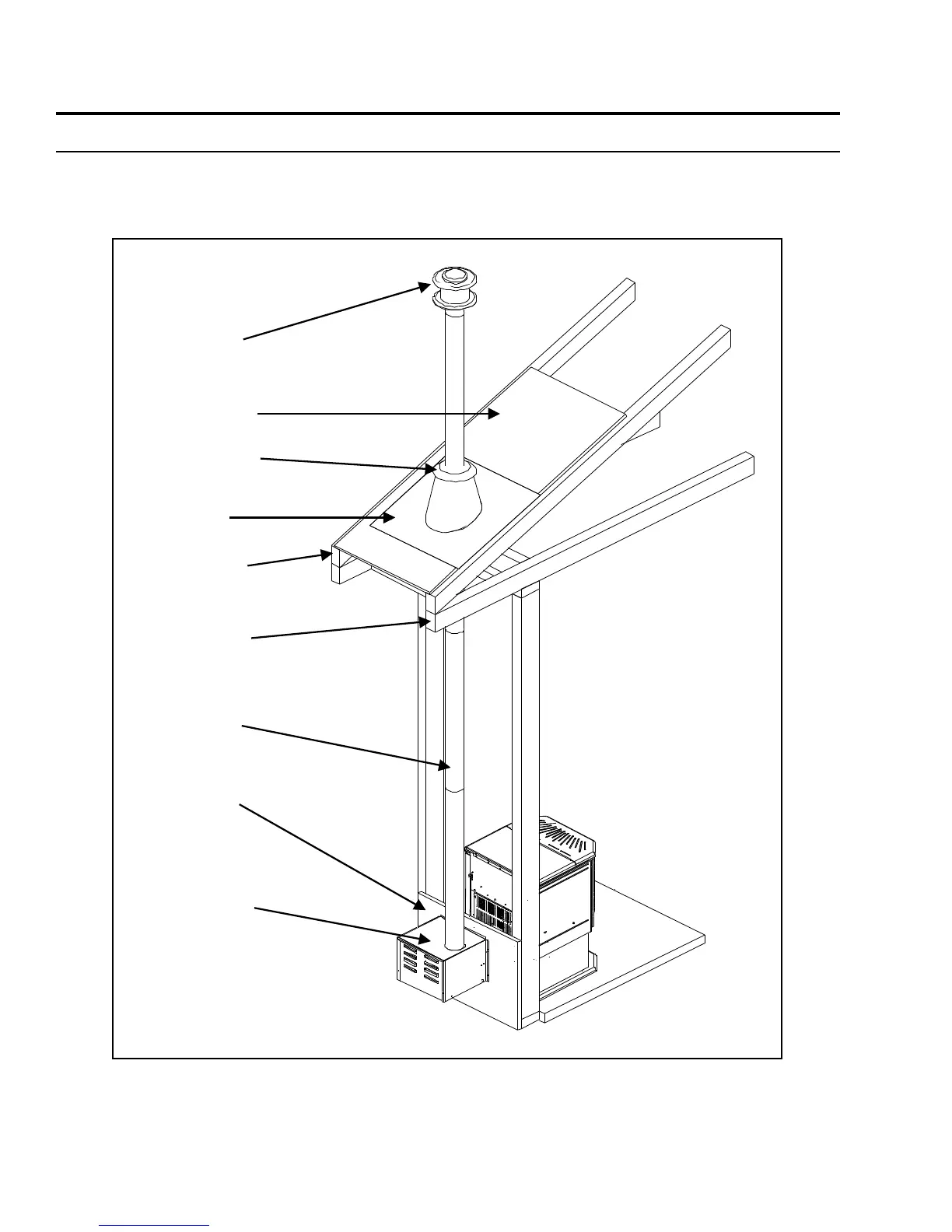

Rain Cap
Roof sheathing
Storm collar
Roof flashing
Roof rafters
Ceiling joists
Vent Pipe
Exterior wall
sheathing
Outside vent
termination
Figure 33: Exhaust Blower Installation; Vertical Termination.
26
