Enviro Water Products Pro Series Water Filter and Salt Free
Softening Systems
© 2014 Enviro Water Solutions LLC
3060 Performance Circle, Suite 2. DeLand, FL 32724
Rev B
Page 10
www.envirowaterproducts.com
Whole House Water Filter Tank Installation
1. Level the Enviro Water Products Whole House Water Filter.

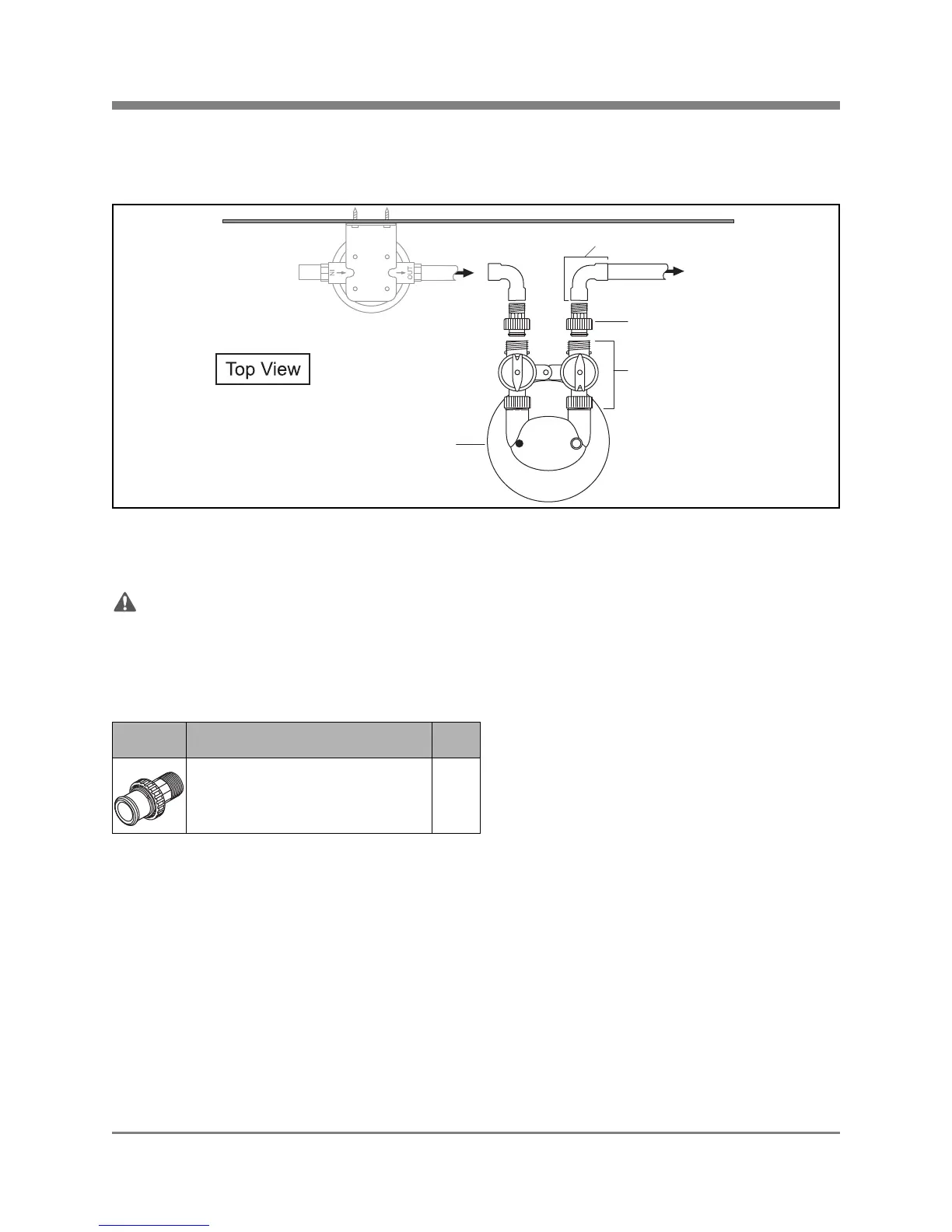

Figure 7
2. Determine the size and material of your incoming water supply line from the Pre-Filter System and
choose the appropriate plumbing required to adapt to the 1” Male NPT Assembly.
Do not over-tighten any of the fittings during installation.
Table 2: Bypass Valve Fittings
Note: The fitting below is designed with a ¼
" give to allow for proper pipe alignment. It will not leak and
is intended to have some flexibility.
3. Install the fitting onto the upflow and downflow inlet sides of the Bypass Valve. Follow the diagram
supplied with the fitting.
4. Connect the incoming water supply from the to the fitting on the upflow inlet side of the Bypass
Valve.
5. Connect the outgoing water supply to the downflow inlet side of the Bypass Valve.
Part Description Qty.
1" Plastic Male NPT Assembly:
V3007-04 WS1 Fitting 1" Plastic Male NPT
Assembly (2): O-Rings (2), Split Rings
(2), and Connectors (2)
1
bag
UPFLOW
INLET
DOWNFLOW
INLET
Pre-Filter
Incoming
Water
Supply
PVC Fitting*
Bypass
1" NPT Assembly
Valve
Whole House
Water Filter
Outgoing
ater to
House
W
*Customer supplied,
choose appropriate connection
To Next Page
