ENVO D35 | ST EBIKE MANUAL | VERSION 1.0 26
4.5.6. PEDAL INSTALLATION
• Take the pedals out of the box
• Apply a small amount of grease to the screw portion of
the pedal
• Look for the letters displayed on the head of the screw
“L” indicates left, and “R” indicates right Figure 4P
• Tighten the pedals using a size 15mm wrench
• Tighten the right pedal in a clockwise motion Figure 4Q
• Tighten the right pedal in an anti-clockwise motion
4.5.7. SADDLE INSTALLATION
• Apply some grease to the seat tube
• Insert the seat post into the tube Figure 4R
• Adjust to preferred height
• Tighten the seat clamp
4.5.8. BATTERY
• Initially, the battery is sent to you in the off position
• Insert the key, unlock the battery and remove (see
battery removal and installation section 2.6)
• On the underside of the battery, just below the handle,
there is a small toggle switch provided that indicates “I”
or “O”
• “I” indicates ON
• “O” indicates OFF
• Press the switch to the ON position and place the battery
back and lock it Figure 4P

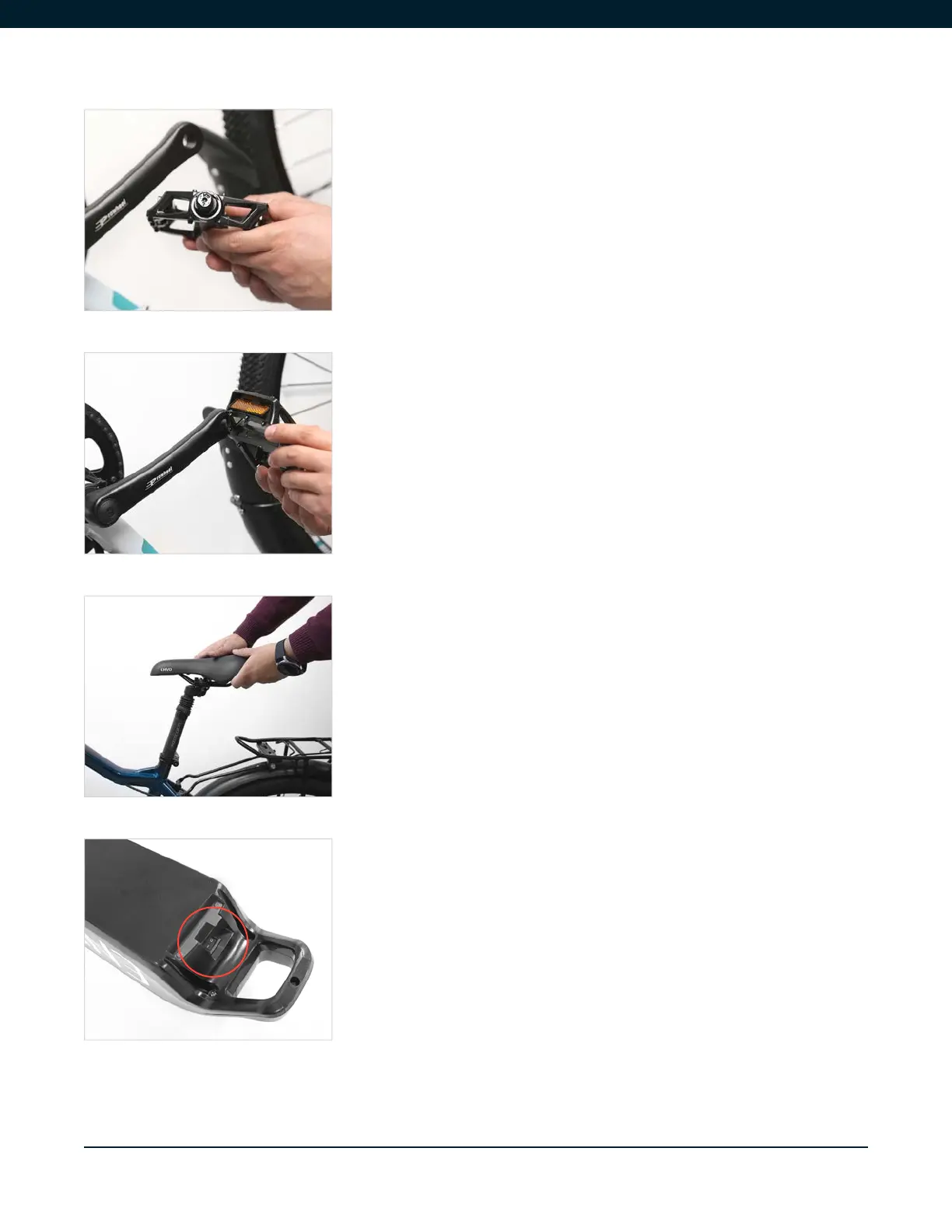

Figure 4P
Figure 4Q
Figure 4R
Figure 4S
