Load Wheels-Removal and Installation
Make sure the lifting equipment is solid and
secure, and the load capacity should be
greater than the total weight of the vehicle.
Place a wooden wedge under the chassis
near load wheel, make the load wheel o the
ground.
When replacing wheels, be sure that the truck
won't tilt.
Remove the coiled elastic cylindrical pin(1)
within the wheel bridge with an ejector pin of
4mm in diameter;
Turn the wheel bridge to vertical direction,
knock out the wheel pin shaft(3) from side, and
remove the load wheel and bearing assembly;
Remove the bearing(5) of load wheel(4) with
hammer and jacking equipment.
1.2.6
CAUTION
CAUTION

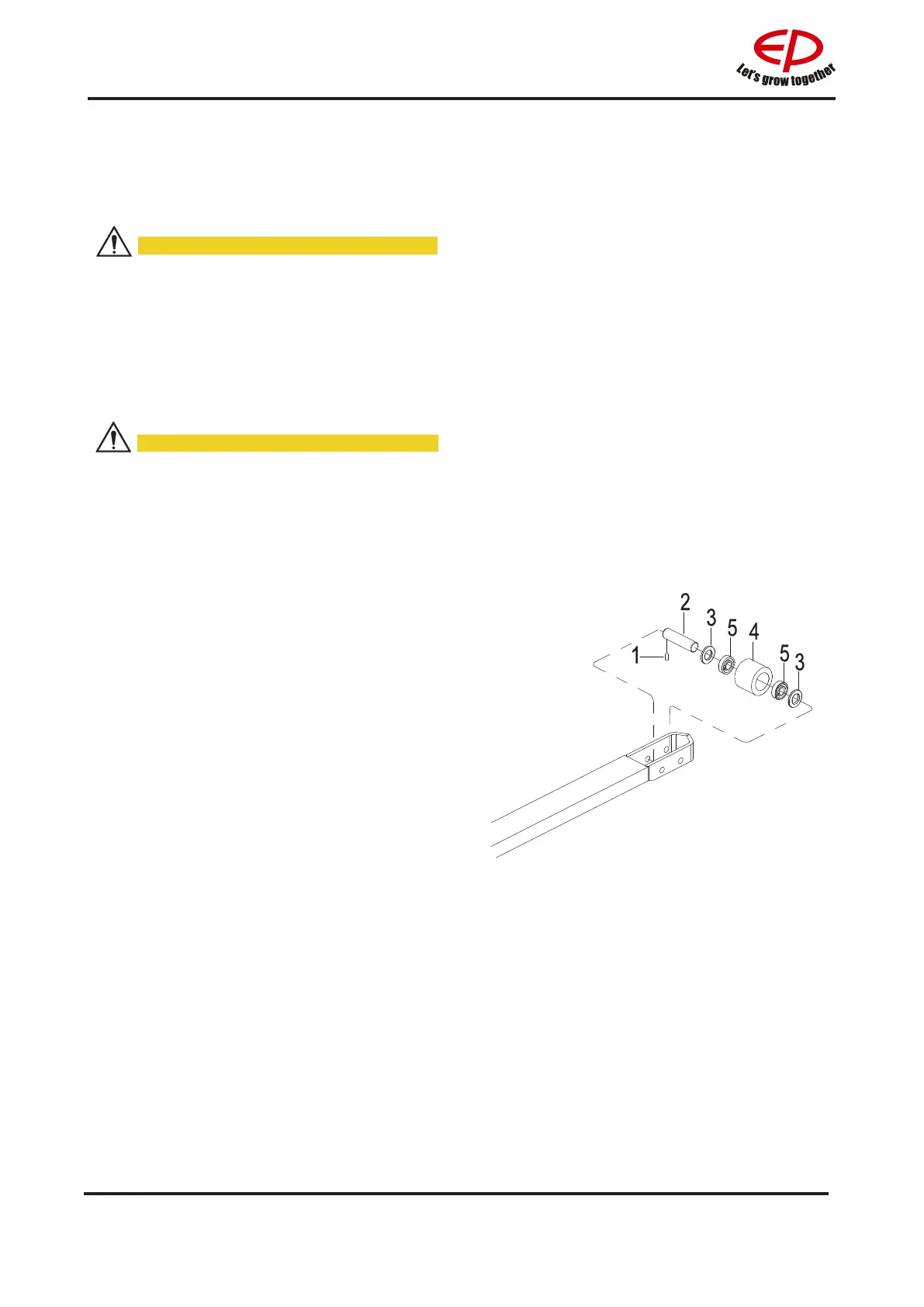

Loosen the set screw (1) in the fork leg with a
wrench;
Knock out the wheel pin shaft (2) from side,
and remove washers(3), load wheel and
bearing assembly;
Remove the bearing (5) of load wheel (4) with
hammer and jacking equipment.
Removal
Lift the vehicle carefully with lifting equipment
through the lifting holes at back;
