EPH Controls EMBER - System Architecture Overview

7
RFRP-HW-OT Thermostat
RF1A-OT Branch Receiver
RFRP-OT Thermostat
RF1A-OT Hub Receiver
RFRP-OT Thermostat
RF1A-OT Branch Receiver
RFRP-OT Thermostat RF1A-OT Receiver GW03 Gateway EMBER App Cloud
Cloud
EMBER App
GW03 Gateway
Note: A maximum of 6 thermostats can be used in the system.

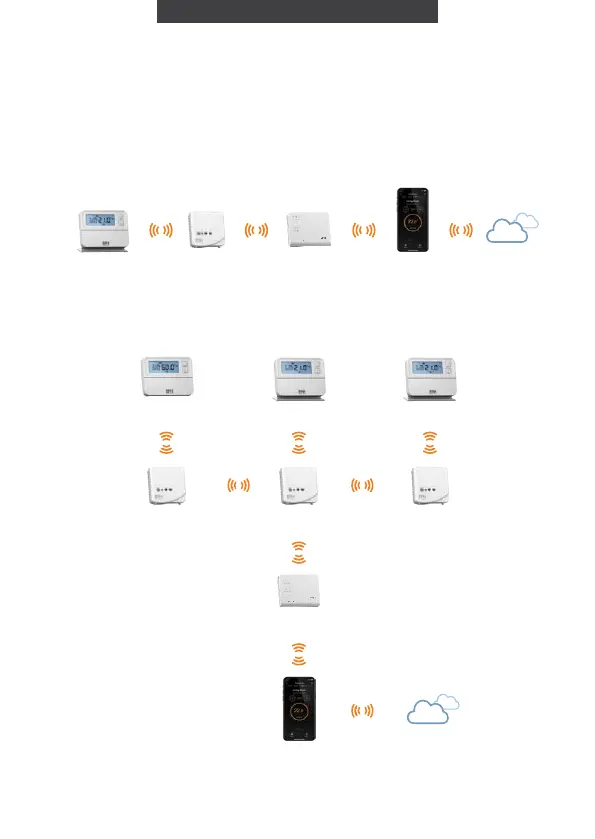

System architecture
To optimise battery life, the end to end communication can take up to 3 minutes .
Example A Single Zone System
Example B Multi Zone System
