Epilog Laser Fusion Pro 32 Manual

16000 - X-Axis Replacement
4

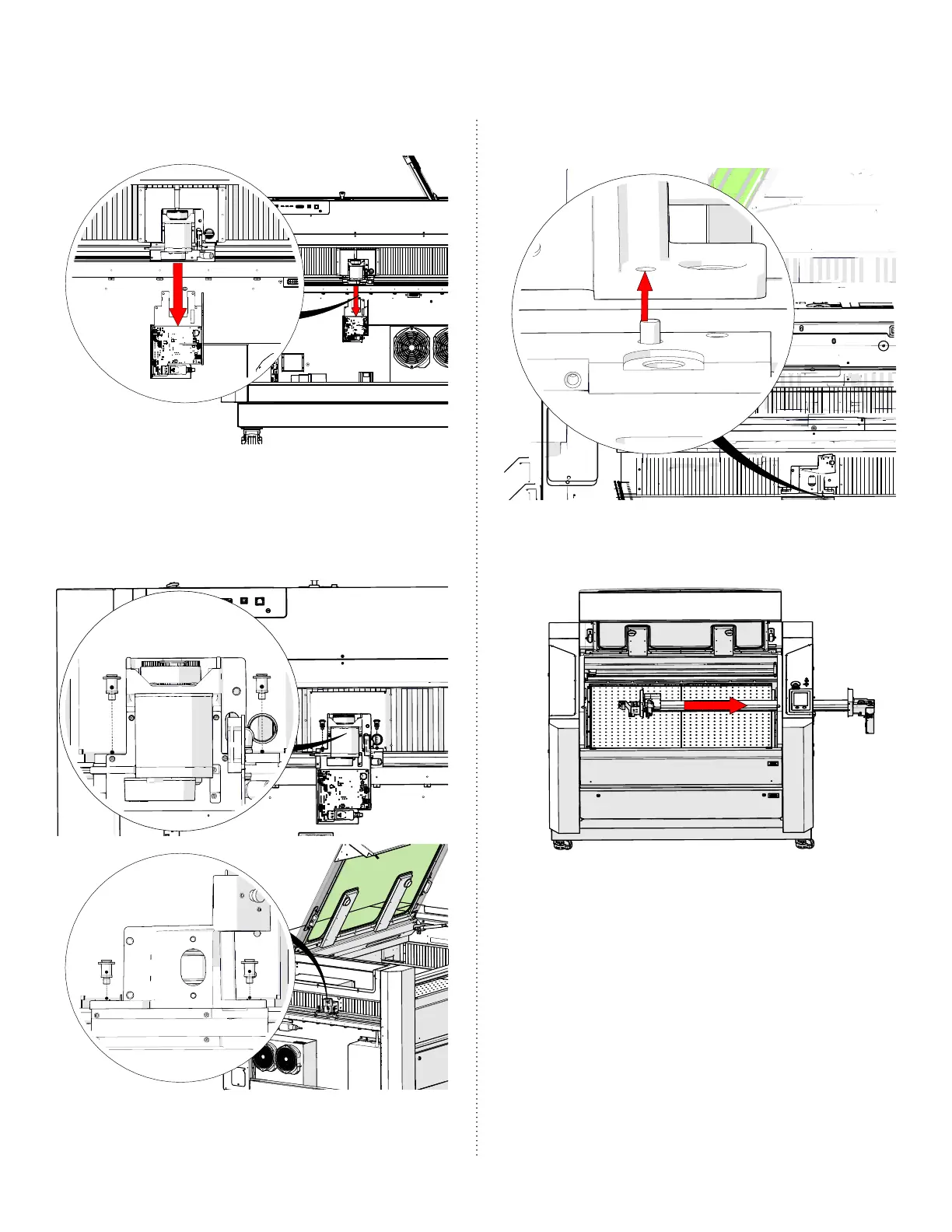

13. Remove the x-axis drive board
housing:
14. Remove and or loosen the four (4)
5/32” fasteners that secure the x-axis
assembly to the y-axis bearings. There
are two (2) on the right side and two (2)
on the le side:
15. Li the x-axis assembly upwards to
clear the locator pins on the le and
right y-axis bearing blocks:
16. Slide the x-axis assembly out of the
engraver through the right side:
