Epilog Laser Fusion Pro 32 Manual

16000 - X-Axis Replacement
5

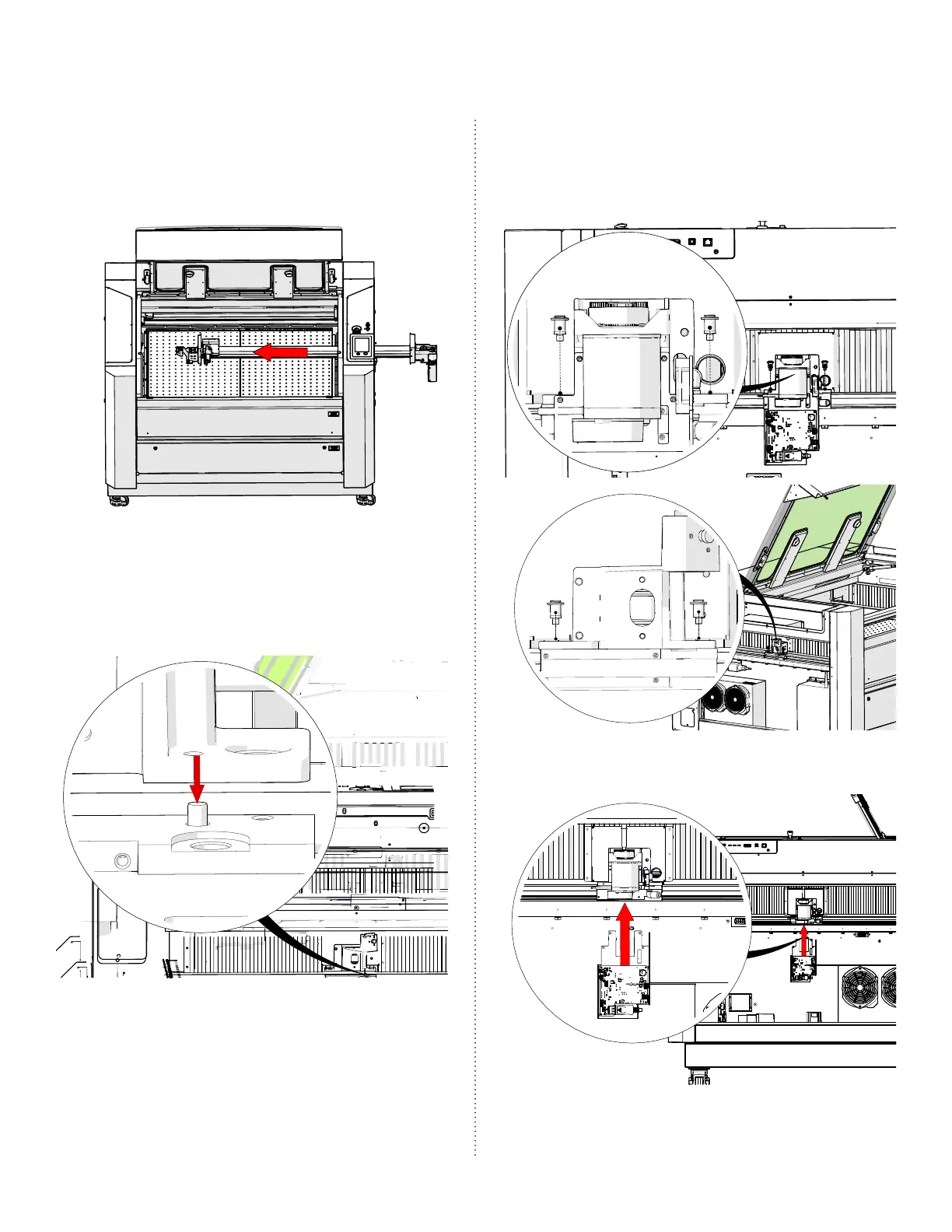

X-Axis Assembly Installation
1. Slide the x-axis assembly into the
engraver through the right side of the
machine:
2. Place the x-axis assembly on the
y-axis bearing blocks, ensuring that
the locator pins enter the upper
bearing block assembly:
3. Install and/or tighten the four (4)
5/32” fasteners that secure the x-axis
assembly to the y-axis bearings. There
are two (2) on the right side and two (2)
on the le side:
4. Position the x-axis drive board housing
over the mounting holes:
