Epilog Laser Fusion Pro 32 Manual

16000 - X-Axis Replacement
7

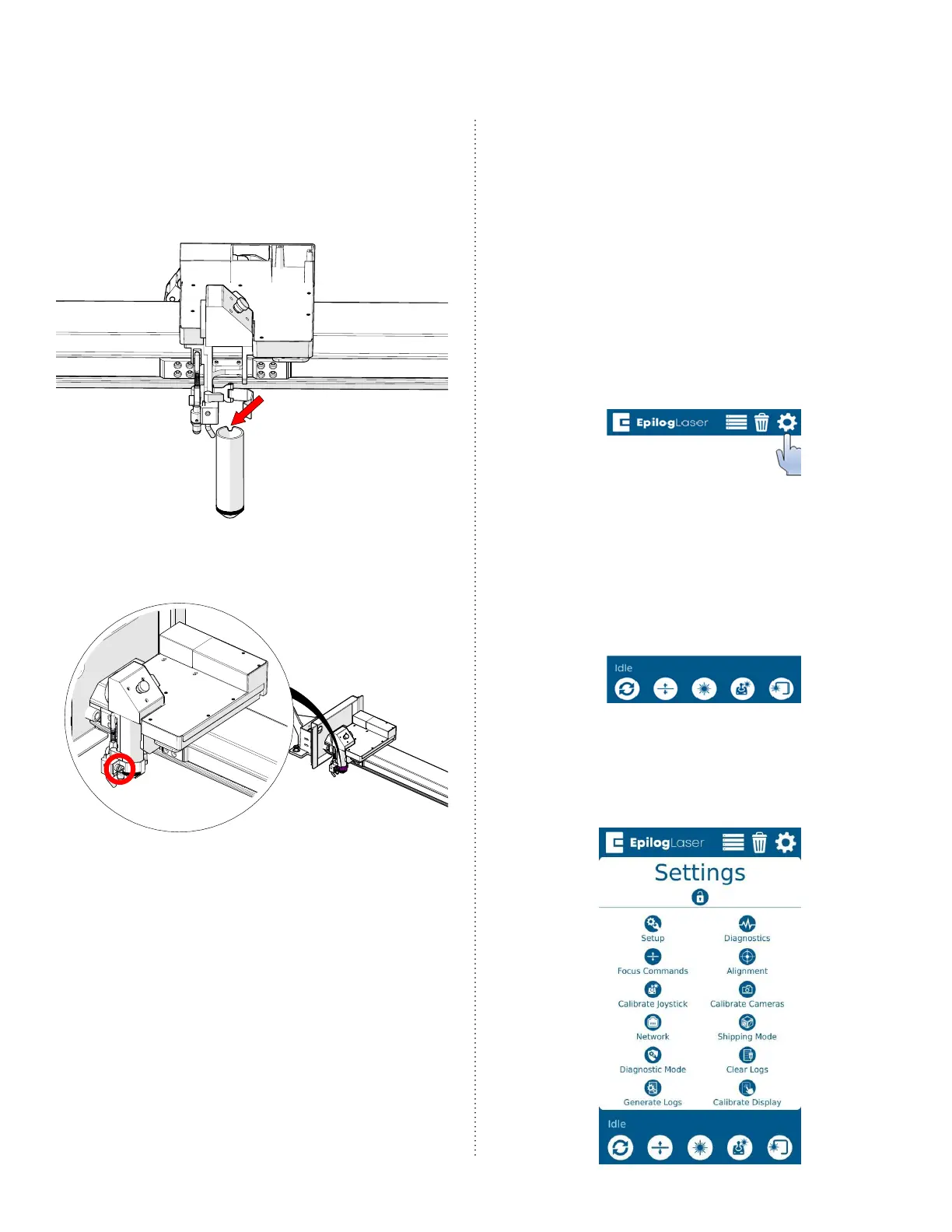

10. Position the lens tube in the lens
assembly, ensuring that the notch
in the tube faces the rear of the
engraver. Make sure to hold the lens
tube aer inserting to ensure that it
does not fall:
11. Tighten the Phillips screw on the lens
tube retaining collar:
12. Replace both the le and right panels
of the engraver.
13. Reconnect to power and turn on the
engraver.
Updates and Programming
The x-axis assembly contains many
components, including circuit boards,
cameras, and a motor. Further
procedures are required.
Updating the Carriage
Camera
1. On the display, press the gear icon to
enter the Settings menu:
2. Press and hold the word “Settings” that
appears at the touch of the touchpad
to gain access to the Advanced
Settings menu:
