PRO 32 & 48 X-AXIS ASSEMBLY
5

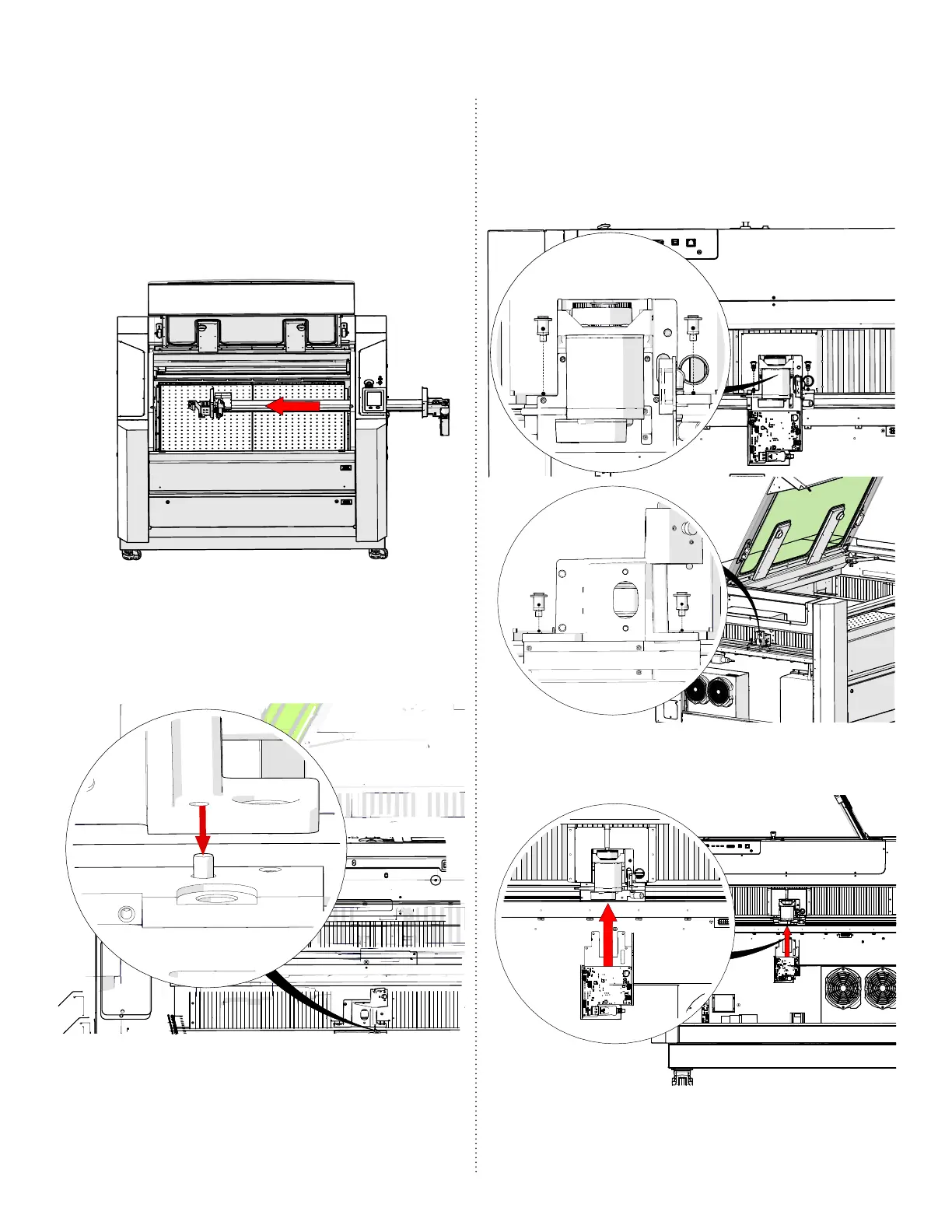

X-Axis Assembly Installation
1. Slide the x-axis assembly into the
engraver through the right side of
the machine, taking care to clear the
carriage assembly through the opening
without damage:
2. Place the x-axis assembly on the y-axis
bearing blocks, ensuring that the
locator pins enter the upper bearing
block assembly:
3. Install and/or tighten the four (4)
5/32” fasteners that secure the x-axis
assembly to the y-axis bearings. There
are two (2) on the right side and two (2)
on the le side:
4. Position the x-axis drive board housing
over the mounting holes:
