Epiroc HM Series User Manual

Safety and operating instructions
20 © Construction Tools GmbH | 3390 5149 01 | 2020-09-22
Original Instructions
4 Transport
WARNING Hoist tipping over / hydraulic attach-
ment falling
The hydraulic attachment is heavy. The hoist/lifting
equipment and/or hydraulic attachment tipping over or
falling may cause serious injury and material damage.
u Only transport the hydraulic attachment with lifting
equipment with the right load-bearing capacity for the
weight of the hydraulic attachment.
u Only lift and secure the hydraulic attachment with lift-
ing gear (ropes, chains, shackles etc.) with the right
load-bearing capacity for the weight to be lifted.
u Make sure that there is nobody near or under the
suspended hydraulic attachment.
n
For transporting use four adjustable eyebolts with
washer and nut (3363106708) as lifting lugs. Stan-
dard eyebolts (DIN 580) are not permissible.
4.1 Transport using a crane
n
Insert the four adjustable eyebolts from above into
the four holes (see figure) in the top plate.
n
Slide one washer on each screw thread and screw
the nuts on.
n
Tighten the nuts.
n

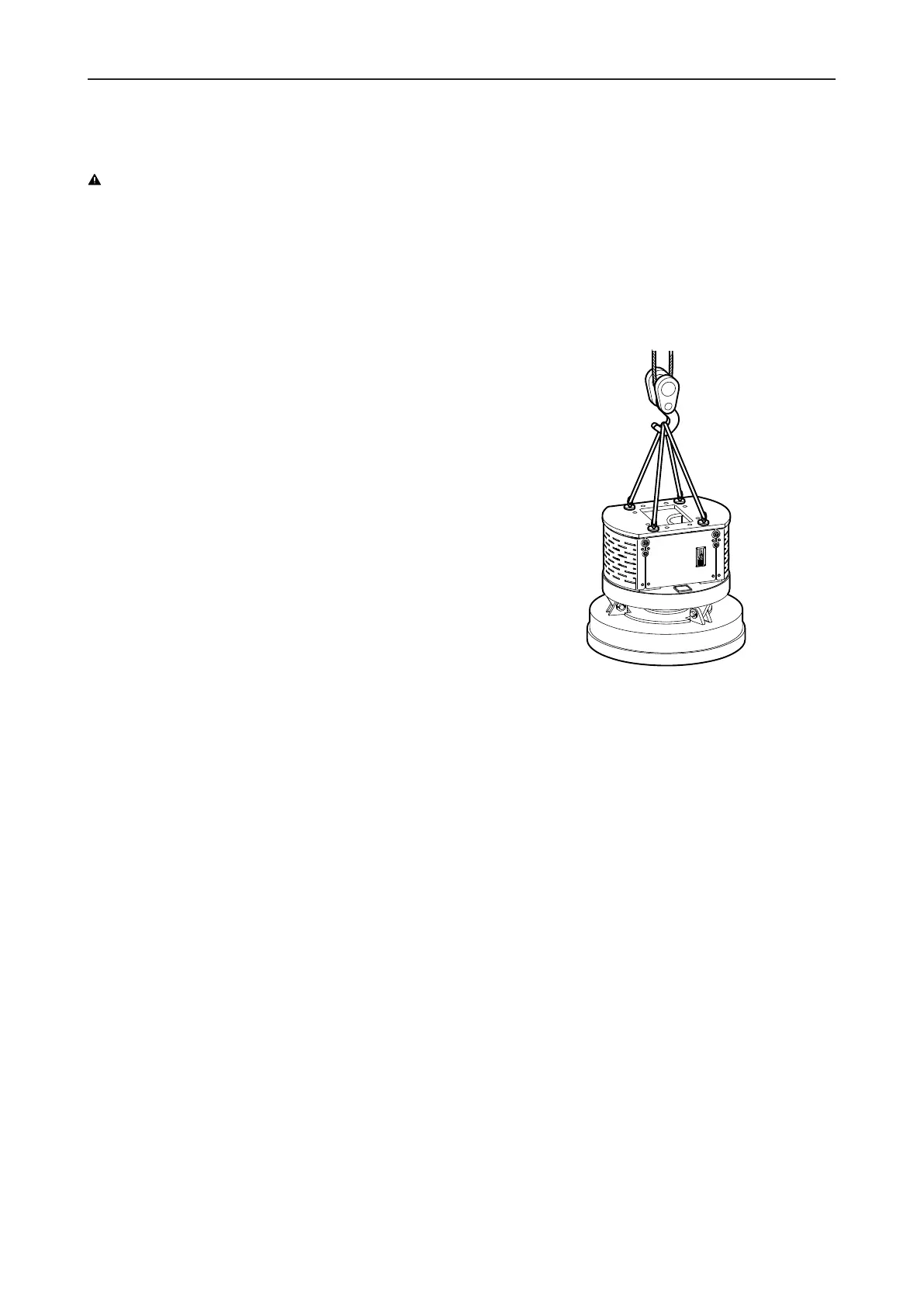

Attach ropes or chains to the adjustable eyebolts as
shown in the following illustration.
%
50
60
70
80
90
100
n
Slowly lift the Hydro Magnet.
n
Place the Hydro Magnet on level ground.
n
Turn the nuts from the adjustable eyebolts.
n
Remove the washers from the screw threads and the
adjustable eyebolts from the top plate.
n
Store the adjustable eyebolts, washers and nuts in a
safe place.
