2.1.2 Master variants with thermoblock (64+32 wells)
•Mastercycler nexus X2
•Mastercycler nexus GX2

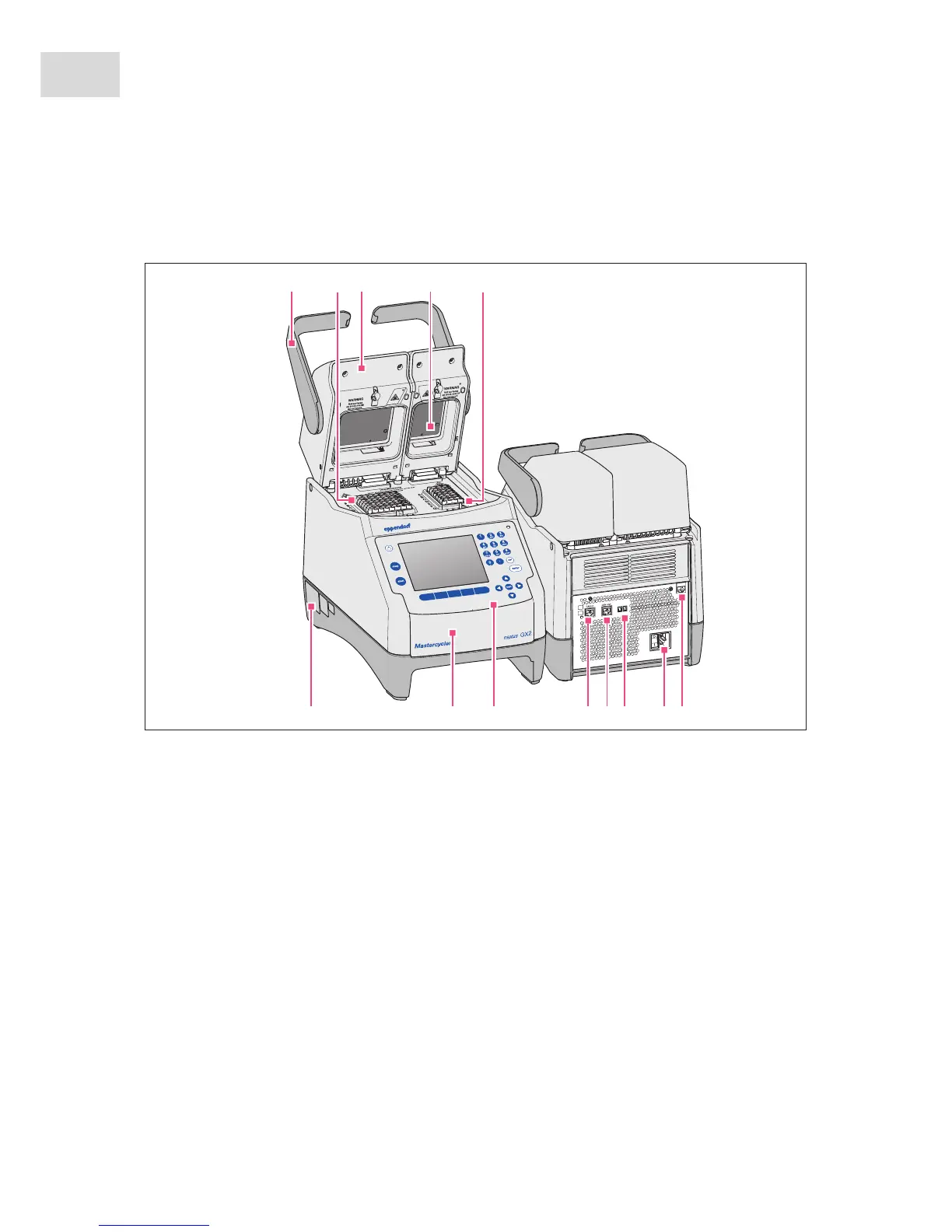

Abb. 2-2: Front and rear view
Fig. 2-2: Front and rear view
1 Lid handle
For opening, closing, locking and unlocking the
heated lid.
2Thermoblock with 64 wells
3 Heated lid
4 Heating plate
5Thermoblock with 32 wells
6 Ethernet port
7Mains connection socket with power switch
0 = switched off, I = switched on.
8Eco and Term switches
9CAN out port
10 CAN in port
11 Control panel
See detailed drawing (see p. 16)
12 Flap
USB port cover.
13 Name plate
