Basic Operation

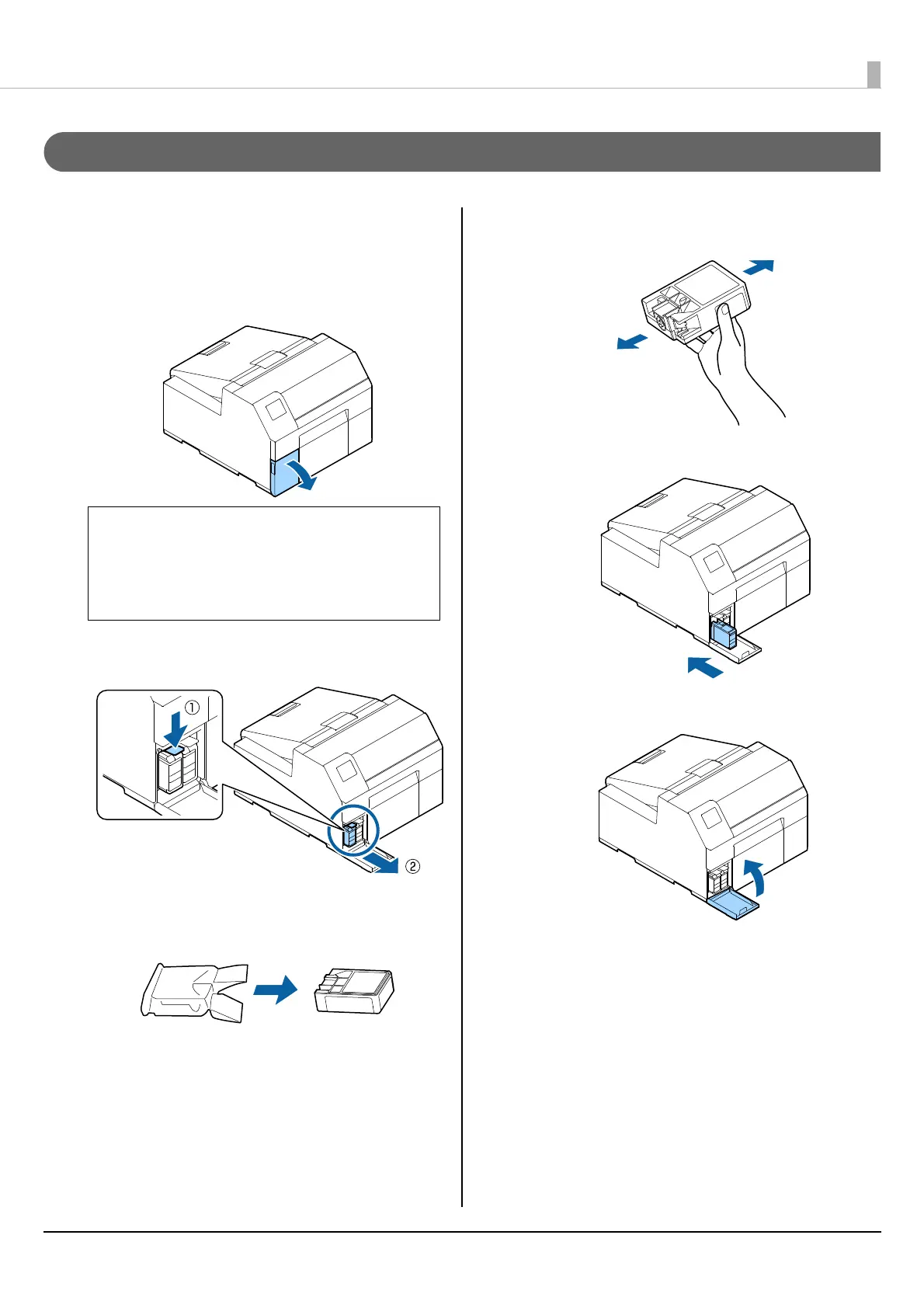

How to Replace the Ink Cartridges

The procedure below is for replacing the BK cartridge.

Follow the same procedure for replacing the other color

cartridges.

Open the left ink cartridge cover.

Press the lever down to remove the used ink

cartridge.

Open the bag and take out the new ink

cartridge.

Shake the ink cartridge as shown in the figure

below.

Install the ink cartridge in the slot.

Close the ink cartridge cover.

Q NOTE

For replacing cyan or yellow cartridge, open

the right ink cartridge cover.
