6 DM-D500 Installation Guide
English

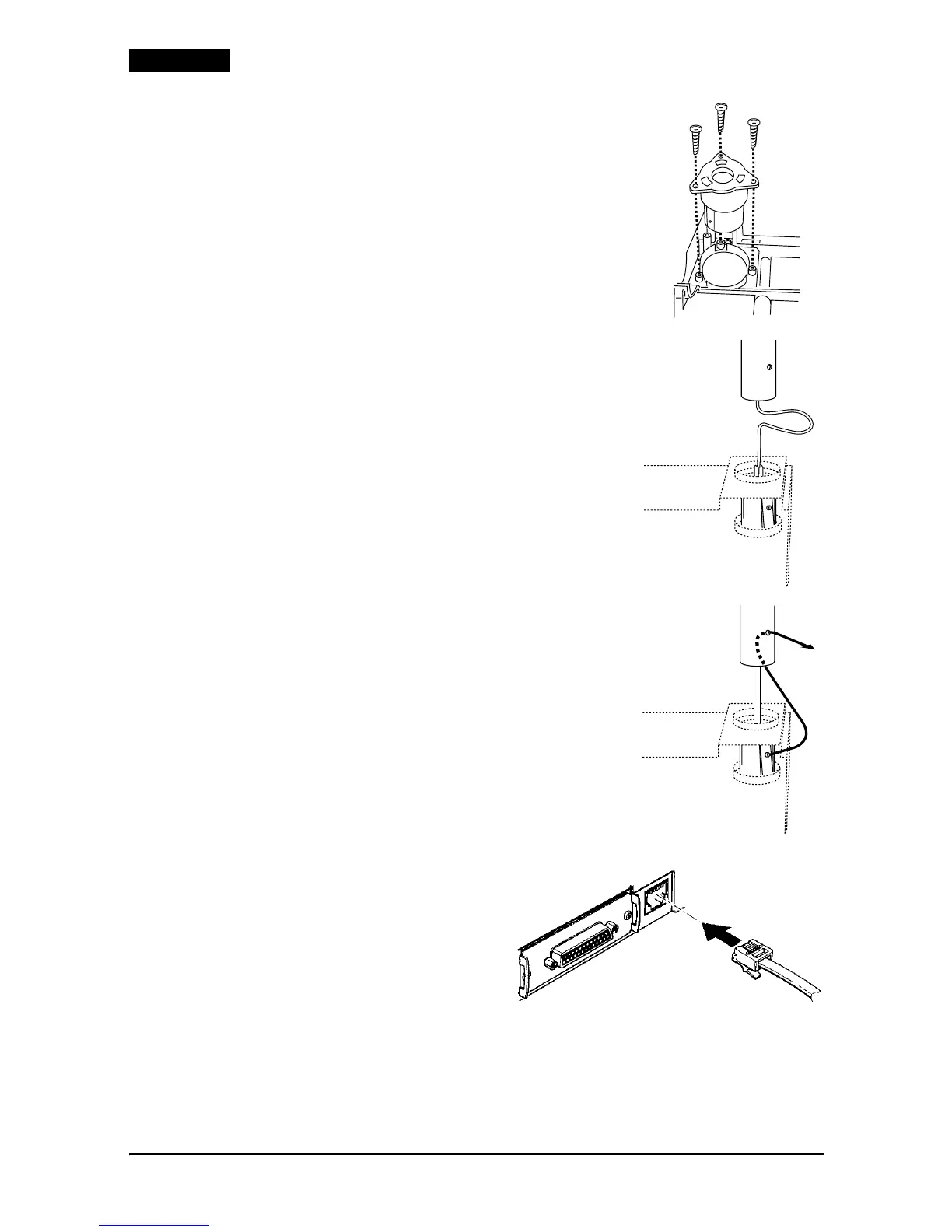

2. Attach the base to the setting position on
the TM printer, and secure it with the
screws as shown in illustration 7.
3. Pass the cable for the DM-D500 through
the base as shown in illustration 8.
4. Insert the tab on the base into the hole on
the support as shown in illustration 9
until you feel it click.
5. Connect the cable for the
DM-D500 to the DM
connector on the TM printer
as shown in illustration 10.
7
8
9
10
