DM-D500 Installation Guide 5
English
Assembling
Attaching to the TM-H5000II or TM-J8000
The DM-D500 can be attached directly to a TM-H5000II or
TM-J8000 printer using the “DM-D pole unit for TM printers
(Type
B)” (DP-503).

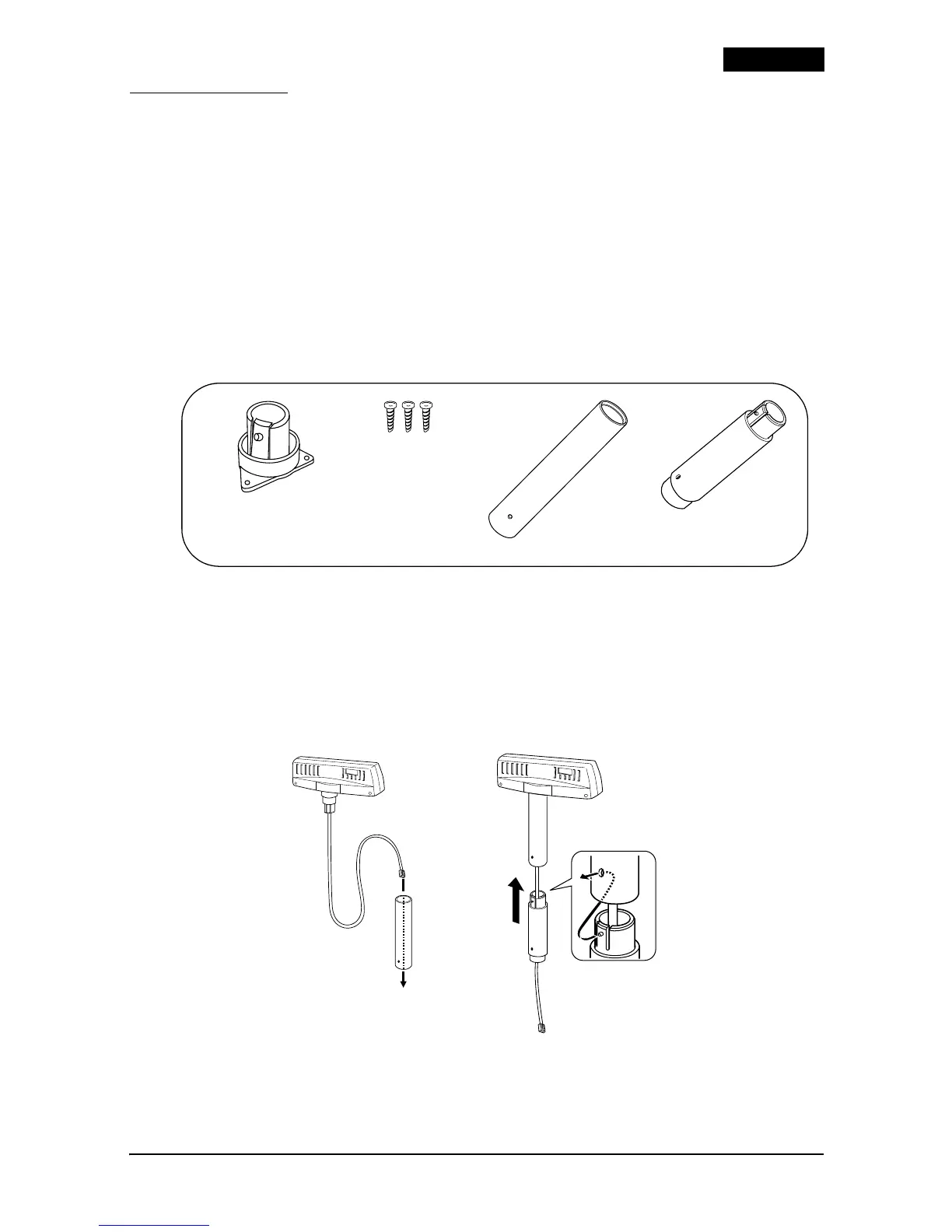

Required items
The items shown in illustration 4 are used to attach the DM-D500 to
a TM-H5000II or TM-J8000 printer. These items are packed with the
“DM-D pole unit for TM printers (Type
B)” (DP-503).
Assembling
1. Pass the cable for the DM-D500 through support C, and attach
support
C to the DM-D500 as shown in illustration 5. When
using support
B for extension, insert the tab on support B into
the hole on support
C as shown in illustration 6 until you feel it
click.
support B
(for extension)
fixing screws
base
4
support C
when using support B
for extension
56
To Next Page
