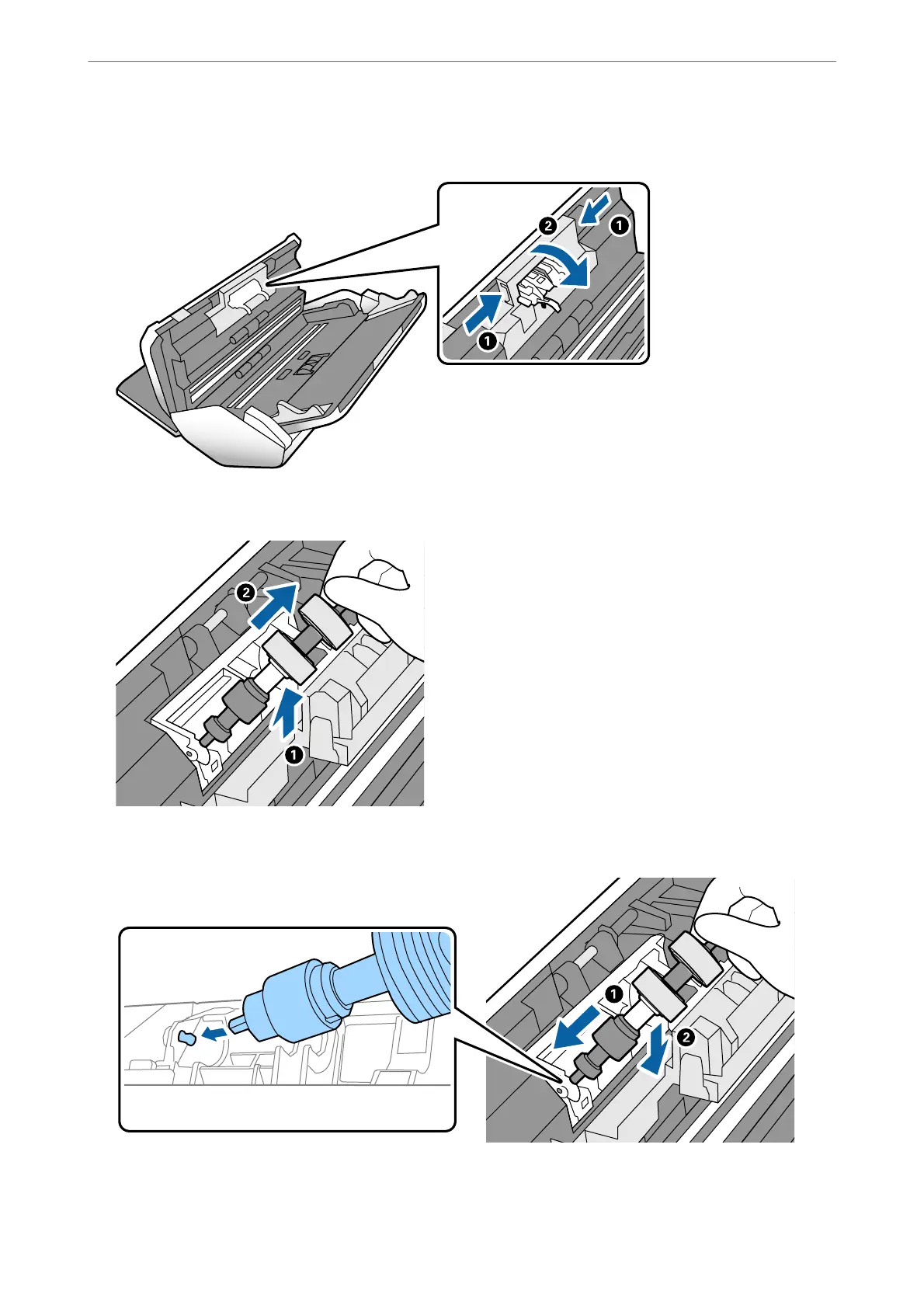

Push the hooks on both ends of the Separation Roller cover to open the cover.

Li the le side of the Separation Roller, and then slide and remove the installed Separation Roller.

10.

Insert the new separation roller axis into the hole, and then lower the roller.

Maintenance

Replacing the Roller
