Epson EB-1785W User Manual

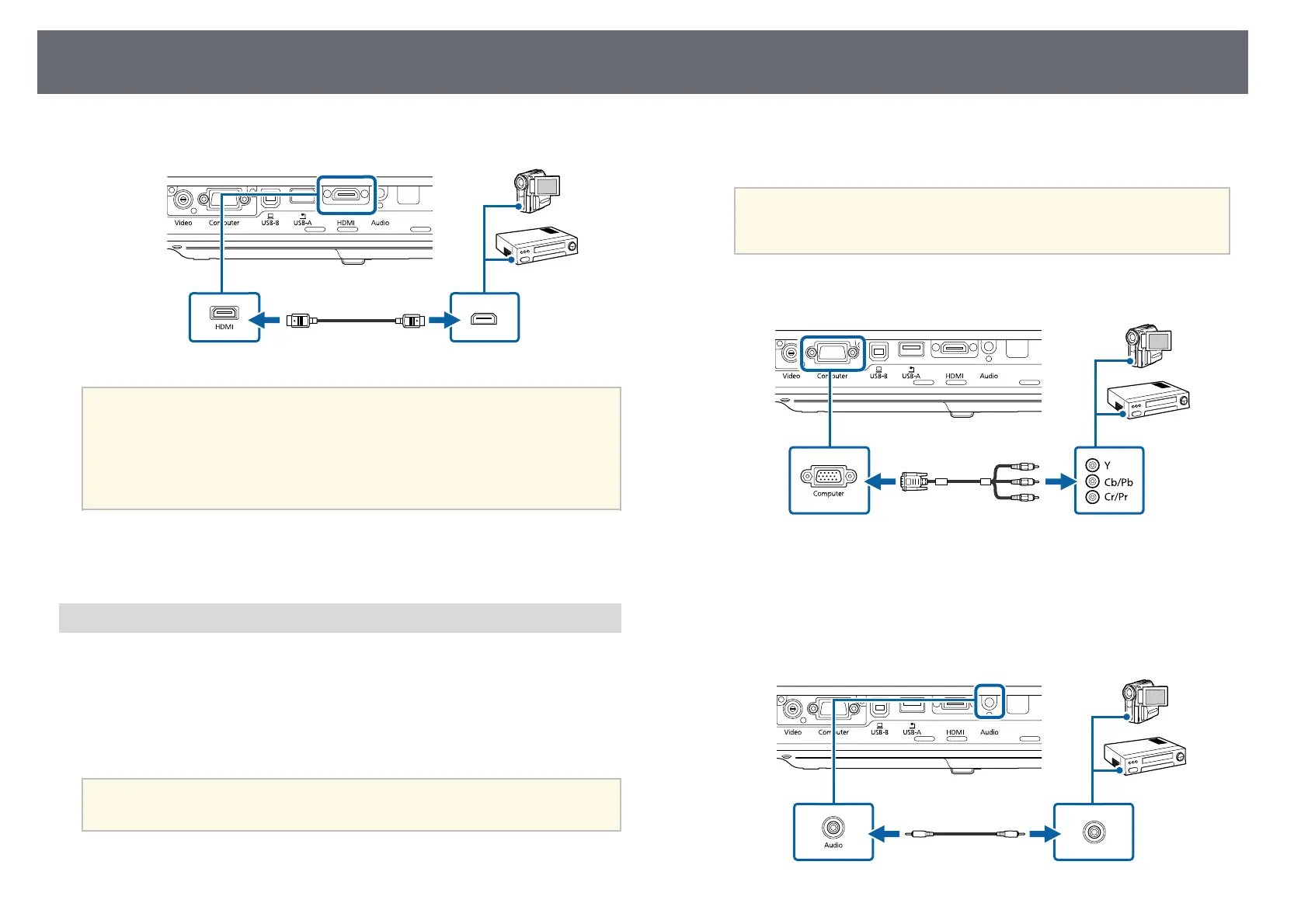

Projector Connections
24
b
Connect the other end to the projector's HDMI port.
a
If you have problems hearing audio through the HDMI connection,
connect one end of a commercially available 3.5 mm stereo mini-jack
audio cable to the projector's Audio port and the other end to your
video source's audio out port. Select the audio input port you
connected to in the projector's Extended menu.
s Extended > A/V Settings > HDMI Audio Output
gg Related Links
• "Projector Setup Settings - Extended Menu" p.123
Connecting to a Component-to-VGA Video Source
If your video source has component video ports, you can connect it to the
projector using a component-to-VGA video cable. Depending on your
component ports, you may need to use an adapter cable along with a
component video cable.
You can play sound through the projector's speaker system by connecting a
stereo mini-jack audio cable.
a
• Make sure the audio cable is labeled "No resistance".
a
Connect the component connectors to your video source's color-coded
component video output ports.
a
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
an adapter, connect these connectors to your component video
cable.
b
Connect the VGA connector to a Computer port on the projector.
c
Tighten the screws on the VGA connector.
d
Connect the audio cable to your video source's audio-out ports.
e
Connect the other end to the projector's Audio port.

Epson EB-1785W Specifications

General

Matrix size	0.59 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	0.8 - 8.2 m
Projection distance (wide)	0.7 - 6.8 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
Projector brightness (economic mode)	1900 ANSI lumens
Noise level	39 dB
Password protection	Yes
Noise level (economic mode)	30 dB
Throw ratio	1.04 - 1.26:1
Focal length range	13.52 - 16.22 mm
Aperture range (F-F)	1.58 - 1.7
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Lamp power	214 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	7000 h
Built-in display	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.34 W
Power consumption (typical)	295 W
Power consumption (economy mode)	208 W
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	0
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Standard interfaces	HDMI, NFC, USB, VGA, Wireless LAN
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA

Weight and Dimensions

Depth	213 mm
Width	292 mm
Height	44 mm
Weight	1800 g
