Epson EB-1785W User Manual

Projector Connections
25
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
s Signal > Advanced > Input Signal
gg Related Links
• "Input Signal Settings - Signal Menu" p.119
• "Projector Setup Settings - Extended Menu" p.123

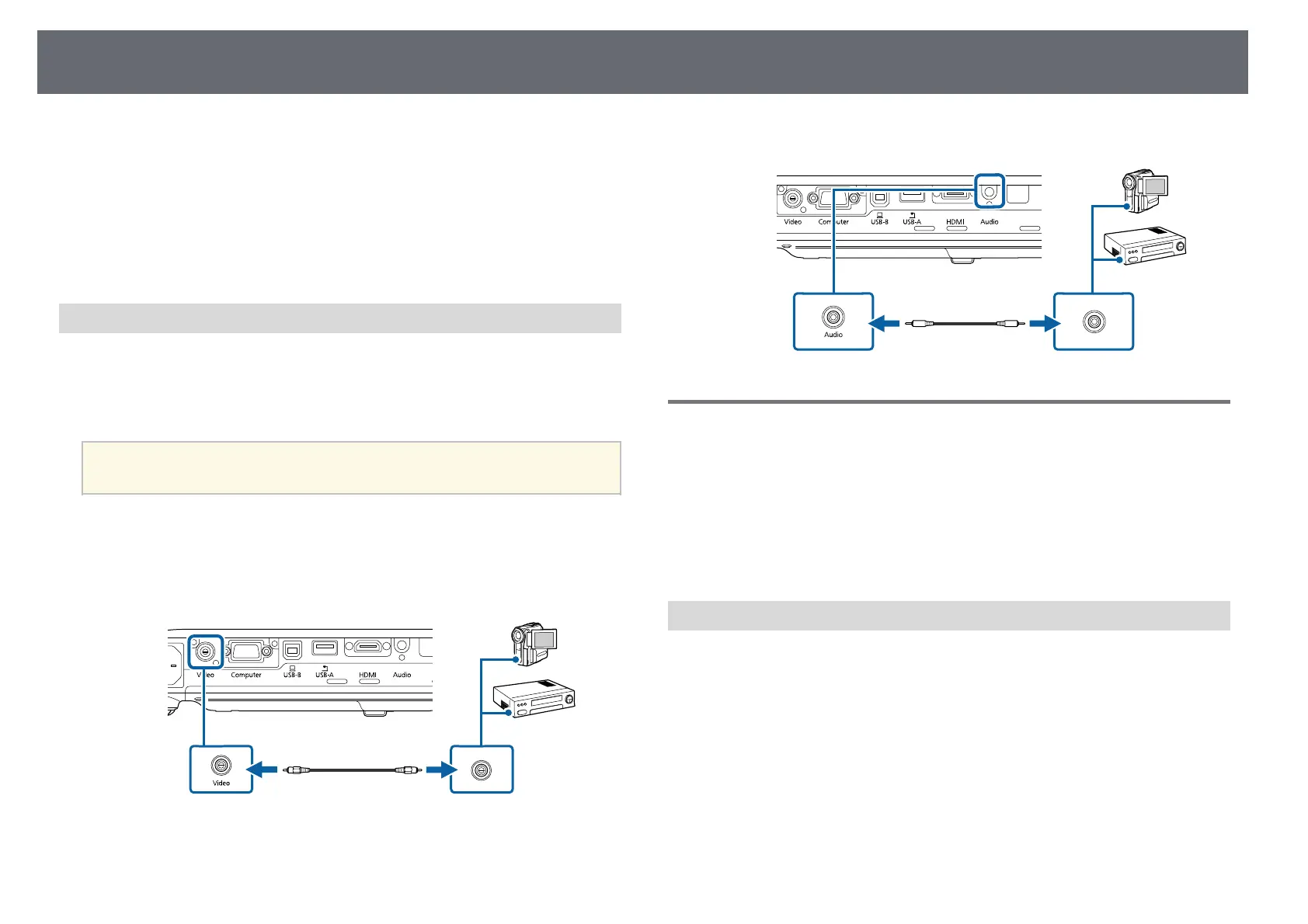

Connecting to a Composite Video Source
If your video source has a composite video port, you can connect it to the
projector using a RCA-style video or A/V cable.
You can play sound through the projector's speaker system by connecting a
stereo mini-jack audio cable.
a
Make sure the audio cable is labeled "No resistance".
a
Connect the cable with the yellow connector to your video source's
yellow video output port.
b
Connect the other end to the projector's Video port.
c
Connect the audio cable to your video source's audio-out ports.
d
Connect the other end to the projector's Audio port.
Connecting to External USB Devices
Follow the instructions in these sections to connect external USB devices to
the projector.
gg Related Links
• "USB Device Projection" p.25
• "Connecting to a USB Device" p.26
• "Disconnecting a USB Device" p.26
USB Device Projection
You can project images and other content without using a computer or video
device by connecting any of these devices to your projector:
• USB flash drive
• Digital camera or smartphone
• USB hard drive
• Multimedia storage viewer

Epson EB-1785W Specifications

General

Matrix size	0.59 \
Number of colors	1.073 billion colors
Native aspect ratio	16:10
Vertical scan range	100 - 120 Hz
Projection technology	3LCD
Contrast ratio (typical)	10000:1
Screen size compatibility	30 - 300 \
Projection distance (tele)	0.8 - 8.2 m
Projection distance (wide)	0.7 - 6.8 m
Projector native resolution	WXGA (1280x800)
Keystone correction, vertical	-30 - 30 °
Keystone correction, horizontal	-20 - 20 °
Projector brightness (economic mode)	1900 ANSI lumens
Noise level	39 dB
Password protection	Yes
Noise level (economic mode)	30 dB
Throw ratio	1.04 - 1.26:1
Focal length range	13.52 - 16.22 mm
Aperture range (F-F)	1.58 - 1.7
RMS rated power	1 W
Number of built-in speakers	1
Placement	Desktop, Ceiling
Product type	Standard throw projector
Product color	Black, White
Cable lock slot type	Kensington
Lamp power	214 W
Lamps quantity	1 lamp(s)
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	7000 h
Built-in display	-
Power source	AC
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.34 W
Power consumption (typical)	295 W
Power consumption (economy mode)	208 W
3D	No
Video processing	10 bit
Video color modes	Blackboard, Cinema, Dynamic, Presentation, sRGB
USB 2.0 ports quantity	2
Component video (YPbPr/YCbCr) in	0
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Standard interfaces	HDMI, NFC, USB, VGA, Wireless LAN
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 40 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Cables included	AC, VGA

Weight and Dimensions

Depth	213 mm
Width	292 mm
Height	44 mm
Weight	1800 g
