Epson EB-S02 Service Manual

EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Disassembly and Assembly CONFIDENTIAL
SEIKO EPSON 110 Revision C
3.5.3.3 Replacing the Optical Engine
This section describes how to repair when the optical engine is broken.

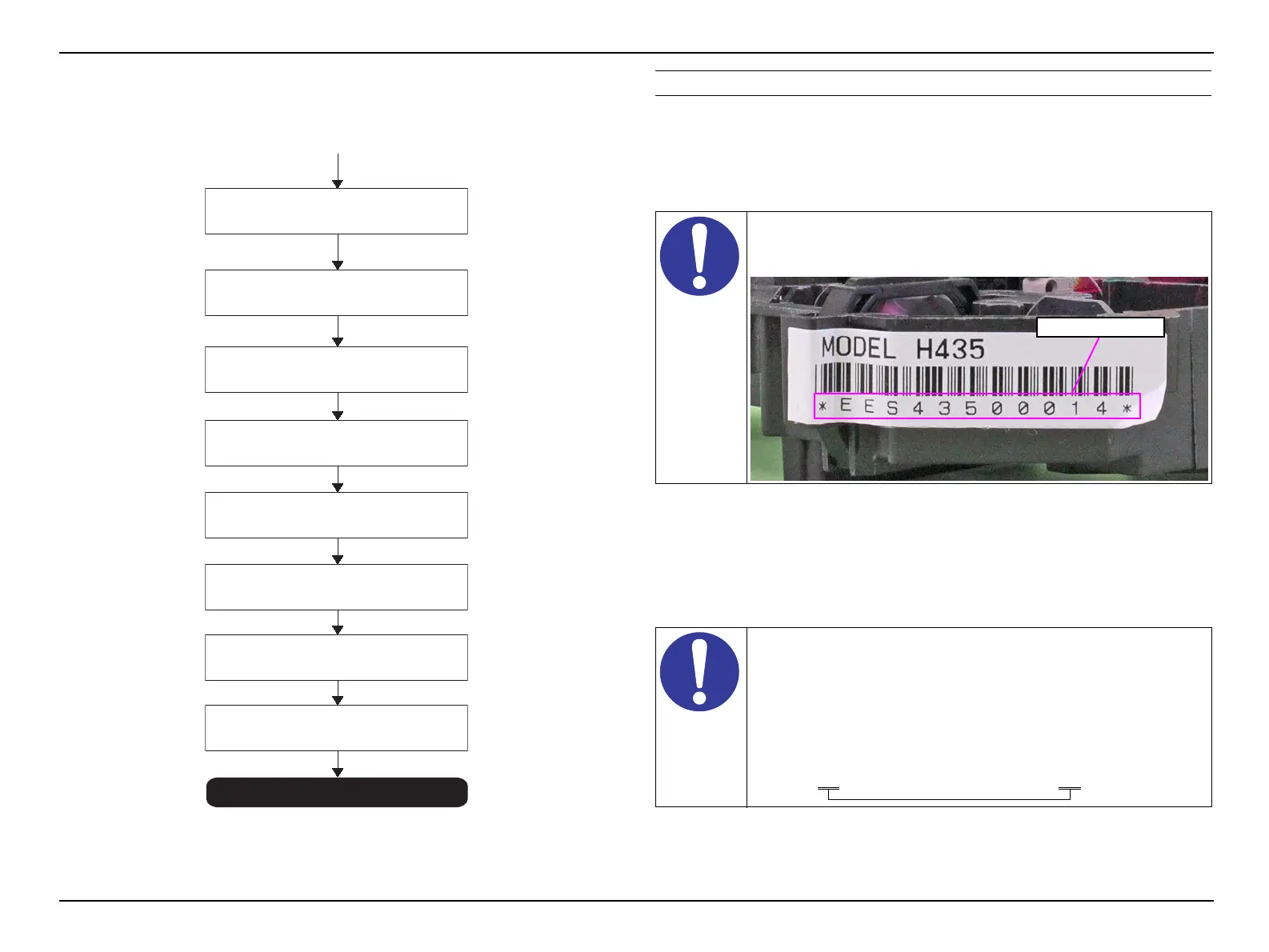

Figure 3-45. Optical Engine replacement workflow
OBTAINING THE DR DATA
 Preparing a good Optical Engine for replacement
1. Prepare a good Optical Engine belonging to the same model group as the
current MA Board for replacement.
2. Note down the 11-digit serial number of the good Optical Engine for
replacement.
 Obtaining the DR data
3. Obtain the corresponding DR data referring to the Technical Information
TI08-30e.
 Saving the data to the PC
4. Save the DR data file to the following folder in the PC.
C:\IRIS\DRDATA\
(Continued to the next page)
END
"3.5.3.2 Check in advance" (p.108)
Preparing a good Optical
Engine for replacement
Obtaining the DR data
Saving the data to the PC
Replacing it with a good
Optical Engine
Connect the projector to the PC
Turning on the projector
Writing the DR data
Image/Operation check
Take care not to mistake the numbers such as “6” for “5” because
of the font used for the serial number of the Optical Engine. Some
numbers are easily mistaken.
 RESTORE cannot operate correctly if the DR data is not saved
in the specified folder.
 Serial number (11digits) of the optical engine that was put into
the " Engine Serial " column might be different from file name
displayed as a result of the retrieval. No problem with the
difference.
Entered OE serial number Result of retrieval (Goose File name)
E9X30900004 H309_12_E9X_00002__050000_06FFFF.bin
Serial number

Epson EB-S02 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	± 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Focus	Manual
Offset	8:1 %
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1920 x 1080 (HD 1080), 800 x 600 (SVGA)
RMS rated power	1 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3320 g
