EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480 Product Description CONFIDENTIAL
SEIKO EPSON 12 Revision C
1.2 Features
The EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14
EH-TW480 are portable compact business/home projectors with the following
features:
 Auto Vertical-Keystone
(EB-X14G/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
only)
When the sensor of the projector detects the change in setting, the projector
automatically corrects the keystone in the vertical direction.
 Horizontal Keystone Adjuster
(EB-X11/S12/S12H/X12/W12/X14 EH-TW480 only)
This allows you to quickly correct horizontal distortion of the projected image.
 Direct Power On/Off
 No cool-down period is needed.
 Project screen for WXGA (16:10)
(EB-W01/W02/W12 EH-TW480 only)
 Auto Iris
 With an optional document camera (ELPDC06/ELPDC11), you can magnify and
project the images of your documents.
 USB connection for projection (USB Display) is available.
 USB terminal (Type B) for USB Display
 Slide show is available
(EB-S11/X11/S12/S12H/X12/W12/X14 EH-TW480 only)
 The images in a USB flash drive can be projected without using a computer
 USB terminal (Type A) for USB Display
 HDMI terminals
(EB-S02H/S12H/X12/W12/X14 EH-TW480 only)
 Enhanced security functions

Password protection
 Operation Lock
 Anti-theft Lock

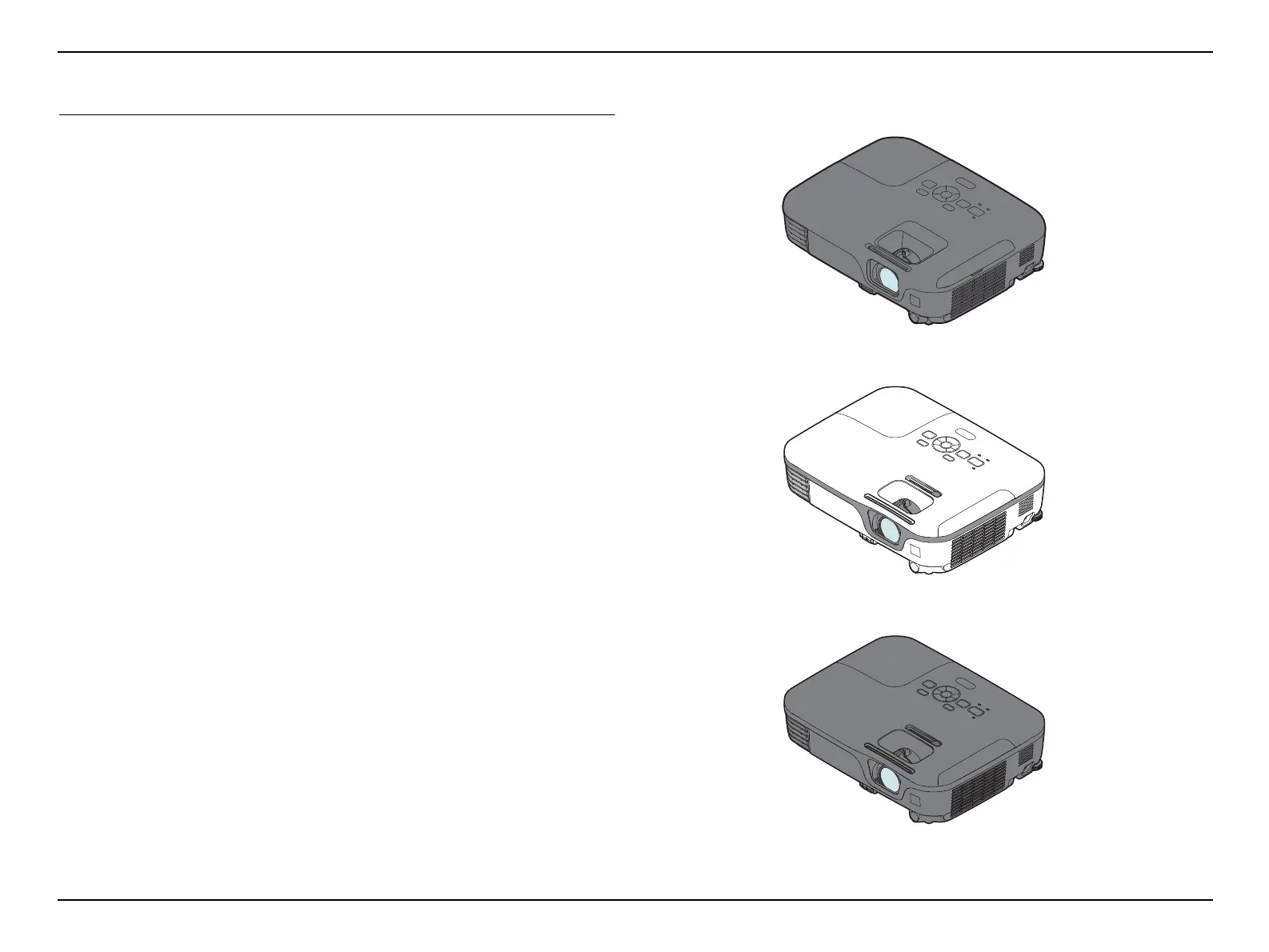

Figure 1-1. External View
Business Type B: EB-S11/X11/S12/S12H/X12/W12/X14
Business Type A: EB-S01/W01/X14G/S02/S02H/X02/W02
Home Type: EH-TW480

Epson EB-S02 Specifications

General

Matrix size	0.55 \
Native aspect ratio	4:3
Projection distance	- m
Projection technology	3LCD
Supported aspect ratios	-
Contrast ratio (typical)	3000:1
Screen size compatibility	30 - 350 \
Projector native resolution	SVGA (800x600)
Keystone correction, vertical	± 30 °
Projector brightness (economic mode)	2080 ANSI lumens
Focus	Manual
Offset	8:1 %
Throw ratio	1.45 - 1.96:1
Digital zoom	1.35 x
Focal length range	- mm
Lamp type	UHE
Lamp power	200 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
DVI port	No
USB connector type	USB Type-B
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
S-Video inputs quantity	1
Ethernet LAN (RJ-45) ports	0
Full HD	Yes
Supported video modes	1080i
Supported graphics resolutions	1920 x 1080 (HD 1080), 800 x 600 (SVGA)
RMS rated power	1 W
Placement	Desktop
Product type	Standard throw projector
Product color	Black
Cable lock slot type	Kensington
Power source	AC
Power consumption (standby)	0.47 W
Power consumption (typical)	270 W
Noise level	37 dB
Country of origin	China
Noise level (economic mode)	29 dB
Pallet width	800 mm
Pallet height	2204 mm
Pallet length	1200 mm
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	78 pc(s)
Quantity per pallet layer	6 pc(s)

Weight and Dimensions

Depth	228 mm
Width	295 mm
Height	77 mm
Weight	2300 g
Package depth	360 mm
Package width	335 mm
Package height	158 mm
Package weight	3320 g
