Projector Connections
• "Input Signal Settings - Signal Menu" p.103
b
Connect the other end to the projector's HDMI port.
b
Connect the VGA connector to a Computer port on the projector.
gg Related Links
c
Tighten the screws on the VGA connector.
• "Projector Setup Settings - Extended Menu" p.107
d
Connect the audio cable to your video source's audio-out ports.

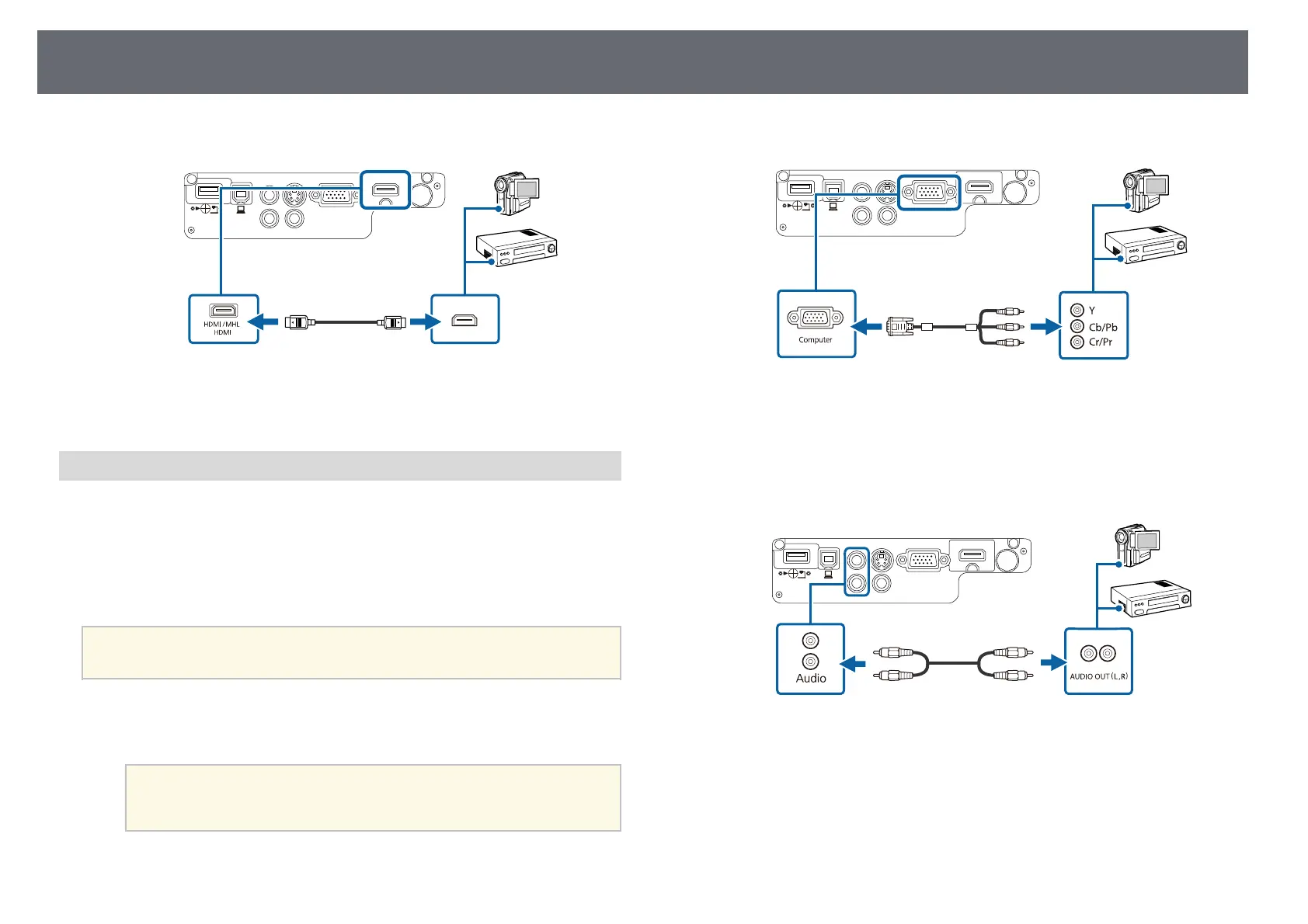

Connecting to a Component-to-VGA Video Source
e
Connect the other end to the projector's Audio ports.
If your video source has component video ports, you can connect it to the
projector using an optional component-to-VGA video cable. Depending on
your component ports, you may need to use an adapter cable along with a
component video cable.
You can play sound through the projector's speaker system by connecting a
commercially available RCA audio cable.
Make sure the audio cable is labeled "No resistance".
a
a
Connect the component connectors to your video source's color-coded
component video output ports.
If your image colors appear incorrectly, you may need to change the Input
Signal setting in the projector's Signal menu.
The ports usually labeled Y, Pb, Pr or Y, Cb, Cr. If you are using
s Signal > Advanced > Input Signal
an adapter, connect these connectors to your component video
a
cable.
gg Related Links

Epson EB-U04 Specifications

General

Contrast Ratio	15, 000:1
Lamp Life	Up to 10, 000 hours (ECO mode)
Weight	2.6 kg
Resolution	WUXGA (1920 x 1200)
Dimensions	297 x 244 x 77 mm
Projection System	3LCD Technology
Keystone Correction	Vertical: ±30 degrees, Horizontal: ±30 degrees
Zoom	Factor: 1.2
Interfaces	HDMI in, VGA in, Composite in, USB 2.0 Type B, USB 2.0 Type A
Security	Kensington lock
Projection Size	30 inches - 300 inches
Input Ports	VGA, HDMI, Composite, USB
Brightness	3000 Lumens (White), 3000 Lumens (Color)
