Epson EB-X14H User Manual

Name Function
D
Front adjustable foot
When setup on a surface such as a desk, extend the foot to
adjust the position of the image.
s "Adjusting the Image Position" p.36
E
A/V mute slide
Close when not using the projector to protect the lens. By
closing during projection you can hide the image and the
sound.
s "Hiding the Image and Sound Temporarily (A/V
Mute)" p.42
F
Remote receiver
Receives signals from the remote control.
G
Focus ring
Adjusts the image focus.
s "Correcting the Focus" p.37
H
Zoom ring
(EB-X15/EB-X14H/EB-
X11H only)
Adjusts the image size.
s "Adjusting the Image Size" p.36
I
Air intake vent
(air filter)
Takes in air to cool the projector internally.
s "Cleaning the Air Filter" p.79
J
Air filter cover
Opens and closes the air filter cover.
s "Replacing the Air Filter" p.84
K
Speaker
Outputs audio.
L
Indicators
Indicates the projector's status.
s "Reading the Indicators" p.66
M
Control panel
Operates the projector.
s "Control Panel" p.12
N
Horizontal keystone
adjuster
(EB-X15 only)
Corrects horizontal distortion in the projected image.
s "Correcting manually" p.33
O
Lamp cover
Open when replacing the projector's lamp.
s "Replacing the Lamp" p.81

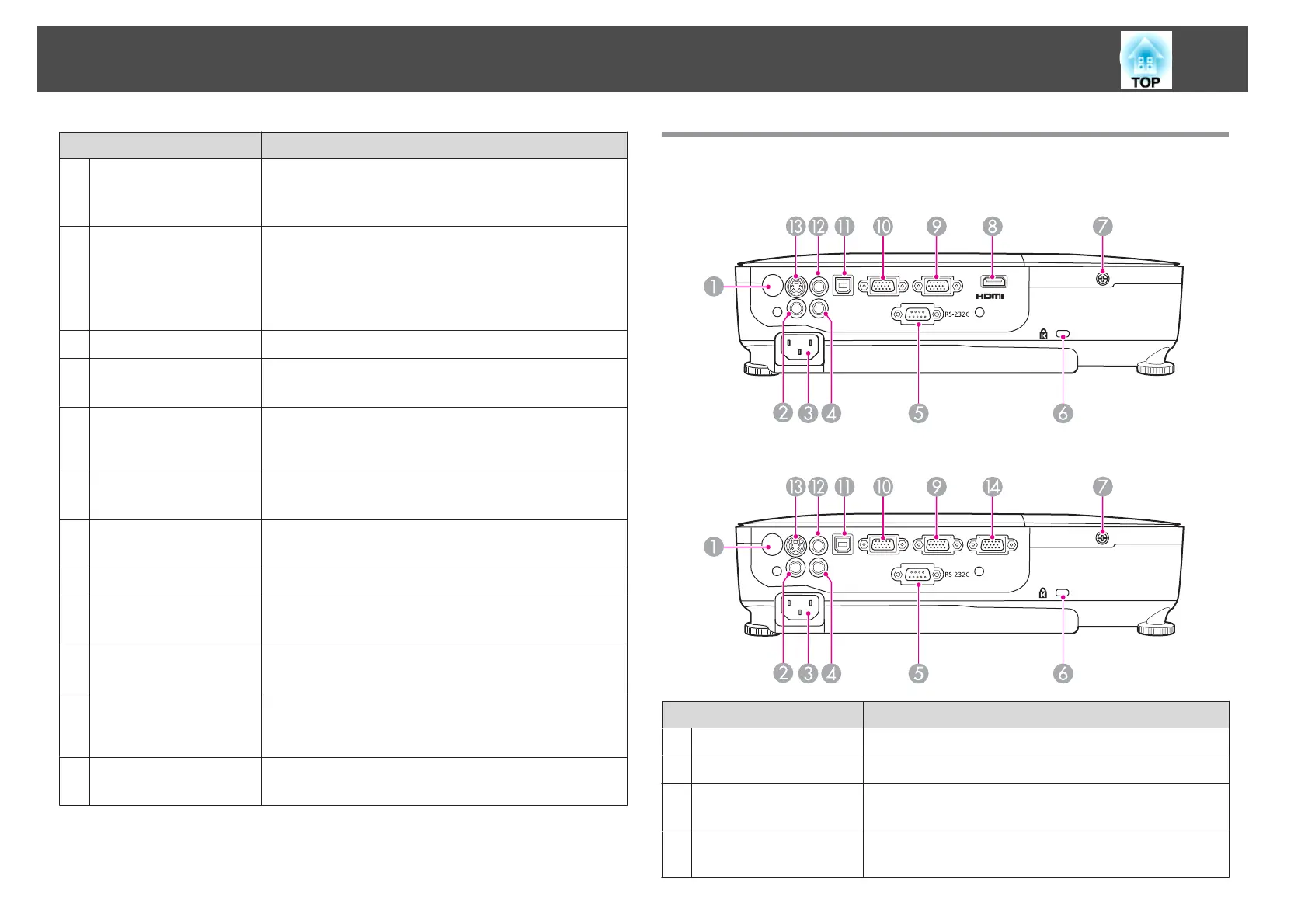

Rear
EB-X15
EB-X14H/EB-X11H/EB-S11H
Name Function
A
Remote receiver
Receives signals from the remote control.
B
Video port
Inputs composite video signals from video sources.
C
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.26
D
Audio port
Inputs audio from equipment connected to the Computer
port, the S-Video port, or the Video port.
Part Names and Functions
10
