ESC/VP21 Commands
You can control the projector from an external device using ESC/VP21.
Before starting

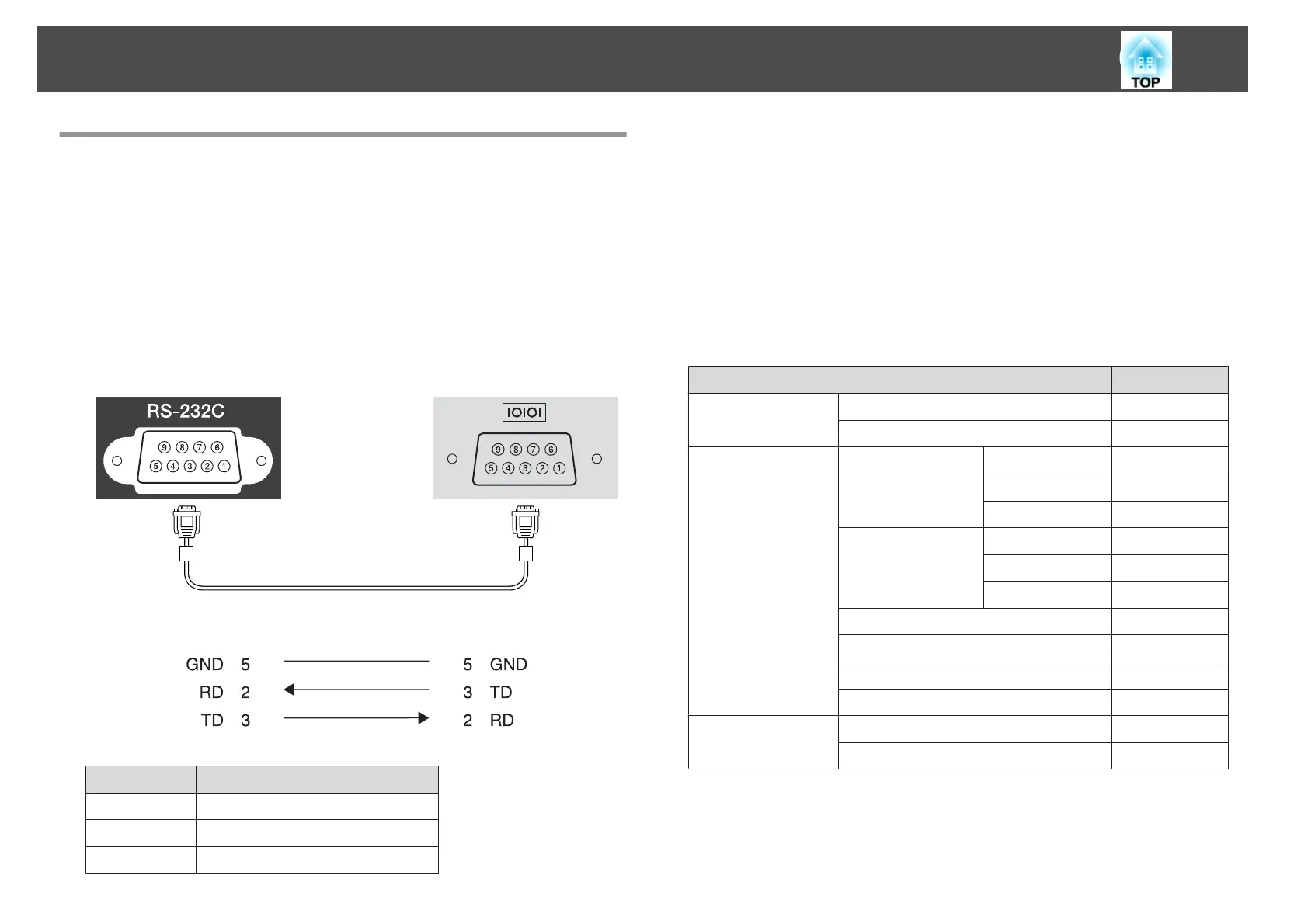

Connect the computer's serial port (D-Sub 9pin) to the projector's RS-232C
port with a PC serial cable.
• Connector shape: D-Sub 9-pin (male)
• Projector input port name: RS-232C
<At the projector> <At the computer>
<At the projector> (PC serial cable) <At the computer>
Signal Name Function
GND Signal wire ground
TD Transmit data
RD Receive data
Command list
When the power ON command is transmitted to the projector, the power
turns on and it enters warm-up mode. When the projector's power has
turned on, a colon ":" (3Ah) is returned.
When a command is input, the projector executes the command and
returns a ":", and then accepts the next command.
If the command being processed terminates abnormally, an error message is
output and a ":" is returned.
The main contents are listed below.
Item Command
Power ON/OFF On PWR ON
Off PWR OFF
Signal selection Computer1 Auto SOURCE 1F
RGB SOURCE 11
Component SOURCE 14
Computer2 Auto SOURCE 2F
RGB SOURCE 21
Component SOURCE 24
HDMI (EB-X15 only) SOURCE 30
Video SOURCE 41
S-Video SOURCE 42
USB Display SOURCE 51
A/V Mute On/Off On MUTE ON
Off MUTE OFF
Add a Carriage Return (CR) code (0Dh) to the end of each command and
transmit.
Monitoring and Controlling
52
