Connecting External Equipment

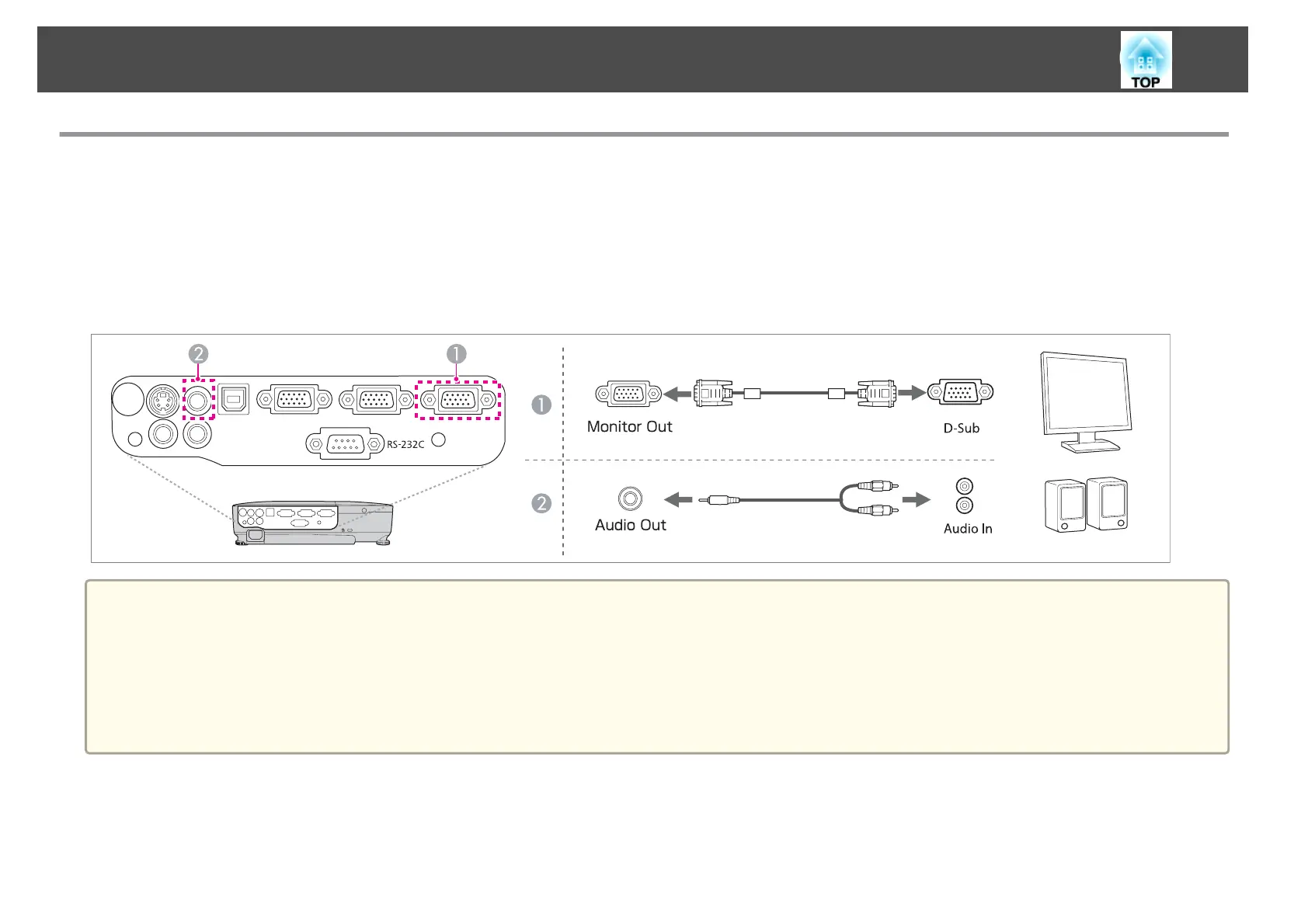

You can output images and audio by connecting an external monitor or speaker. The illustration in this section is of EB-X14H/EB-X11H/EB-S11H.
A
When outputting images to an external monitor (EB-X14H/EB-X11H/EB-S11H only)
Connect the external monitor to the projector's Monitor Out port using the cable supplied with the external monitor.
B
When outputting audio to an external speaker
Connect the external speaker to the projector's Audio Out port using a commercially available audio cable.
a
• If you set Standby Mode to Communication On, you can output images to an external monitor even if the projector is in standby mode.
s Extended - Standby Mode p.61
• Only analog RGB signals from the Computer1 port can be output to an external monitor. You cannot output signals input from other ports or component video
signals.
• Setting gauges for functions such as Keystone, Configuration Menu, or Help screens are not output to the external monitor.
• When the audio cable jack is inserted into the Audio Out port, audio stops being output from the projector's built-in speakers and switches to external
output.
