Epson EB-X25 User Manual

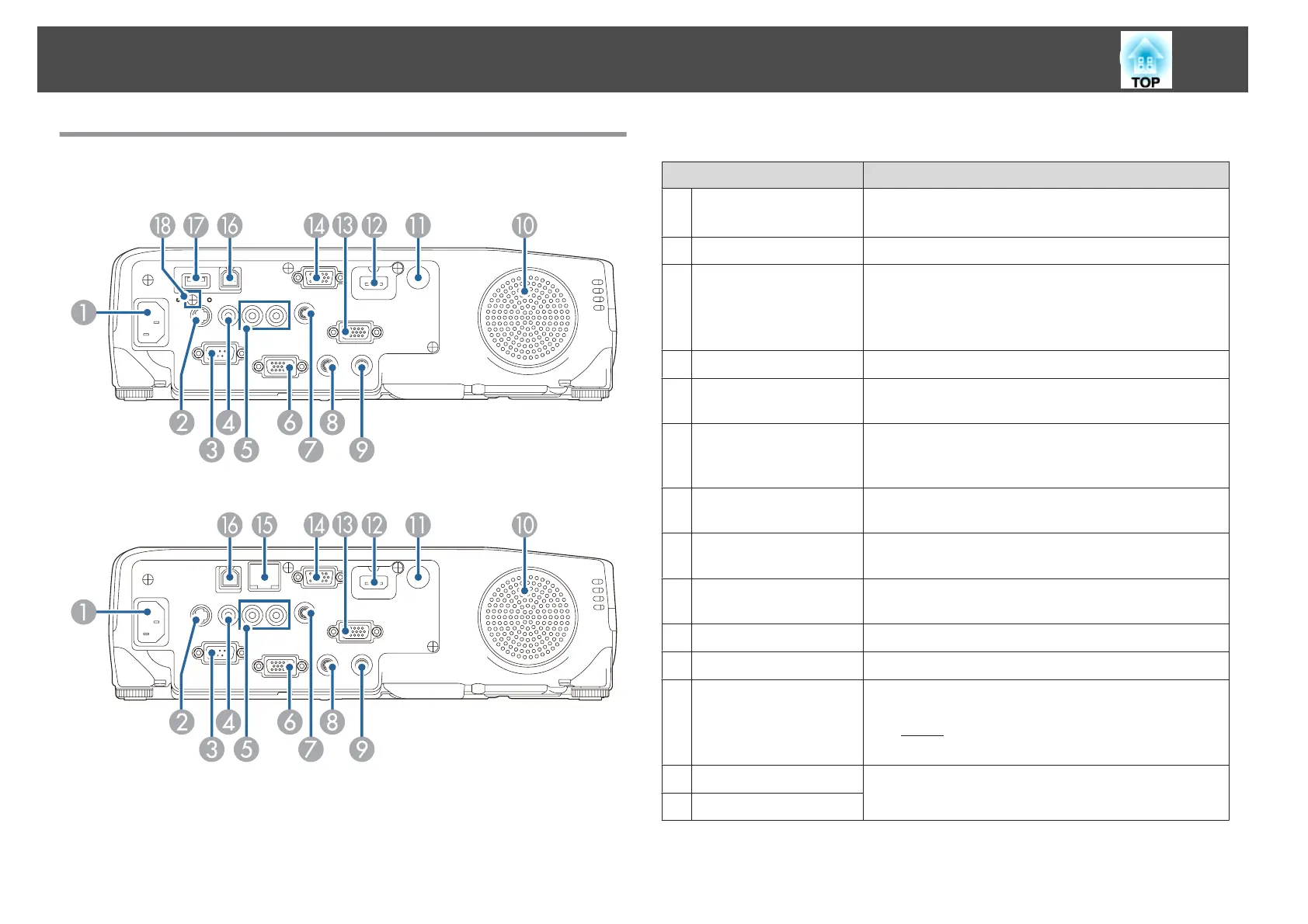

Rear
EB-X21/EB-S21/EB-X17/EB-S17
EB-X25/EB-W22/EB-X22/EB-X20
The ports vary depending on the model being used.
Name Function
A
Power inlet
Connects the power cord to the projector.
s "From Installation to Projection" p.34
B
S-Video port
For S-video signals from video sources.
C
RS-232C port
When controlling the device from a computer, connect it
to the computer with an RS-232C cable. This port is for
control use and should not normally be used.
s "ESC/VP21 Commands" p.73
D
Video port
Inputs composite video signals from video sources.
E
Audio-L/R port
Inputs audio from equipment connected to the S-Video
port or the Video port.
F
Monitor Out port
Outputs analog RGB signals input from the Computer1
port to an external monitor. You cannot output signals
input from other ports or component video signals.
G
Audio1 port
Inputs audio from equipment connected to the
Computer1 port.
H
Audio Output port
Outputs audio from the currently projected image to an
external speaker.
I
Audio2 port
Inputs audio from equipment connected to the
Computer2 port.
J
Speaker
Outputs audio.
K
Remote receiver
Receives signals from the remote control.
L
HDMI port
Inputs video signals from HDMI compatible video
equipment and computers. This projector is compatible
with
HDCP g .
s "Connecting Image Sources" p.26
M
Computer2 port
Inputs image signals from a computer and component
video signals from other video sources.
N
Computer1 port
Part Names and Functions
13
