Projector Parts and Functions
10
Name Function
F
USB-A port Connects a commercially available USB device such as
a webcam, external HDD, or keyboard.
Connects a commercially available RJ45 adapter to
enable wired LAN connections.
a
This port is not guaranteed to
operate for all devices that support
USB.
gg Related Links
• "Connecting to Video Sources" p.16
• "Connecting to an ARC Compatible AV System" p.17
• "Connecting to External Audio Devices" p.16

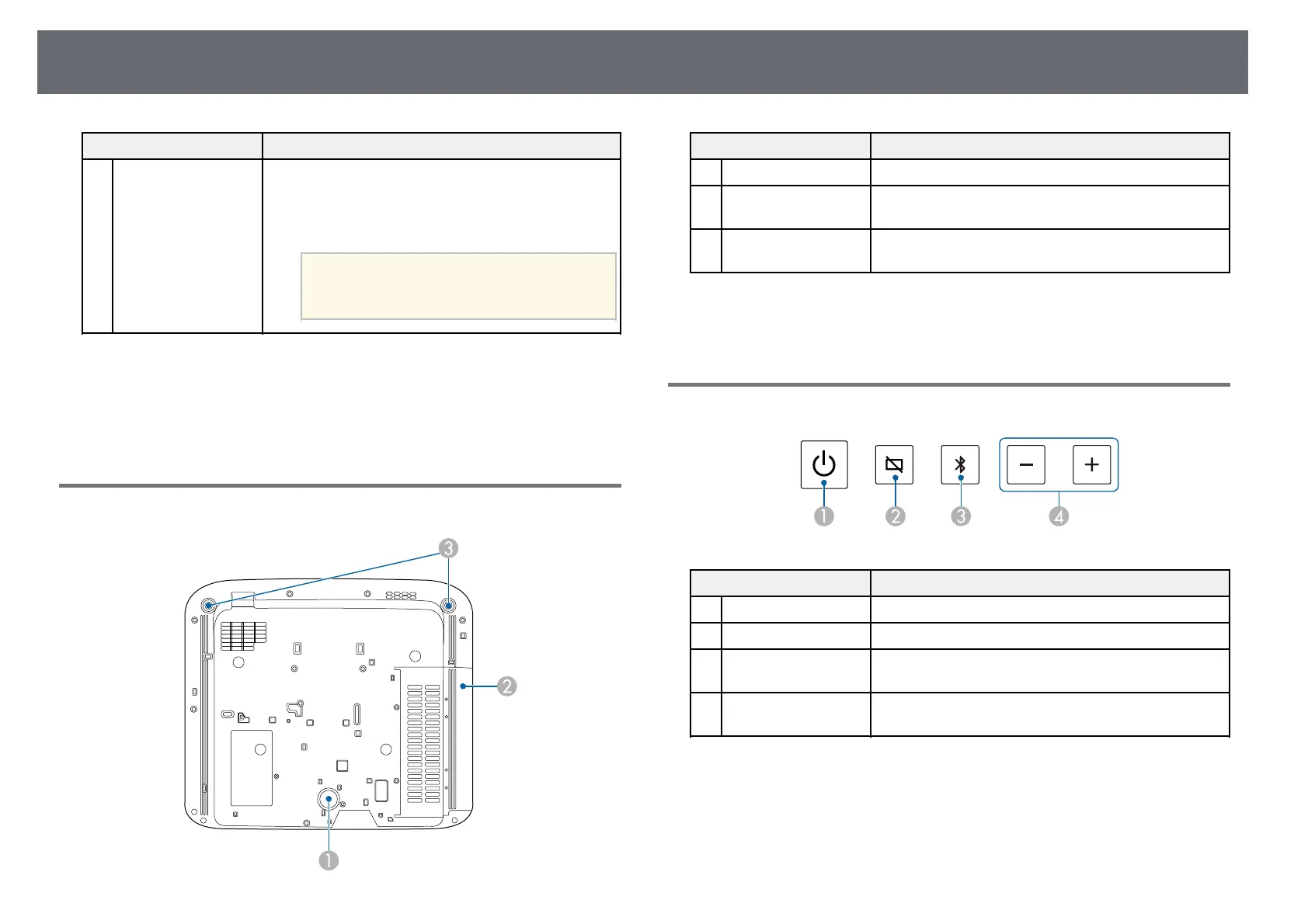

Projector Parts - Base
Name Function
A
Rear foot Stabilizes the projector on a surface such as a desk.
B
Air intake vent (air
filter)
Takes in air to cool the projector internally.
C
Front adjustable feet When setup on a surface such as a desk, turn to extend
and retract the feet to adjust the horizontal tilt.
gg Related Links
• "Air Filter and Vent Maintenance" p.59
Projector Parts - Control Panel
Name Function
A
Power button Turns the projector on or off.
B
Blank button Turns the video on or off temporarily.
C
Bluetooth Speaker
Mode button
Switches to the Bluetooth Speaker Mode.
D
Volume up/down
buttons
Adjusts the volume for the speaker.
gg Related Links
• "Projector Indicator Status" p.64
• "Using the Projector as a Bluetooth Speaker" p.39
