Epson EH-TW7400 User Manual

Preparing
17

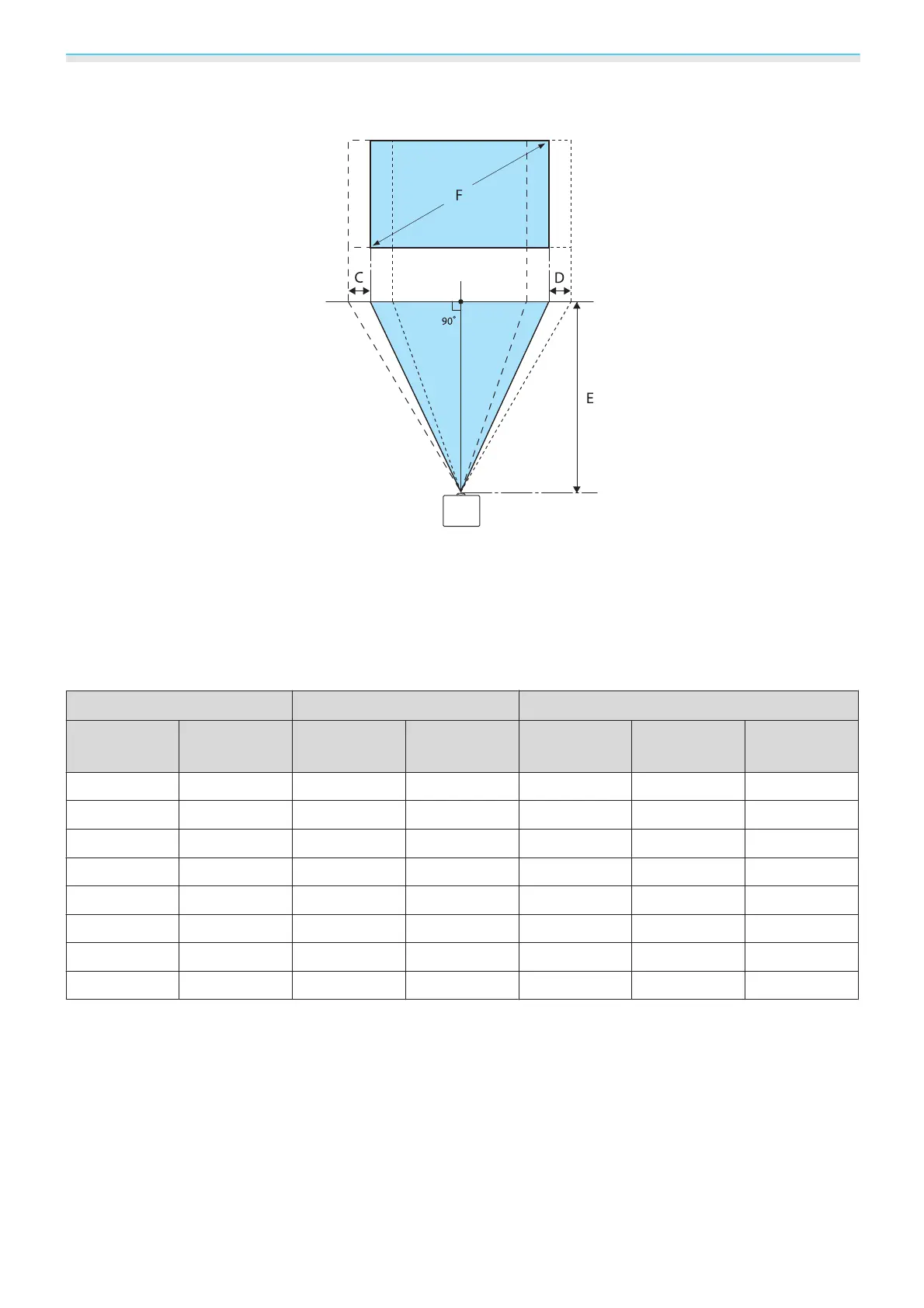

When adjusting the projection position horizontally in lens shift
C : Lens center movement distance when the projector is moved (when lens shift is set to maximum left)
D : Lens center movement distance when the projector is moved (when lens shift is set to maximum right)
E : Projection distance from the projector to the screen
F : Size of the projected image
Unit: cm
16:9 Screen Size Projection Distance (E) Lens Shift Maximum Values
*
F W x H Minimum
(Wide)
Maximum
(Tele)
Distance
(A)
Distance
(B)
Distance
(C, D)
50" 111 x 62 148 313 29 91 52
60" 133 x 75 178 376 35 109 63
80" 177 x 100 239 503 46 146 83
100" 221 x 125 300 630 58 182 104
150" 332 x 187 452 947 86 273 156
200" 443 x 249 604 1264 115 364 209
250" 553 x 311 756 1582 144 455 261
300" 664 x 374 908 1899 173 547 313
*
Vertical and horizontal lens shift cannot both be set to their maximum values. s p.29
Installation example (with 16:9 screen size and 100")
Side view

Epson EH-TW7400 Specifications

General

Matrix size	0.74 \
Number of colors	1.07 billion colors
Native aspect ratio	16:9
Projection distance	3 - 6.3 m
Vertical scan range	192 - 240 Hz
Projection technology	3LCD
Contrast ratio (typical)	200000:1
Screen size compatibility	50 - 300 \
Projector native resolution	WUXGA (1920x1200)
Keystone correction, vertical	-30 - 30 °
Throw ratio	1.35 - 2.84:1
Zoom capability	Yes
Focal length range	22.5 - 46.7 mm
Aperture range (F-F)	2 - 3
Vertical lens shift range	-96.3 - 96.3 %
Horizontal lens shift range	-47.1 - 47.1 %
Lamp type	UHE
Lamp power	250 W
Light source type	Lamp
Service life of light source	3500 h
Service life of light source (economic mode)	5000 h
Video processing	10 bit
Video color modes	Cinema, Dynamic, Natural, Bright cinema
Supported 3D formats	Side by side, Top and bottom
3D video colour modes	3D Dynamic, 3D Cinema
Analog signal format system	Not supported
DVI port	No
Audio (L/R) in	-
Composite video in	0
Serial interface type	RS-232
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Placement	Ceiling, Desktop
Product type	Standard throw projector
Product color	White
Market positioning	Home cinema
Cable lock slot type	Kensington
Noise level	31 dB
Country of origin	China
2D/3D frequency image	240/480 Hz
Noise level (economic mode)	20 dB
Power source	AC
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	0.2 W
Power consumption (typical)	355 W
Power consumption (economy mode)	271 W
Storage temperature (T-T)	-10 - 60 °C
Operating temperature (T-T)	5 - 35 °C
Storage relative humidity (H-H)	10 - 90 %
Cables included	AC, HDMI
Pallet width	800 mm
Pallet height	2510 mm
Pallet length	1200 mm
Pallet weight	0 g
Pallet width (UK)	1000 mm
Quantity per pack	1 pc(s)
Quantity per pallet	16 pc(s)
Quantity per pallet layer	2 pc(s)
Harmonized System (HS) code	85286200
Software support	via: AMX, Crestron (Network), Control4

Weight and Dimensions

Depth	450 mm
Width	520 mm
Height	193 mm
Weight	11200 g
Package depth	655 mm
Package width	512 mm
Package height	260 mm
Package weight	14425 g
