Board Interfaces and Connectors
Epson IMU_OEM7 Interposer Board Seiko Epson Corporation 9
User Manual (Rev. 1.3)

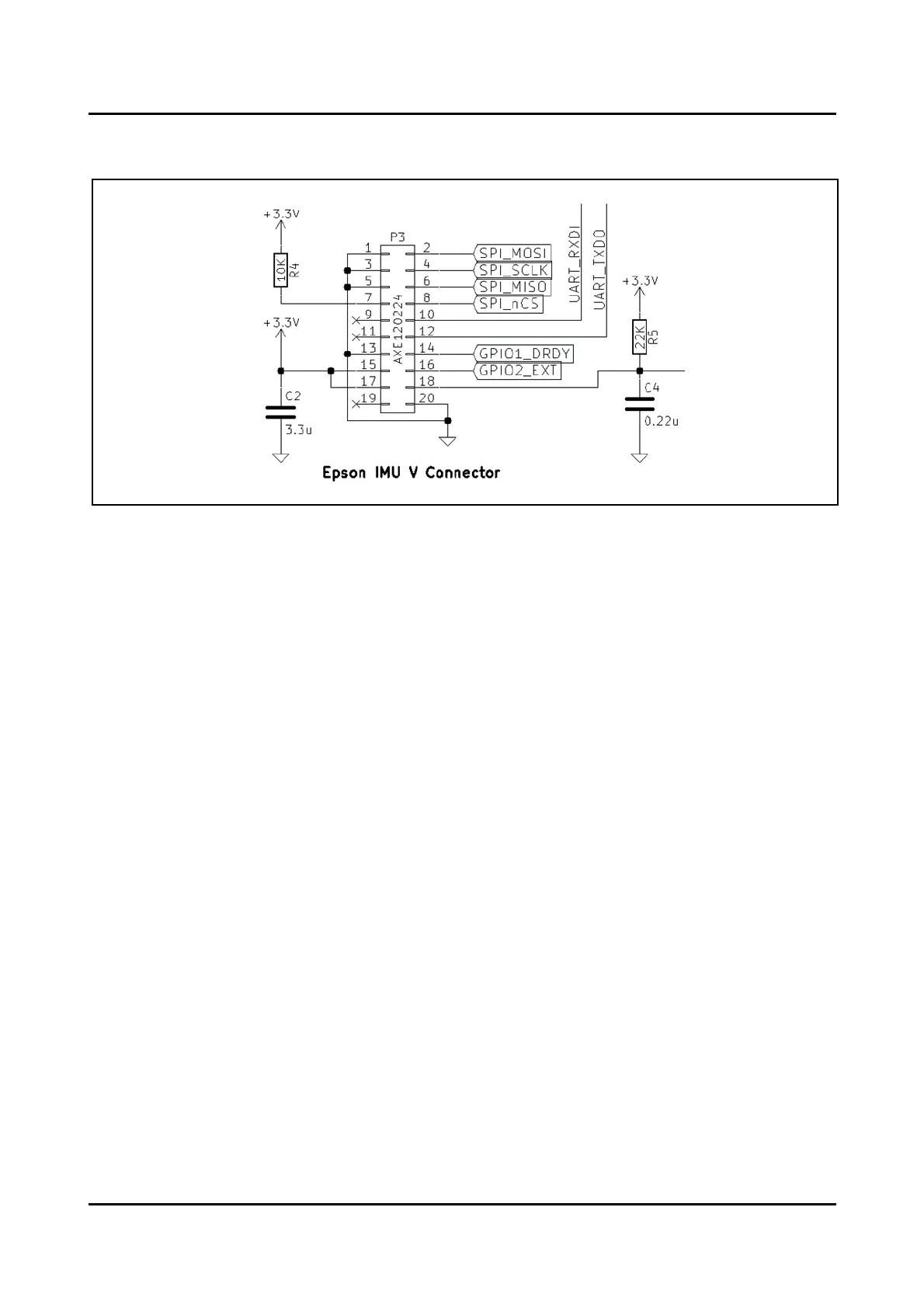

The following diagram shows the P3 connector wiring.
Figure 6-3 Epson V Series IMU Connector P3
