Disassembly/Reassembly Disassembly/Reassembly Procedures 14
L200/L201/L100/L101 Revision A
1.2 Disassembly/Reassembly Procedures
This section describes procedures for disassembling the parts/units in a flowchart format. For some parts/units,
detailed procedures or precautions are provided (accordingly indicated by icons and cell's color). Refer to the
explanations in the example chart below and perform an appropriate disassembling and reassembling procedure.
(See“ 1.3 Details of Disassembling/Reassembling by Parts/Unit (p23)”.)
For routing cables, see “ 1.4 Routing FFCs/cables (p31)”

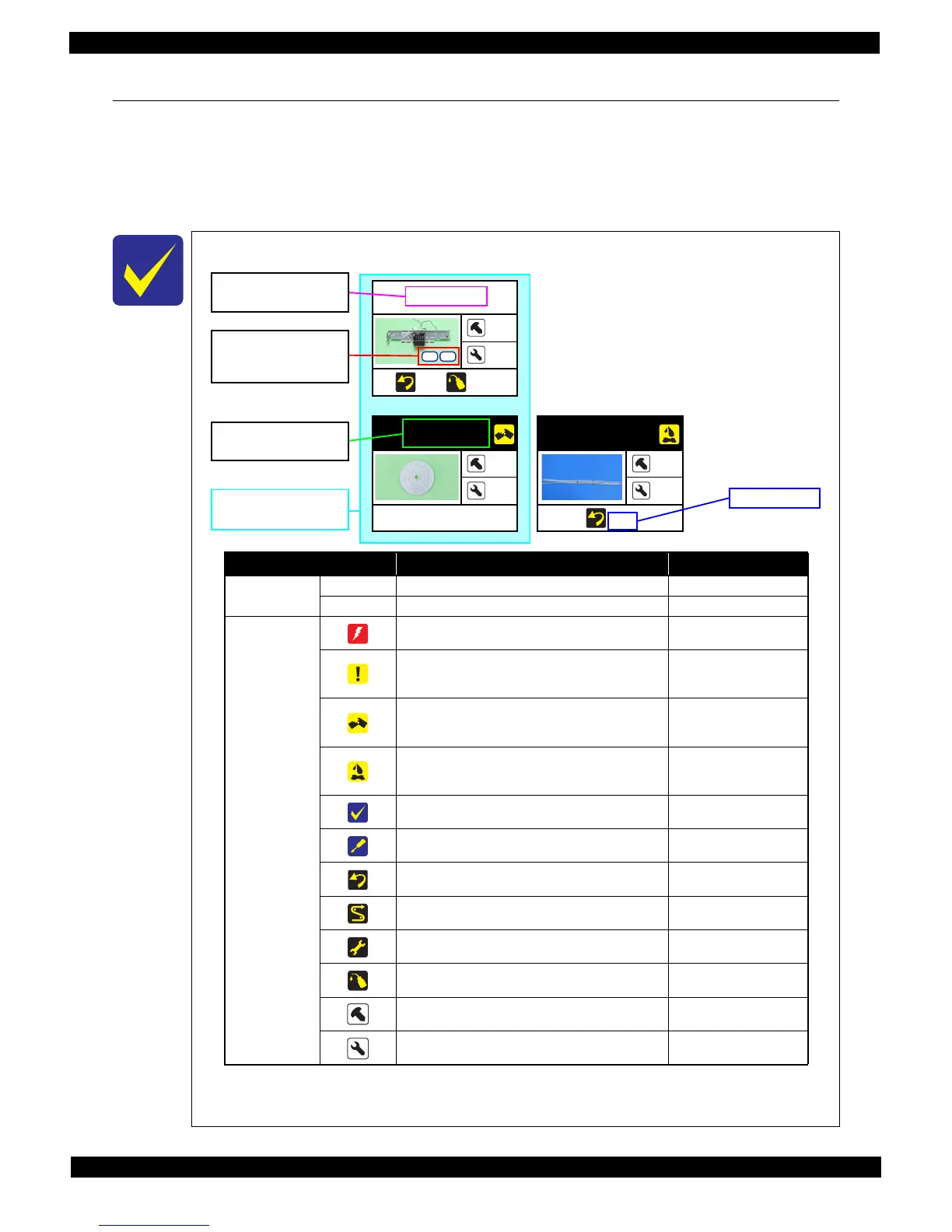

The example below shows how to see the charts on the following pages.
Main Frame
4
5
(p 24) (p 39)
S1 S5
EJ Roller Gear
---
---
---
Item Description Reference
Parts/unit name
White-letter
Parts/units supplied as an ASP ---
Black-letter
Parts/units not supplied as an ASP ---
Icon
Indicates a practice or condition that could result in
injury or loss of life if not strictly observed.
Indicates the reference
page in blue-letter
Indicates a practice or condition that could result in
damage to, or destruction of equipment if not strictly
observed.
Indicates the reference
page in blue-letter
Indicates the parts that are inevitably broken in the
disassembling procedure, and should be replaced with
a new one for reassembly.
---
Indicates the parts that may cause the ink spill when
they are removed.
“ 1.1.2 Checks and
precautions before
disassembling (p10)”
Indicates necessary check items in the disassembling/
reassembling procedure.
Indicates the reference
page in blue-letter
Indicates supplementary explanation for disassembly
is given.
Indicates the reference
page in blue-letter
Indicates particular tasks to keep quality of the units
are required.
Indicates the reference
page in blue-letter
Indicates particular routing of cables is required.
Indicates the reference
page in blue-letter
Indicates particular adjustment(s) is/are required.
Chapter 2 “ Adjustment
(p33)”
Indicates lubrication is required.
Chapter 3 “ Maintenance
(p37)”
Indicates the number of screws securing the parts/
units.
---
Indicates the points secured with other than a screw
such as a hook, rib, dowel or the like.
---
White letters indicate a
part/unit supplied as an
ASP.
Black letters indicate a
part/unit not supplied as
an ASP.
Shows the screw types
and the specified torque
in the “Screw type/torque
list”.
Tube Assy
---
---
(p 28)
Shows removal/
installation as a unit/assy.
is available.
Reference page

Epson L100 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Ink Type	Dye Ink
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	27 ppm (Draft)
Print Speed (Color)	15 ppm (Draft)
Connectivity	USB 2.0
Paper Capacity	100 sheets
Weight	2.7 kg
Ink System	4-color (Cyan, Magenta, Yellow, Black)
Ink Bottle Capacity	70 ml per color
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Operating Systems Supported	Windows XP, Windows Vista, Windows 7, Mac OS X 10.5.8 or later
Dimensions	472‎ x 222 x 130 mm (Width x Depth x Height)
