L200/L201/L100/L101 Revision A
Confidential
Maintenance Lubrication Points and Instructions 39

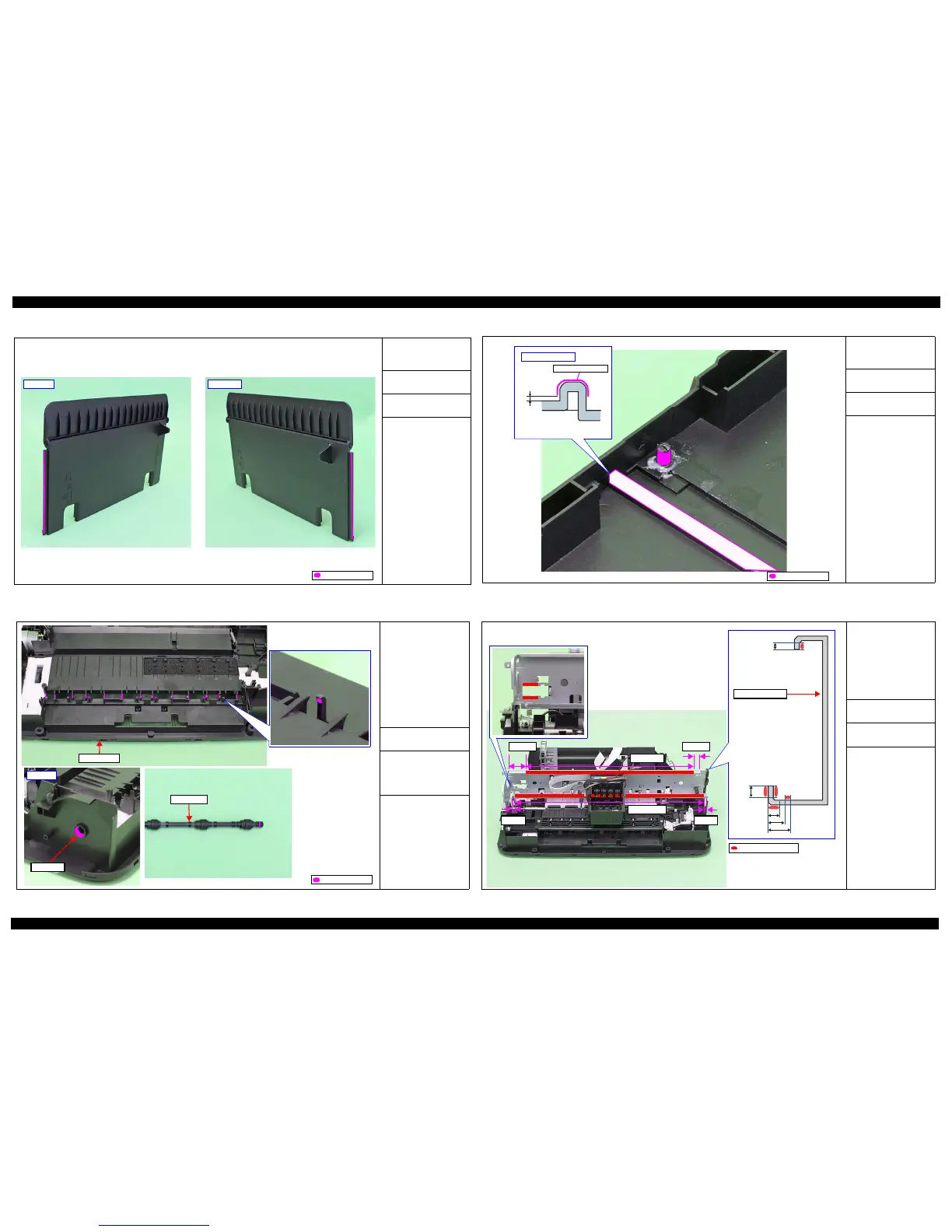

3.2 Lubrication Points and Instructions
Figure 3-1. Lubrication on Paper Support Assy (L200/L201)
<Lubrication Point>
Rail of the Paper Support
Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
Apply with brush.
Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Right side
Left side
Lubrication Point
Figure 3-2. Lubrication on Scanner Unit
<Lubrication Point>
Shaft on the Scanner
Housing
<Type>
G-45 (TBD)
<Application Amount>
Appropriate amount
<Remarks>
Apply with brush.
Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Lubrication Point
Cross-section view
1 mm
Lubrication area
Figure 3-3. Lubrication on EJ Roller
<Lubrication Point>
1. Ribs (x20) of the
Frame Base
(contacting points with
the EJ Roller)
2. Bearings of the
Frame Base
(contacting points with
the EJ Roller)
3. Shaft on the right
side of the EJ Roller
<Type>
G-71
<Application Amount>
1. 0.04g / point
2. Appropriate amount
3. Appropriate amount
<Remarks>
Apply with injector.
Left side
Bearing
EJ Roller
Frame Base
Lubrication Point
Figure 3-4. Lubrication on Main Frame
<Lubrication Point>
Contacting points (x5)
with the Carriage Unit
on the front side of the
Main Frame
Contacting points (x2)
with the Driven Pulley
Holder
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Lubrication area:
Top side of the
Main Frame: 316.4
mm (x1)
Bottom side of the
Main Frame:
377.87 mm (x4)
3.2 mm
13 mm
5.1 mm
5 mm
6.6 mm
8.6 mm
Lubrication Point
316.4 mm
377.87 mm
35 mm
2 mm 2 mm
Main Frame
