L200/L201/L100/L101 Revision A
Confidential
Maintenance Lubrication Points and Instructions 40

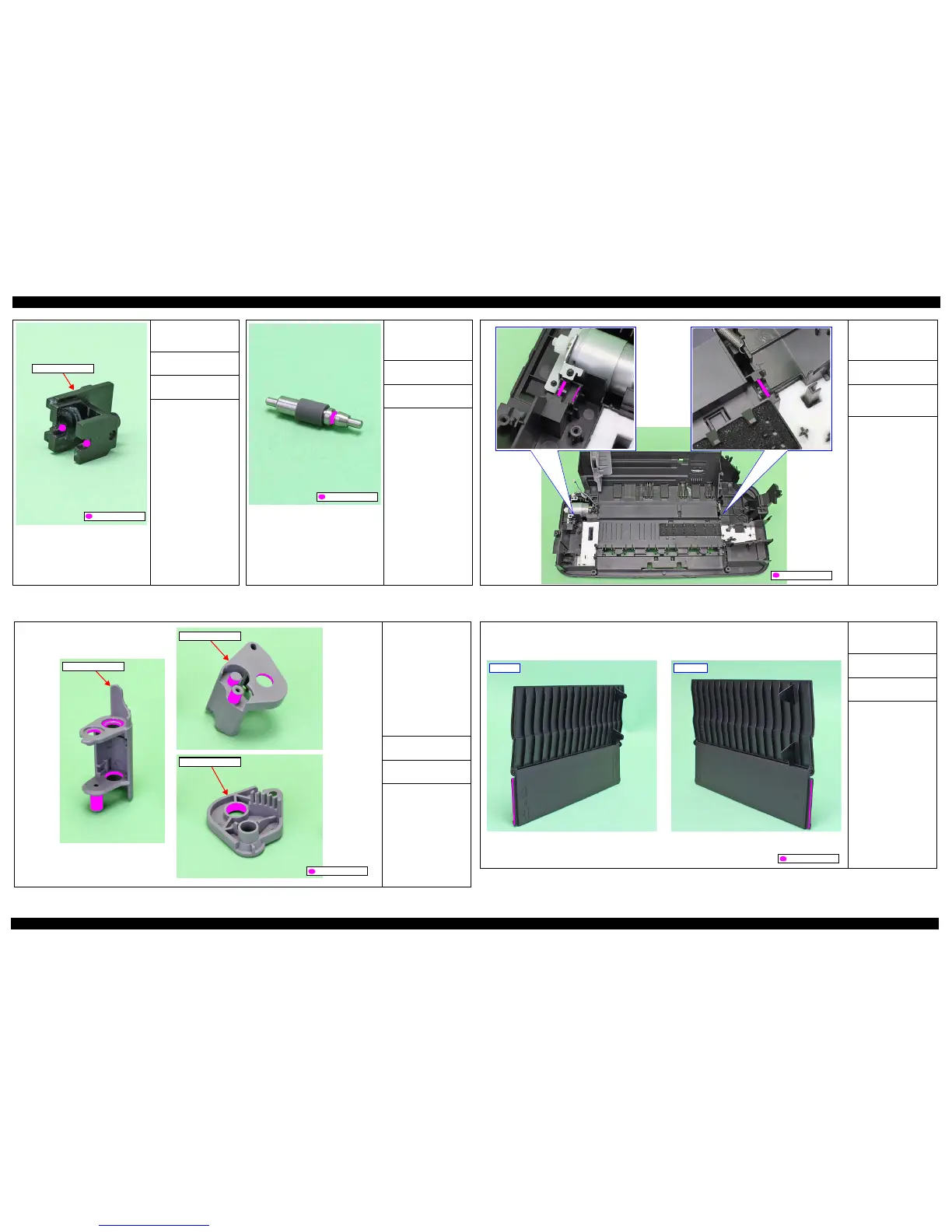

Figure 3-5. Lubrication on Driven Pulley Holder Figure 3-6. Lubrication on Roller Idler Pick Assy
<Lubrication Point>
Contacting points (x2)
with the Driven Pulley
<Type>
G-71
<Application Amount>
φ 1 mm x 1 mm
<Remarks>
Apply with injector.
Driven Pulley Holder
Lubrication Point
<Lubrication Point>
Sliding surface between
the Roller Idler Pick and
Spring Roller Idler Pick
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with brush.
Lubrication Point
Figure 3-7. Lubrication on PF Roller
<Lubrication Point>
Ribs (x3) of the Frame
Base (contacting points
with the PF Roller)
<Type>
G-71
<Application Amount>
φ 1 mm x around shaft
(x 3)
<Remarks>
Apply with injector.
Lubrication Point
Figure 3-8. Lubrication on LD Roller Assy
<Lubrication Point>
 Contacting points (x5)
between the shafts and
bushings of the Head
Pick Housing
 Contacting point (x1)
with the Right Pick
Housing
 Contacting points (x3)
between the shafts and
bushings of the Left
Pick Housing
<Type>
G-71
<Application Amount>
Appropriate amount
<Remarks>
Apply with injector.
Left Pick Housing
Right Pick Housing
Head Pick Housing
Lubrication Point
Figure 3-9. Lubrication on Paper Support Assy (L100/L101)
<Lubrication Point>
Rail of the Paper Support
Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with brush.
 Keep the lubrication
within the rail. (No
grease outside of the
rail is allowed.)
Right side
Left side
Lubrication Point

Epson L100 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Ink Type	Dye Ink
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	27 ppm (Draft)
Print Speed (Color)	15 ppm (Draft)
Connectivity	USB 2.0
Paper Capacity	100 sheets
Weight	2.7 kg
Ink System	4-color (Cyan, Magenta, Yellow, Black)
Ink Bottle Capacity	70 ml per color
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Operating Systems Supported	Windows XP, Windows Vista, Windows 7, Mac OS X 10.5.8 or later
Dimensions	472‎ x 222 x 130 mm (Width x Depth x Height)
