L200/L201/L100/L101 Revision A
Confidential
Disassembly/Assembly Disassembling/Assembling Flowchart 19

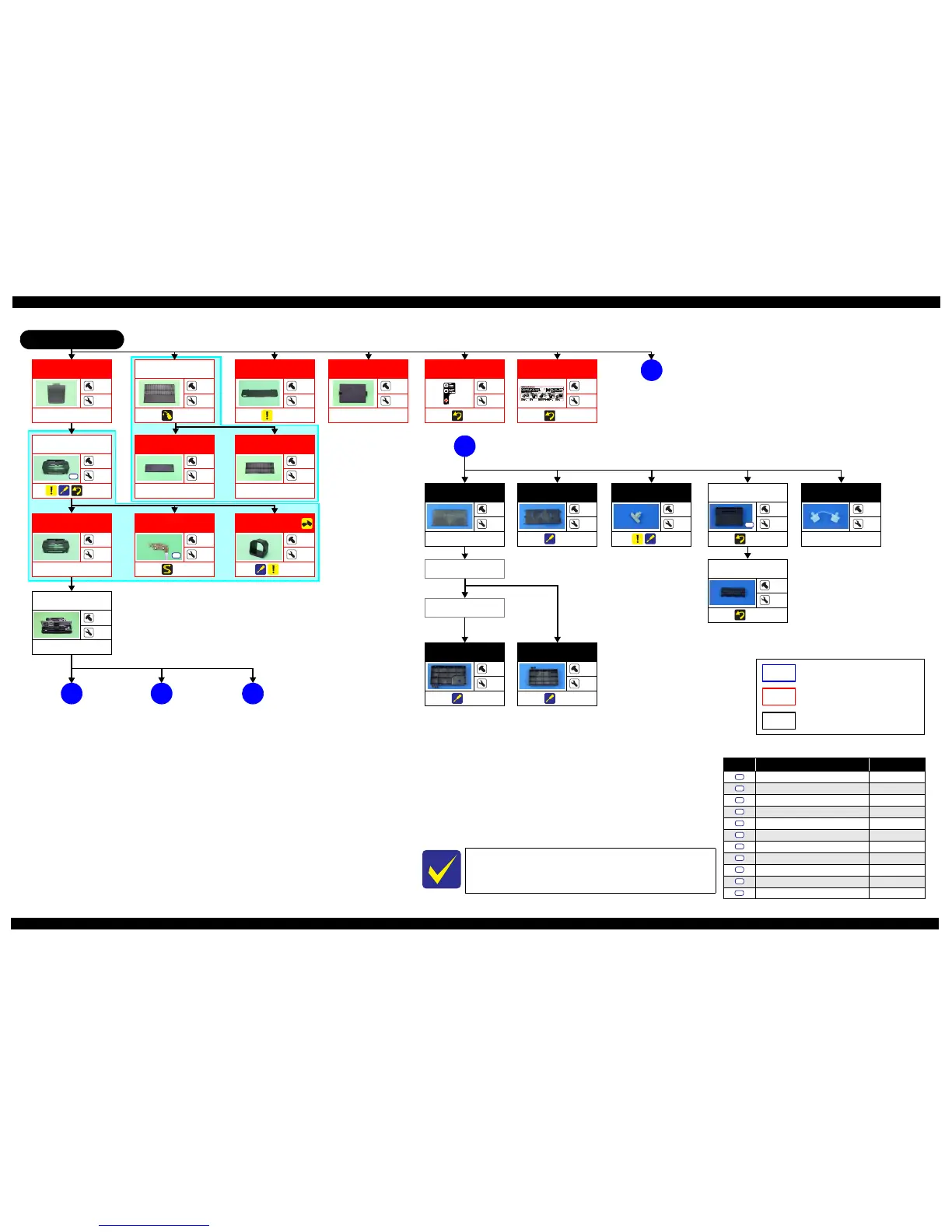

Flowchart 1-2. Disassembling Flowchart of Housing Part (2)
Stacker
---
2
---
Printer Cover
---
2
(p 30)
Paper Support
Assy
---
2
(p 40)
Panel Board
2
---
(p 32)
S1
Paper Support
Tray
---
2
---
Paper Support
Tray 2
---
2
---
Upper Housing
Assy
4
8
(p 30)
S2
Upper Housing
---
---
---
USB Cover
---
2
(p 25)
Rear Cover
---
1
---
A
Printer
Mechanism
---
---
---
B
(p 21)(p 20)
C
(p 22)
Bottom Cover
---
4
(p 27)
Val v e Lev e r
---
2
(p 26)
Top Cover
---
2
---
Bottom Cover
Val v e Le v er
Tube Valve Holder
Front
---
2
(p 28)
Tube Valve Holder
Rear
2
2
(p 28)
S10
Right Cover
---
7
(p 27)
Cap
---
---
---
Left Cover
---
7
(p 27)
D
(p 19)
D
L200/L201: (p 18)
L100/L101: (p 19)
Valv e Po siti o n
Label
---
---
(p 29)
Refilling Ink
Label
---
---
(p 30)
L100/L101 START
Screw type/torque list
Symbol Screw type Torque
C.B.P-TITE SCREW 3x8 5.0 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 5.0 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x5 7.5
± 0.5 kgf·cm
C.B.P-TITE SCREW 2.6x8 4.0 ± 0.25 kgf·cm
C.P.(P1) SCREW 2.6x3.5 3.5
± 0.25 kgf·cm
C.B.S-TITE SCREW 2x5 3.5 ± 0.25 kgf·cm
C.B.P-TITE SCREW 2x6 3.0
± 0.25 kgf·cm
C.F.B-TITE SCREW 2.6x6 3.0 ± 0.25 kgf·cm
C.B.P TITE SCREW 2.5x5 5.0 ~ 6.0 kgf·cm
C.B.P TITE SCREW 3x6 5.0 ~ 6.0 kgf·cm
C.B.P TITE SCREW 2.6x16 5.0 ~ 6.0 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
L200/L201 specific parts/unit
L100/L101 specific parts/unit
Common parts/unit
See “ Flowchart 1-1 Disassembling Flowchart of Housing Part (1)
(p18)” for disassembly of the Housing Part of L200/L201.
To Next Page
