L200/L201/L100/L101 Revision A
Confidential
Disassembly/Assembly Disassembling/Assembling Flowchart 21

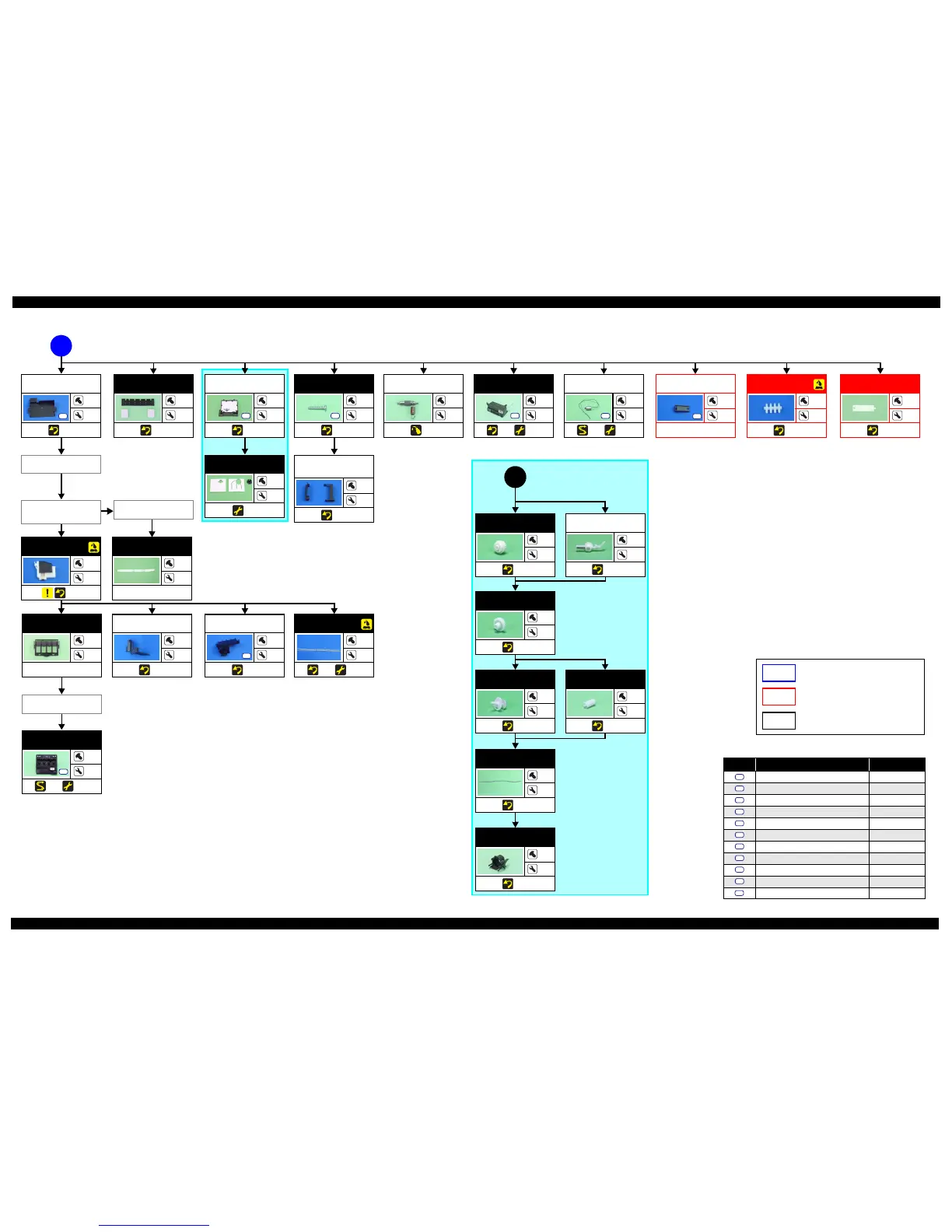

Flowchart 1-4. Disassembling Flowchart of Printer Mechanism Part (2)
Porous Pad Front
Paper Guide
---
---
(p 25)
Power Supply
Unit
1
---
(p 24) (p 34)
S1
Roller Idler Pick
Assy
---
---
(p 40)
Waste Ink Pads
---
6
(p 34)
CR Motor
2
---
(p 31) (p 34)
S5
B
Printhead
3
---
(p 31) (p 34)
S4
Waste Ink Tray
Assy
2
---
(p 26)
S1
Tube Holder Top/
Tube Holder
Lower
---
5
(p 28)
Screw
CR Cover
2
2
(p 27)
S9
Tube G uide P late
---
4
---
Tube Pressing
Plate
Tube Holder Top/
Tube Holder
Lower
Adapter Assy
---
1
(p 28)
FFC Cover
FFC Cover
---
3
(p 24)
CR Front
2
2
(p 27)
S9
Tube Assy
---
---
(p 28) (p 34)
Gear Pump Idle
---
1
(p 26)
Gear Pump
---
---
(p 26)
Bracket Pump
---
---
(p 26)
Pump Housing
---
---
(p 26)
Waste Ink Tube
---
---
(p 26)
Lever Pick Clutch
---
---
(p 26)
Roller Pump
---
---
(p 26)
(p 20)
2
Joint
---
2
(p 28)
Tube Pressing
Plate
1
---
---
S9
Screw
---
---
(p 28)
S11
Holder Contact
---
---
---
L200/L201: (p 18)
L100/L101: (p 19)
Tube Guide Plate
Support
---
---
(p 29)
Screw type/torque list
Symbol Screw type Torque
C.B.P-TITE SCREW 3x8 5.0 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x10 5.0 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x5 7.5
± 0.5 kgf·cm
C.B.P-TITE SCREW 2.6x8 4.0 ± 0.25 kgf·cm
C.P.(P1) SCREW 2.6x3.5 3.5
± 0.25 kgf·cm
C.B.S-TITE SCREW 2x5 3.5 ± 0.25 kgf·cm
C.B.P-TITE SCREW 2x6 3.0
± 0.25 kgf·cm
C.F.B-TITE SCREW 2.6x6 3.0 ± 0.25 kgf·cm
C.B.P TITE SCREW 2.5x5 5.0 ~ 6.0 kgf·cm
C.B.P TITE SCREW 3x6 5.0 ~ 6.0 kgf·cm
C.B.P TITE SCREW 2.6x16 5.0 ~ 6.0 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
L200/L201 specific parts/unit
L100/L101 specific parts/unit
Common parts/unit
To Next Page
