Epson L100 User Manual

L200/L201/L100/L101 Revision A

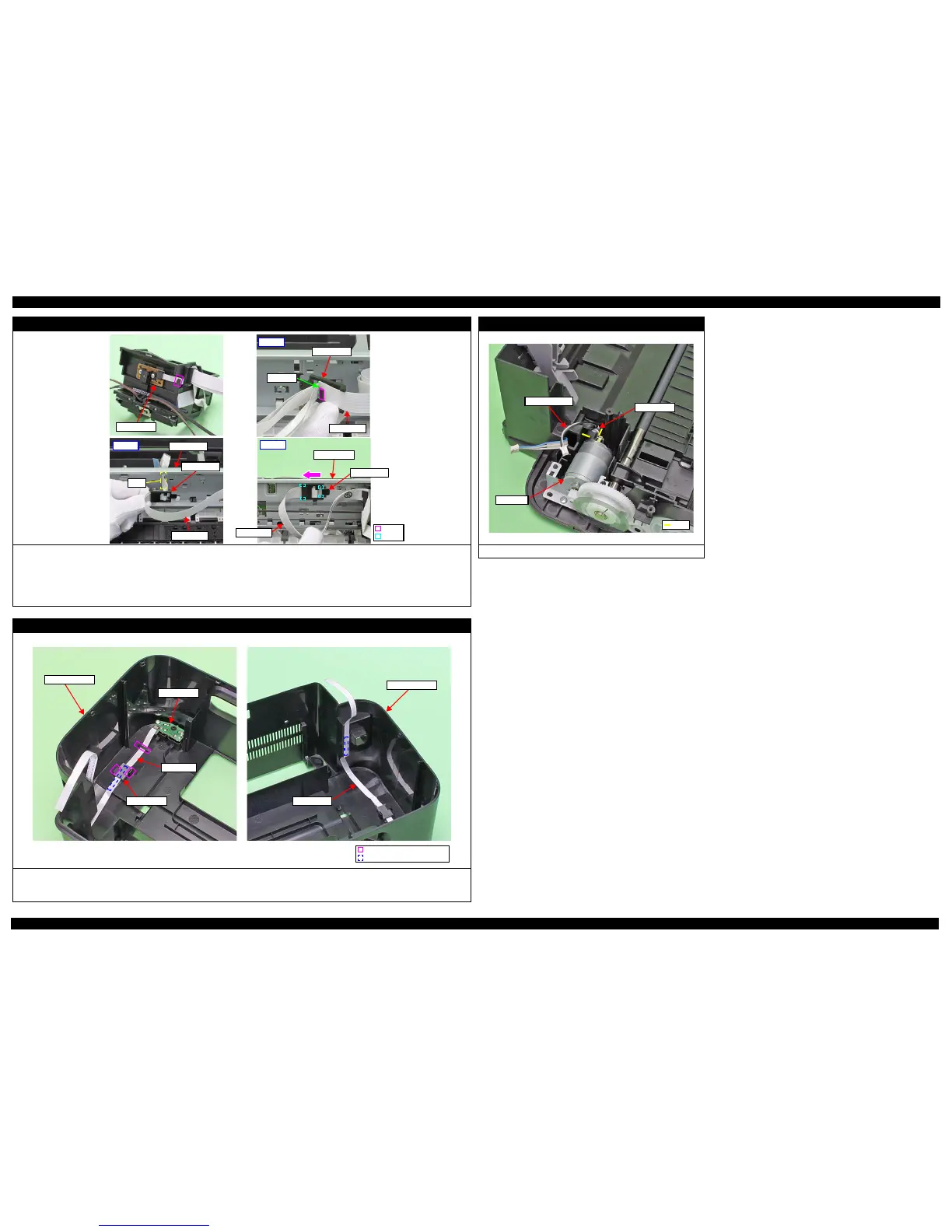

Disassembly/Assembly Routing FFCs/cables 32
Confidential
Head FFC
 When installing the Head FFC to the Carriage, route the Head FFC through the rib (x1) on the rear of the Carriage, and connect the Head FFC to the CR
Encoder.
 When installing the Head FFC to the Main Frame, route the Head FFC in the procedure below and connect it to the Main Board.
1. Align the fold line of the Head FFC with the rib (x1) of the Holder FFC, and route the FFC through the Holder FFC as shown in the figure above.
2. Route the Head FFC through the hole of the Main Frame.
3. Align the hooks (x4) of the Holder FFC with the holes (x4) on the Main Frame, and secure the Holder FFC to the Main Frame by sliding it to the 80-digit side.
CR Encoder
Holder FFC
Head FFC
Hole
Step 2
Main Frame
Holder FFC
Head FFC
Step 1
Fold line
Main Frame
Step 3
Rib
Hook
Head FFC
Holder FFC
PF Motor
Set the Ferrite Core of the PF Motor cable into the ribs of the Frame Base.
PF Motor
PF Motor cable
Ferrite Core
Rib
Panel Board (L100/L101)
When routing the Panel FFC, follow the instructions below.
1. Route it through the Ferrite Core and the hook (x1).
2. Secure the FFC with double-sided tape (x2) to the Upper Housing, and then secure the Ferrite core with the hooks (x2).
Panel FFC
Upper Housing
Ferrite Core
Upper Housing
Panel Board
Panel FFC
Hook
Double-sided tape (8 x 20 mm)

Epson L100 Specifications

General

Print Technology	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Ink Type	Dye Ink
Minimum Ink Droplet Size	3 pl
Print Speed (Black)	27 ppm (Draft)
Print Speed (Color)	15 ppm (Draft)
Connectivity	USB 2.0
Paper Capacity	100 sheets
Weight	2.7 kg
Ink System	4-color (Cyan, Magenta, Yellow, Black)
Ink Bottle Capacity	70 ml per color
Paper Sizes	A4, A5, A6, B5, Letter, Legal, Envelopes
Operating Systems Supported	Windows XP, Windows Vista, Windows 7, Mac OS X 10.5.8 or later
Dimensions	472‎ x 222 x 130 mm (Width x Depth x Height)
