Epson L120 Service Manual

Confidential
Disassembly/Reassembly Overview 18
L120 Revision A
 Printer mechanism

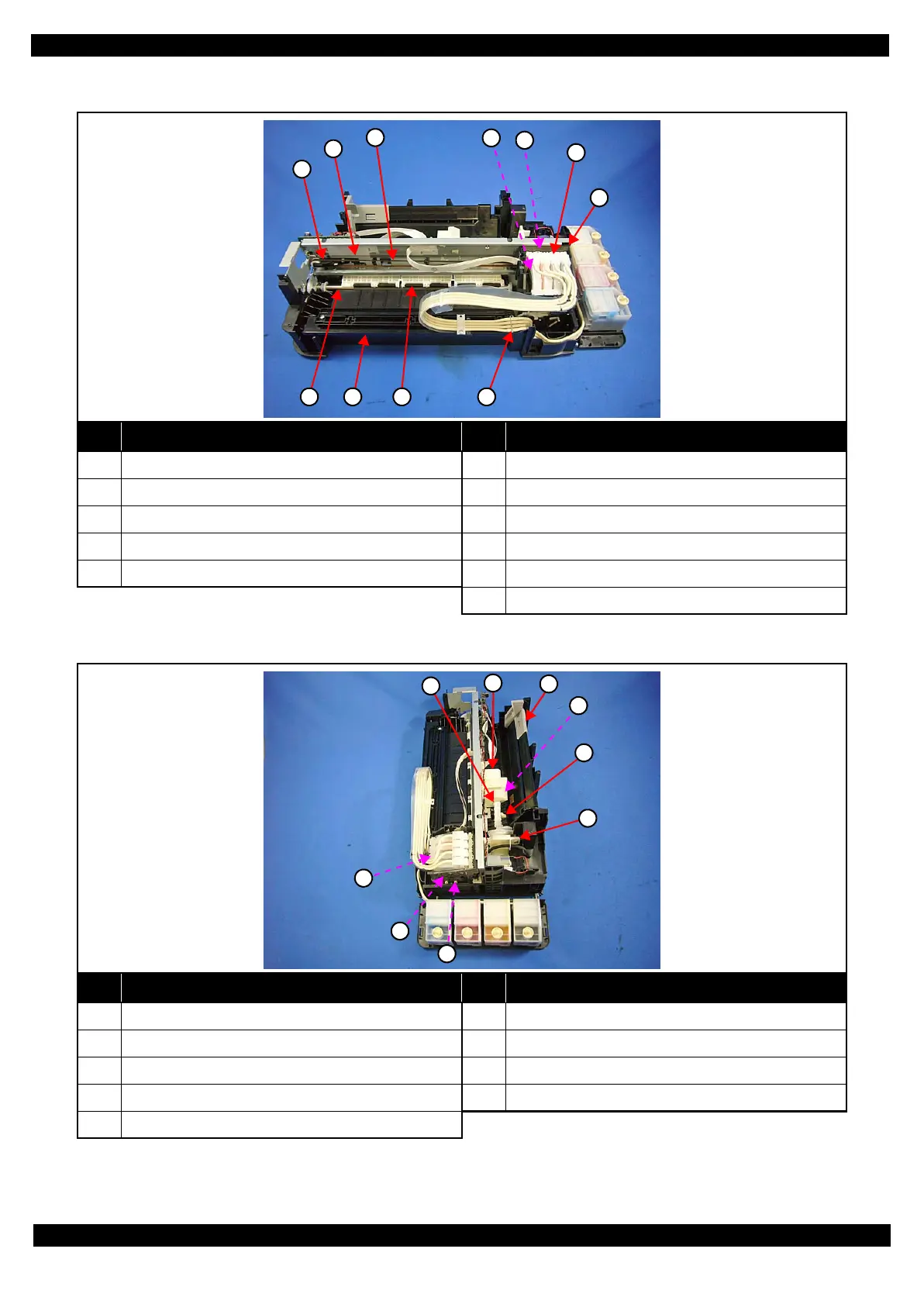

Figure 2-3. Printer Mechanism: Front
Figure 2-4. Printer Mechanism: Right
No. Name No. Name
1 CR Driven Pulley Assy (p30) 6 Adapter (p31)
2 CR Scale (p30) 7 CR Unit (p32)
3 CR Timing Belt (p32) 8 PF Roller Unit (p32)
4 Printhead (p31) 9 Star Wheel Holder Assy (p31)
5 CR Encoder Sensor (p32) 10 Paper Guide Upper Assy (p32)
11 Joint (p31)
No. Name No. Name
1 LD Roller Assy (p30) 6 Pump Unit (p32)
2 LD Roller Cover (p30) 7 Cap Assy (p29)
3 Hopper (p30) 8 Porous Pad for Cap Assy (p29)
4 Retard Roller Assy (p29) 9 Cap Lever (p29)
5 Paper Back Lever (p29)
1
2
3
5
8 11
7
10
4
9
6
9
7
8
6
5
4
3
1
2

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
