Disassembly/Reassembly Overview 19
L120 Revision A

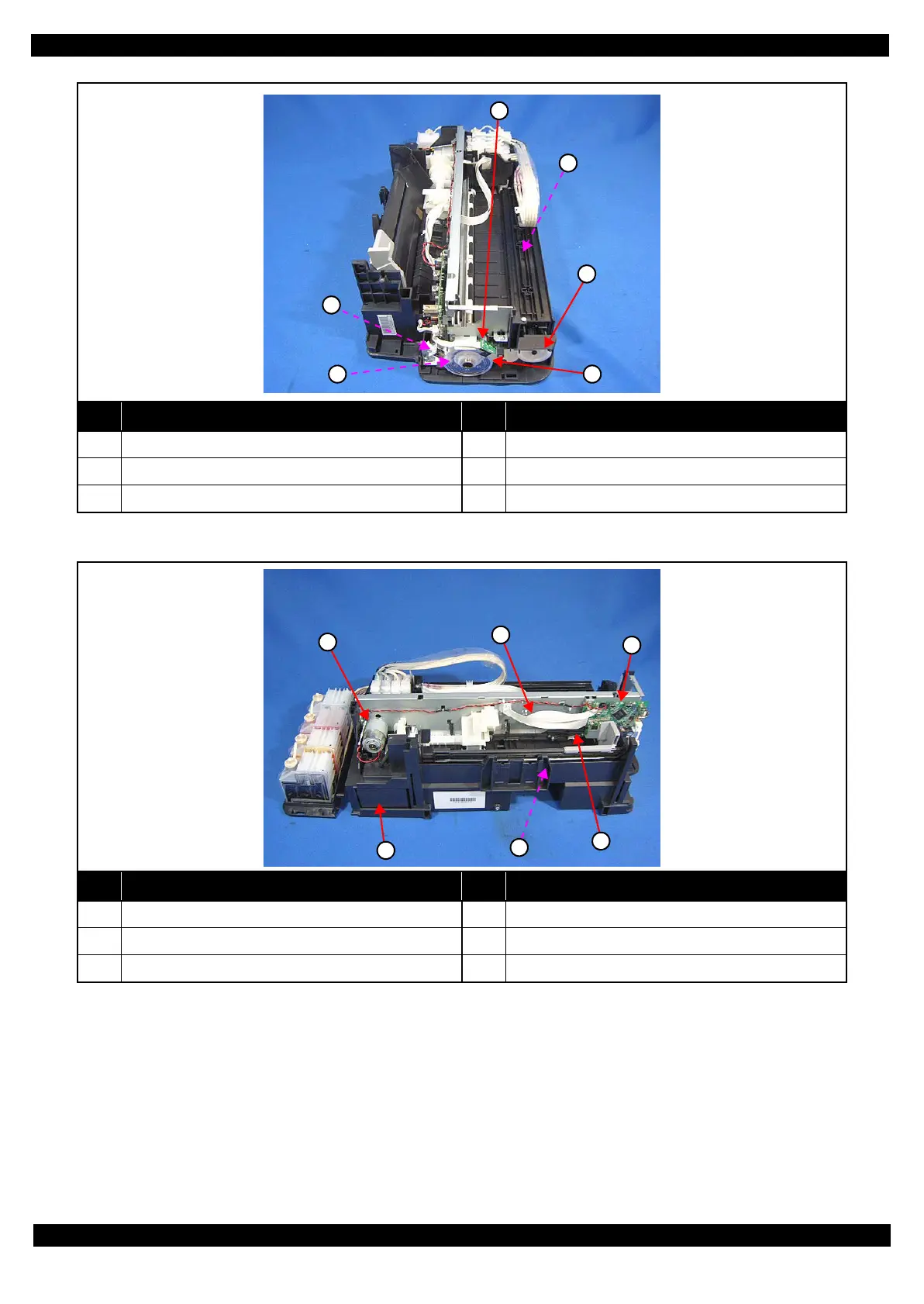

Figure 2-5. Printer Mechanism: Left
Figure 2-6. Printer Mechanism: Rear
No. Name No. Name
1 PF Encoder Sensor* (p29) 4 PF Scale (p29)
2 EJ Roller (p31) 5 PF Timing Belt (p29)
3 EJ Roller Gear (p29) 6 PF Motor Assy (p32)
No. Name No. Name
1 CR Motor (p30) 4 PE Sensor Lever (p30)
2 Head FFC (p32) 5 PS Unit (p29)
3 Main Board Assy (p30) 6 Waste Ink Pad Assy (p29)
