Epson L120 Service Manual

Confidential
Disassembly/Reassembly Overview 27
L120 Revision A

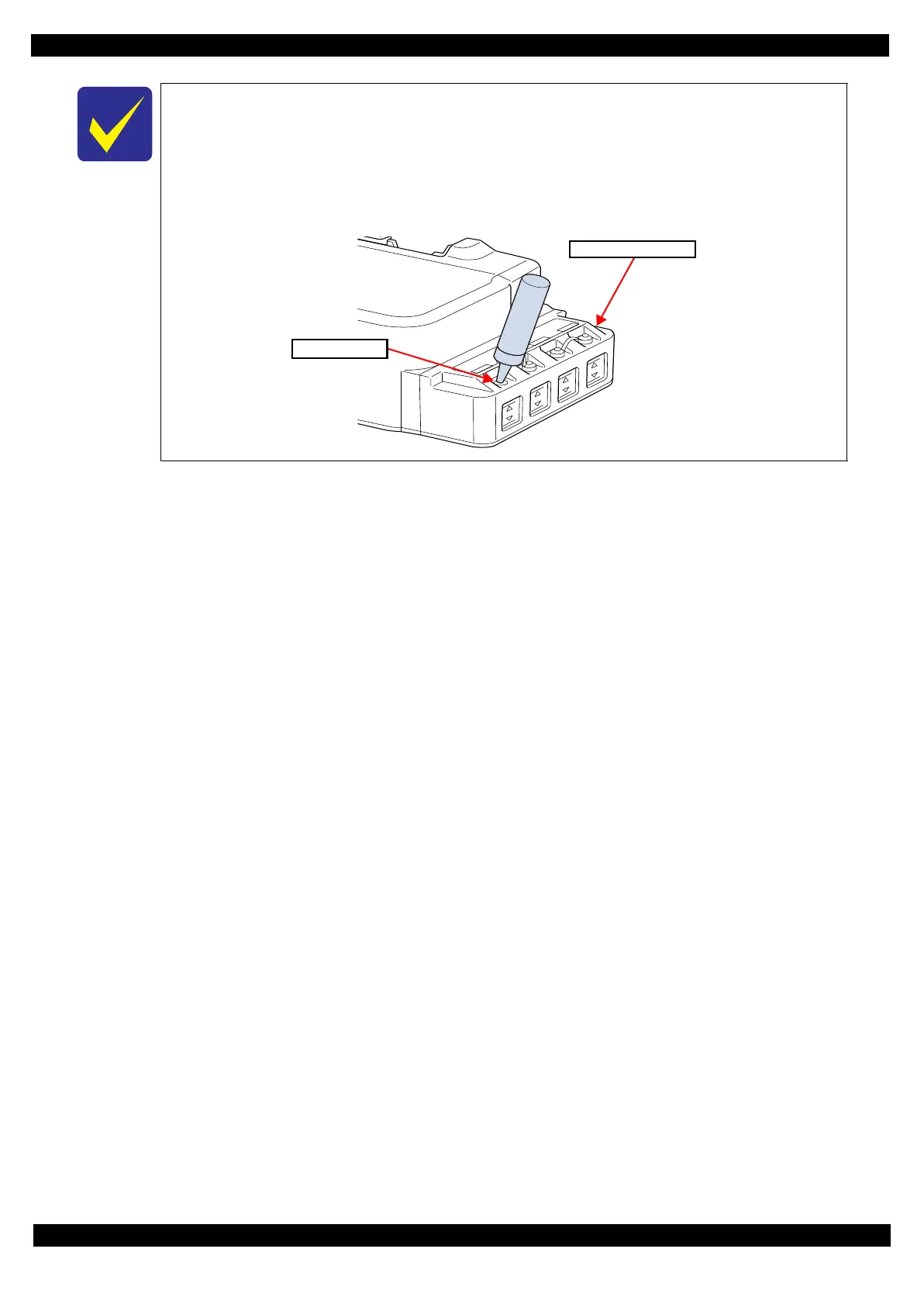

 It is recommended that the ink in the Ink Supply Tank should be discharged completely
before proceeding to disassembling/reassembling.
 After all the reassembling work is complete, the discharged ink of each color should be
refilled back to the Ink Supply Tank before performing the adjustment. Confirm the
colors indicated on the film of the Ink Supply Tank so as not to mistake them, and make
sure to refill each ink back to the correct tank from the corresponding ink supply hole.
Ink supply hole
Ink Supply Tank Assy

Epson L120 Specifications

Printing

print method	On-demand ink jet (piezoelectric)
nozzle configuration	180 nozzles Black, 59 nozzles each colour (Cyan, Magenta, Yellow)
maximum resolution	720 x 720 dpi
minimum ink droplet volume	3pl
print speed ISO Default Simplex - ISO 24734 Black	8.5ipm

Paper Handling

paper feed method	Friction feed
number of paper trays	1
input capacity	50 sheets, A4 Plain paper (75g/m[2])
maximum paper size	8.5 x 44"
print margin	3mm top, left, right, bottom

Electrical Specifications

rated voltage	AC 100-240V / 220-240V
rated frequency	50~60 Hz
power consumption printing	Approx. 10W
power consumption standby	Approx. 2.0W
power consumption sleep	Approx. 0.6W
power consumption power off	Approx. 0.3W

Dimensions & Weight

height	130mm (5.1")
width	215mm (8.5")
depth	461mm (18.1")
weight	2.4kg (5.3lb)
