L120 Revision A
Disassembly/Reassembly Detailed Disassembly/Reassembly Procedure for each Part/Unit 39
Confidential

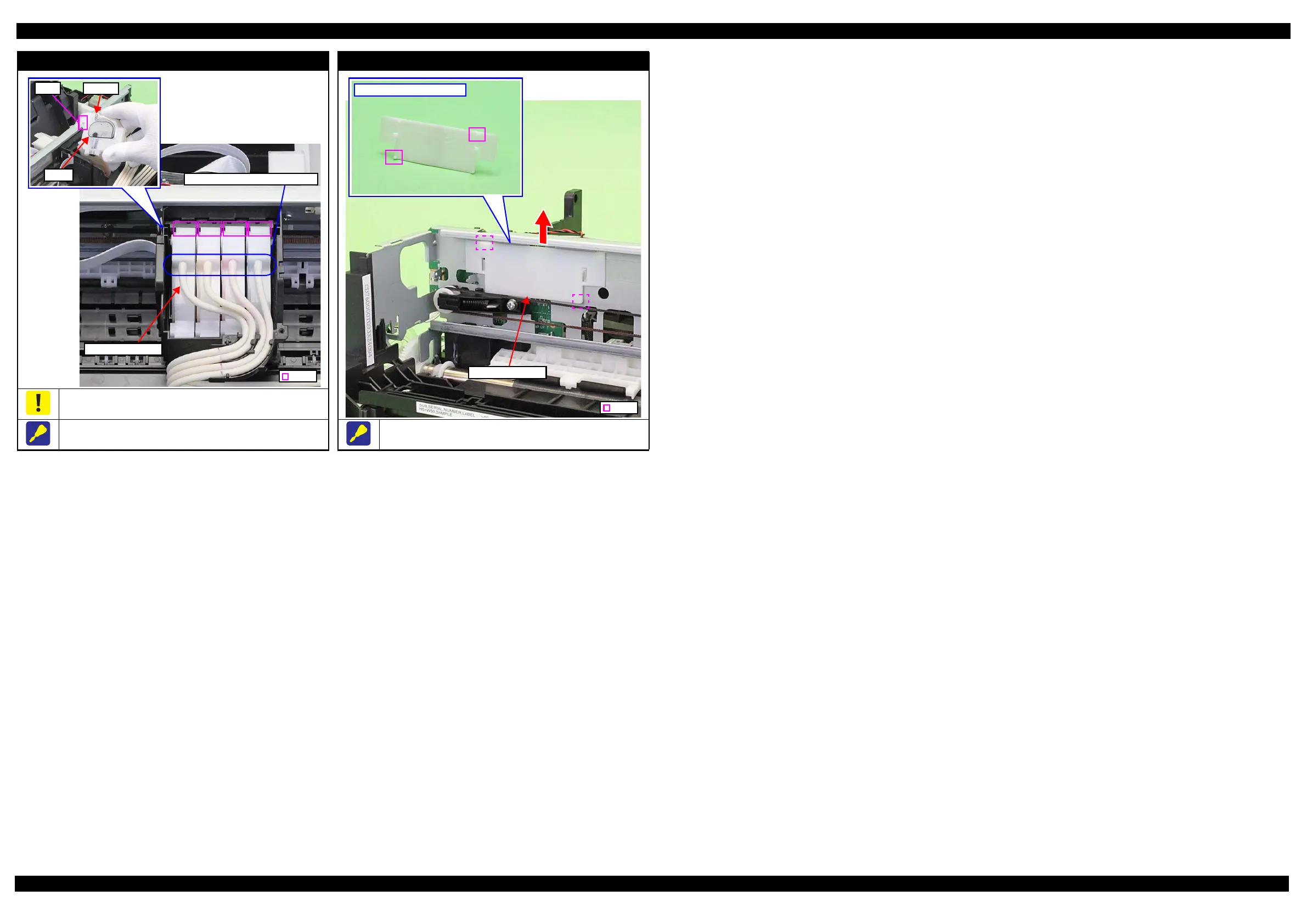

Adapter
Be careful not to damage or peel off the film of the Adapter.
Use a precision screwdriver when releasing the hooks of the
Adapter.
Connection of Ink Supply Tubes
Hook
Ink Supply Tube
Transistor Cover
When removing the Transistor Cover, release the dowels (x 2) on
the Transistor Cover and slide it upward.
Transistor Cover back side
To Next Page
