Epson L130 User Manual

L365/L366,L360/L362,L310/L312,L220/L222,L130/L132 Series Revision A
Confidential
Disassembly/Reassembly 34
FFC Cover Outer
---
1
(p 43)
Buttons
1
3
---
S5

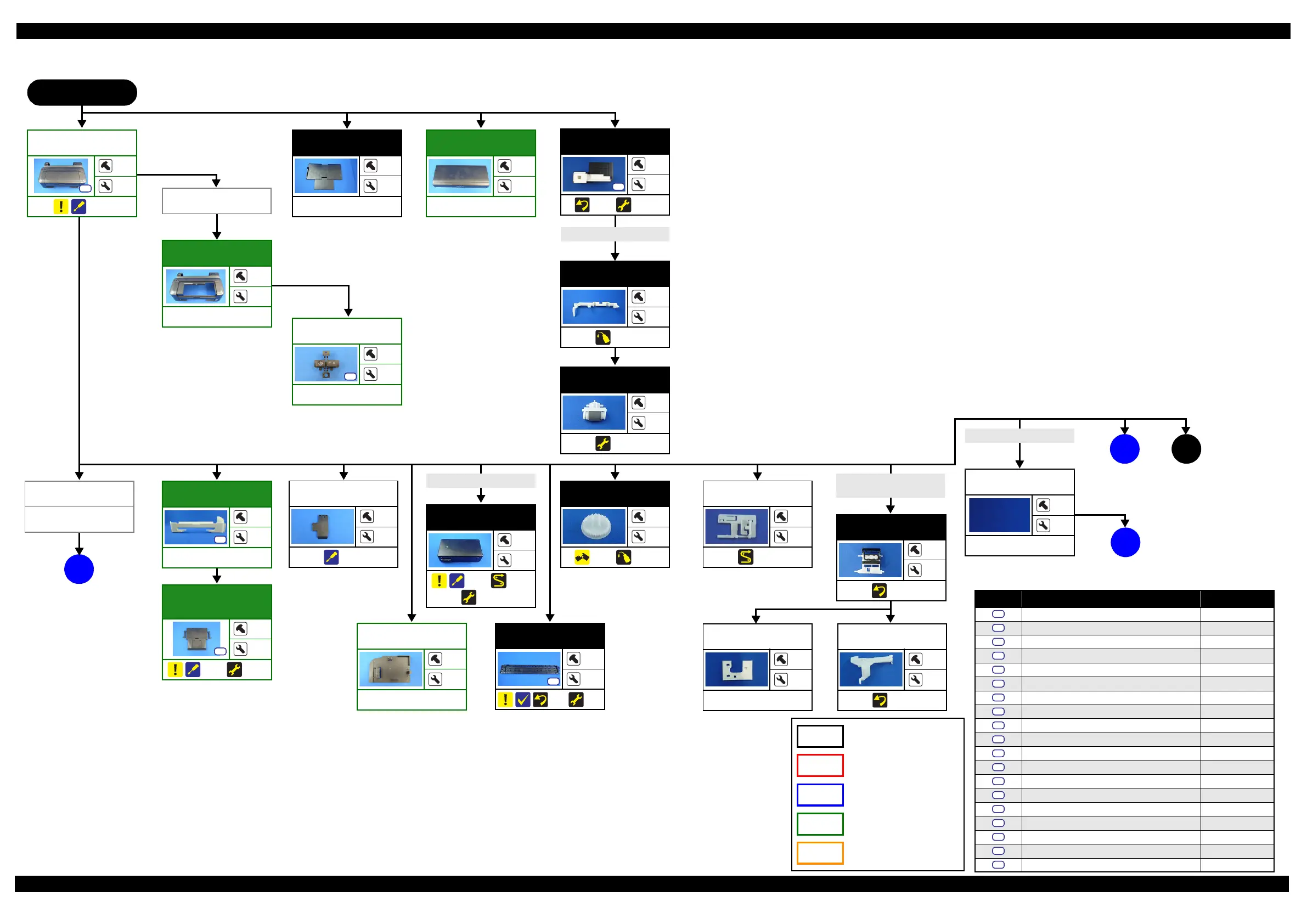

Flowchart 2-2. Disassembly Flowchart (2)
START
A
(p 35)
Waste Ink Pad
Assy
1
2
(p 41) (p 53)
S5
Paper Back
Lever
---
2
(p 65)
Retard Roller
Assy
---
2
(p 53)
PS Unit
---
2
(p 41) (p 51)
(p 53)
EJ Roller Gear
---
---
(p 43) (p 65)
 Cable (CN501)
 Extension Spring (x2)
FFC Holder
---
1
(p 51)
Paper Guide
Front Unit
2
2
(p 43) (p 53)
S5
Cap Lever
---
---
(p 44)
 Extension Spring ( × 2)
 Pump Tube
Porous Pad for
Cap Assy
---
---
---
Printer Cover
(p34)
Housing Upper
Assy
4
3
(p 49)
S5
PF Motor Cover
---
2
---
Housing Upper
---
---
---
Paper Support
Assy
---
2
---
Printer Cover
---
2
---
Tray Front Assy
Tray Front Rail
Left/Right
2
4
(p 49) (p 53)
S5
Housing Front
3
2
---
S6
B
(p 36)
Ink Supply Tank
Assy
---
---
---
 Ink Supply Tank Tube
C
(p 36)
4
(p 38)
L365/L366 Series specific parts/
unit
L365/L366,L360/L362,L220/
L222 Series specific parts/unit
L310/L312,L130/L132 Series
specific parts/unit
L210/L222,L130/L132 Series
specific parts/unit
Common parts/unit
Housing Front
(p34)
PF Motor Cover
(p34)
Cap Assy
---
3
(p 44)
Screw type/torque list
Symbol Screw Type Torque
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 3 ± 1 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN-3C 4 ± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 5
± 1 kgf·cm
C.B.P-TITE SCREW 3x10 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 4
± 0.5 kgf·cm
C.B.S-TITE SCREW 3x6 F/ZN-3C 6 ± 1 kgf·cm
C.B.S-TITE SCREW 3x8 F/ZN-3C 6
± 1 kgf·cm
C.P SCREW 3x4 F/ZN-3C 4 ± 1 kgf·cm
C.P.F.B-TITE SCREW 2x8 F/ZN-3C 4
± 1 kgf·cm
C.P.S-TITE (P2) SCREW 3x6 F/ZN-3C 7 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN-3C 5
± 0.5 kgf·cm
C.P SCREW 2.6x3 F/ZN-3C 4 ± 0.5 kgf·cm
C.B.S-TITE SCREW 3x4 F/ZN-3C 2
± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 2 ± 0.5 kgf·cm
C.B.P-TITE SCREW 2x8 F/ZN 25
± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 4 ± 1 kgf·cm
C.B.P-TITE SCREW 2.5x8 F/ZN 6
± 1 kgf·cm
C.B.P-TITE SCREW 2.6x5 F/ZN 3 ± 0.5 kgf·cm
C.B.P-TITE SCREW 3x6 F/ZN 3
± 0.5 kgf·cm
S1
S2
S3
S4
S5
S6
S7
S8
S9
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
