Epson L350 Service Manual

Confidential
Disassembly/Reassembly Overview 18
L350/L300/L355/L210/L110 Series Revision B
2.1.3 Locations of the Parts/Units
This section shows the locations of the main parts/units of this product.
 Exterior parts

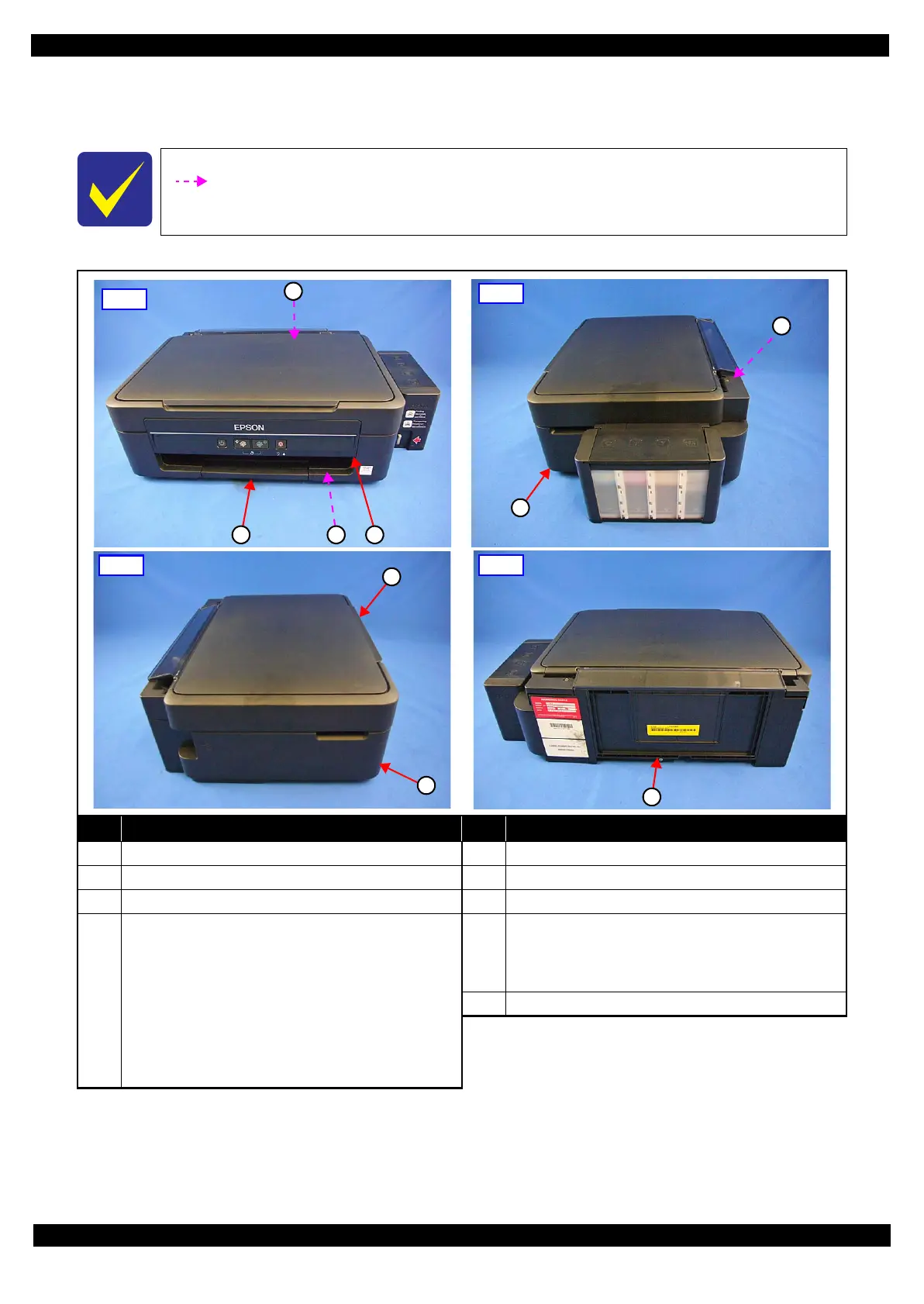

Figure 2-2. Exterior Parts
The parts/units which can not be seen in the following pictures are indicated in dotted lines
().
No. Name No. Name
1 Housing Rear (p32) (L350/L355/L210 Series only) 5 Hinge (p36) (L350/L355/L210 Series only)
2 Tray Front Assy (p32) 6 Housing Right (p36) (L350/L355/L210 Series only)
3 Frame Base Assy (p34) 7 Housing Left (p32) (L350/L355/L210 Series only)
4
Panel Unit
• L355 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
• L350/L210 Series (p 34)
Panel Board Assy (p37) / Panel Buttons (p37) /
Panel Housing Upper Assy (p37) / Panel Housing
Lower Assy (p37)
8
Scanner Unit (p32) (L350/L355/L210 Series only)
Scanner Housing Upper (p36) / Scanner Carriage Unit
(p36) / Scanner Housing Lower (p36) / CIS Module
Unit (p36) / Scanner Motor (p36)
9 Paper Support Assy (p32)
1
2 3 4
Front
5
6
Right
9
Rear
8
7
Left

Epson L350 Specifications

General

Print Technology	Inkjet
Print Method	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Functions	Print, Copy, Scan
Scanner Type	Flatbed color image scanner
Output Tray Capacity	30 sheets
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Ink Tank System	Integrated Ink Tank System
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scan Resolution	600 x 1200 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, DL
Input Tray Capacity	100 sheets
Operating System Compatibility	Windows XP, Windows 7, Windows 8, Windows Vista, Mac OS X 10.5.8 or later
Dimensions	472 x 300 x 145 mm
