Epson L350 Service Manual

L350/L300/L355/L210/L110 Series Revision B
Confidential
Maintenance Lubrication Points and Instructions 66
4.2 Lubrication Points and Instructions

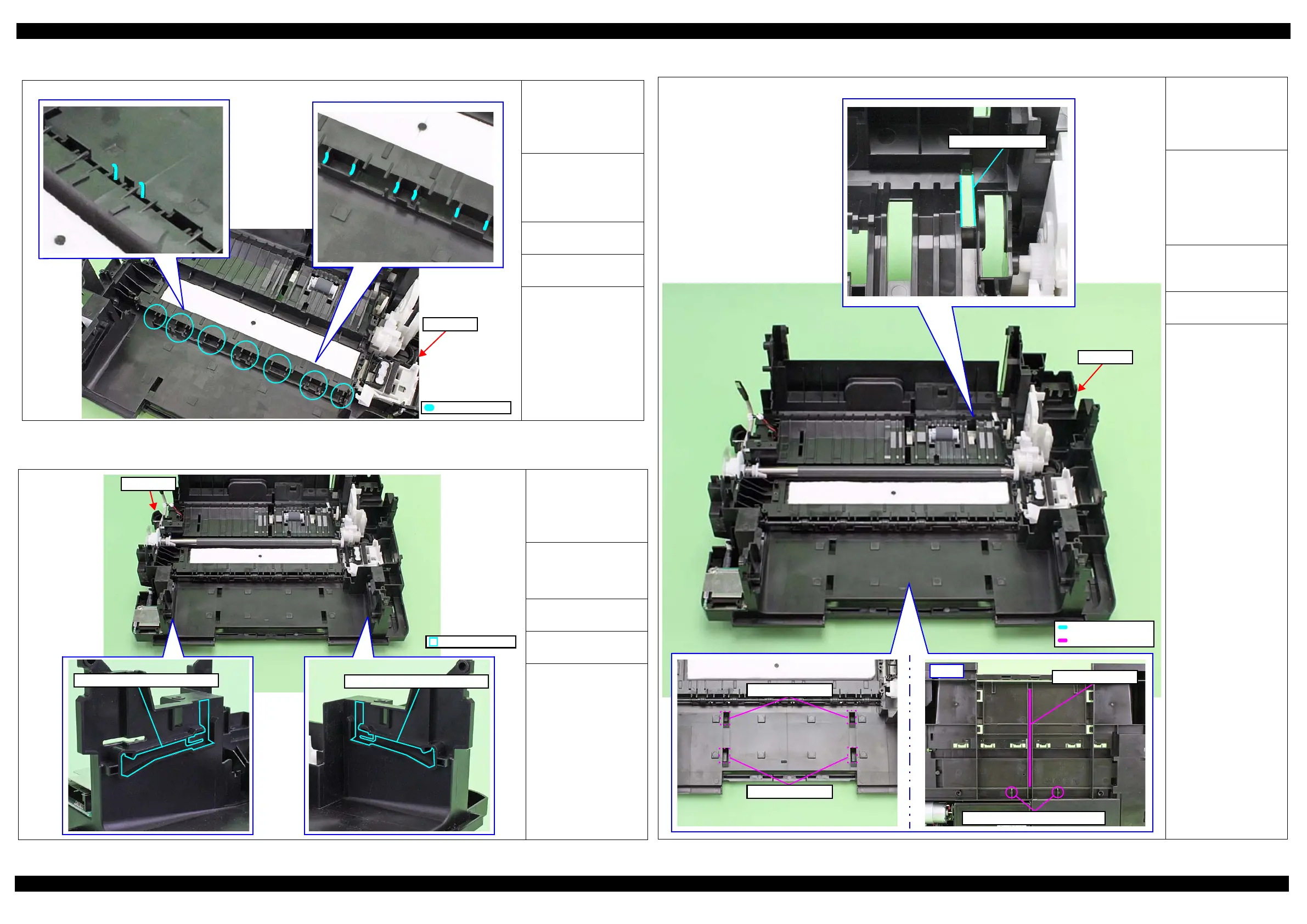

Figure 4-1. Lubrication of the Frame Base (1)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Ribs (x12) and hooks (x6)
on the Frame Base
(Contact points of the EJ
Roller)
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Frame Base
Application Point
Figure 4-2. Lubrication of the Frame Base (2)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
Contact points (x2) on the
Frame Base with the Panel
Assy
<Type>
G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease inside the rail section.
Apply grease inside the rail section.
Application Point
Frame Base
Figure 4-3. Lubrication of the Frame Base (3)
<Part supply as ASP>
None
<Lubrication status when
supplied as ASP>
---
<Lubrication Point>
1.Contact points (x2) on
the Frame Base with the
Hopper
2. Contact points (x7) on
the Frame Base with the
Stacker Assy
<Type>
1. G-71
2. G-74
<Application Amount>
Appropriate amount
<Remarks>
 Apply with flux
dispenser.
 Stir G-74 before use.
Apply grease on ribs
Apply grease on ribs
Bottom
Apply grease on both sides of dowels
Apply grease on ribs
2. Application Point
1. Application Point
Frame Base
Apply grease on sides.

Epson L350 Specifications

General

Print Technology	Inkjet
Print Method	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Functions	Print, Copy, Scan
Scanner Type	Flatbed color image scanner
Output Tray Capacity	30 sheets
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Ink Tank System	Integrated Ink Tank System
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scan Resolution	600 x 1200 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, DL
Input Tray Capacity	100 sheets
Operating System Compatibility	Windows XP, Windows 7, Windows 8, Windows Vista, Mac OS X 10.5.8 or later
Dimensions	472 x 300 x 145 mm
