Epson L350 Service Manual

Confidential
Disassembly/Reassembly Overview 25
L350/L300/L355/L210/L110 Series Revision B
2.1.5 Checks and Precautions before Disassembling
2.1.5.1 Factors which Affect the Print Quality

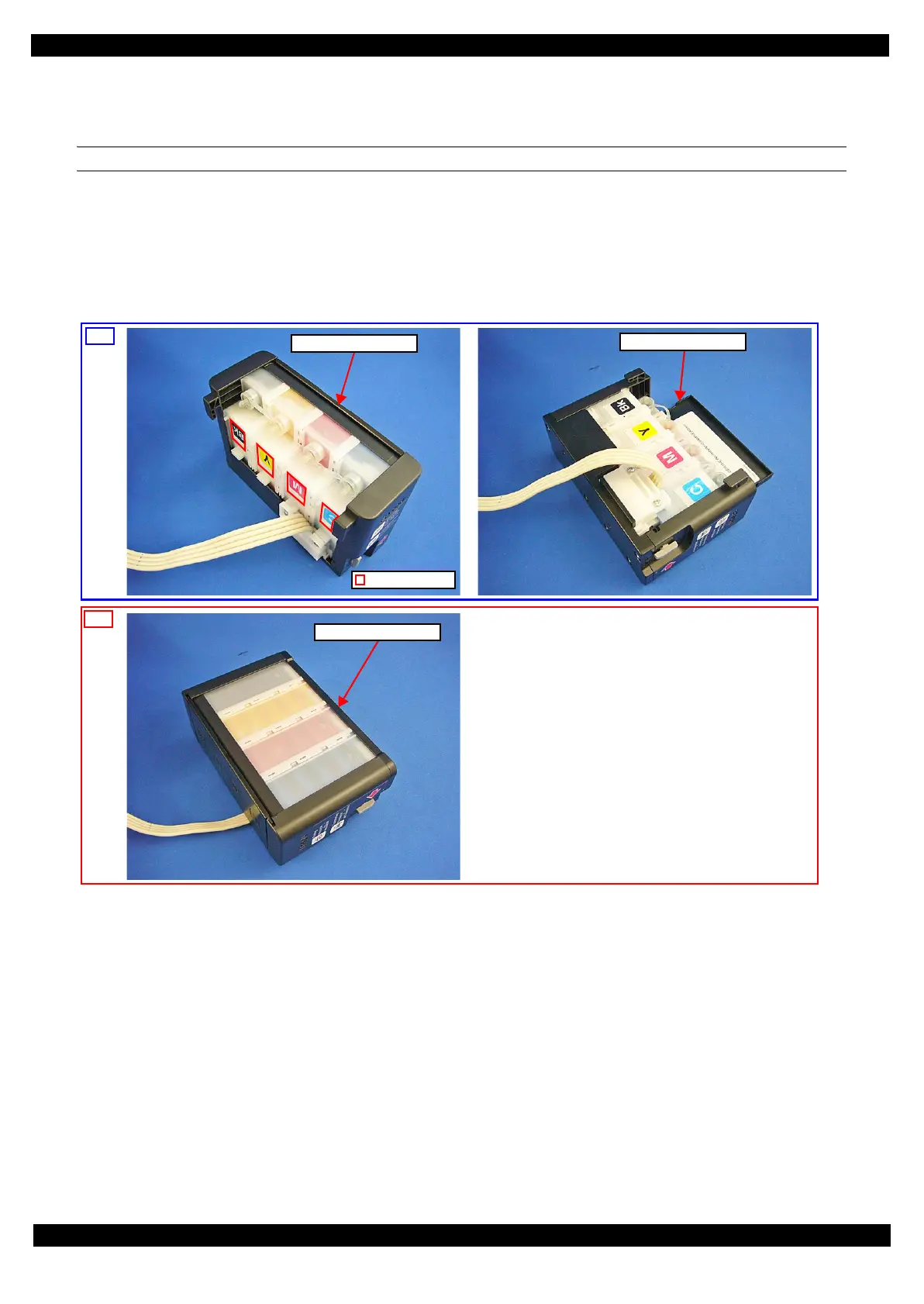

HOW TO PLACE THE INK TANK ASSY WHEN DISASSEMBLING/REASSEMBLING
The film under sealing film attached on the Ink Supply Tank Assy of this printer is ventilation film. The ink in the
ink tanks is vented to atmosphere through this film to keep ink supply to the Printhead stable. If the film gets wet
with ink, the ink in the tanks is not properly vented and printing may not be capable.
In order to prevent this from occurring, make sure to place the Ink Supply Tank Assy as shown below after
removing it.
Figure 2-8. How to Place the Ink Tank Assy
Ink Supply Tank Assy
Ink Supply Tank Assy
Ink Supply Tank Assy
Ventilation film
Do not place the Ink Supply Tank Assy with its film side down.
Otherwise, ink in the Ink Supply Tank Assy may reach and
cover the ventilation film, and the printing failure may occur.
OK
NG

Epson L350 Specifications

General

Print Technology	Inkjet
Print Method	On-demand inkjet (Piezoelectric)
Print Resolution	5760 x 1440 dpi
Minimum Ink Droplet Size	3 pl
Functions	Print, Copy, Scan
Scanner Type	Flatbed color image scanner
Output Tray Capacity	30 sheets
Connectivity	USB 2.0
Ink Colors	Black, Cyan, Magenta, Yellow
Weight	4.4 kg
Ink Tank System	Integrated Ink Tank System
Print Speed (Black)	33 ppm
Print Speed (Color)	15 ppm
Scan Resolution	600 x 1200 dpi
Paper Sizes	A4, A5, A6, B5, Letter, Legal, DL
Input Tray Capacity	100 sheets
Operating System Compatibility	Windows XP, Windows 7, Windows 8, Windows Vista, Mac OS X 10.5.8 or later
Dimensions	472 x 300 x 145 mm
