Epson LightScene EV-100 - Combining the Projector Mount with; The Ceiling Mount

Installation Procedure
17
Combining the Projector Mount with the
Ceiling Mount

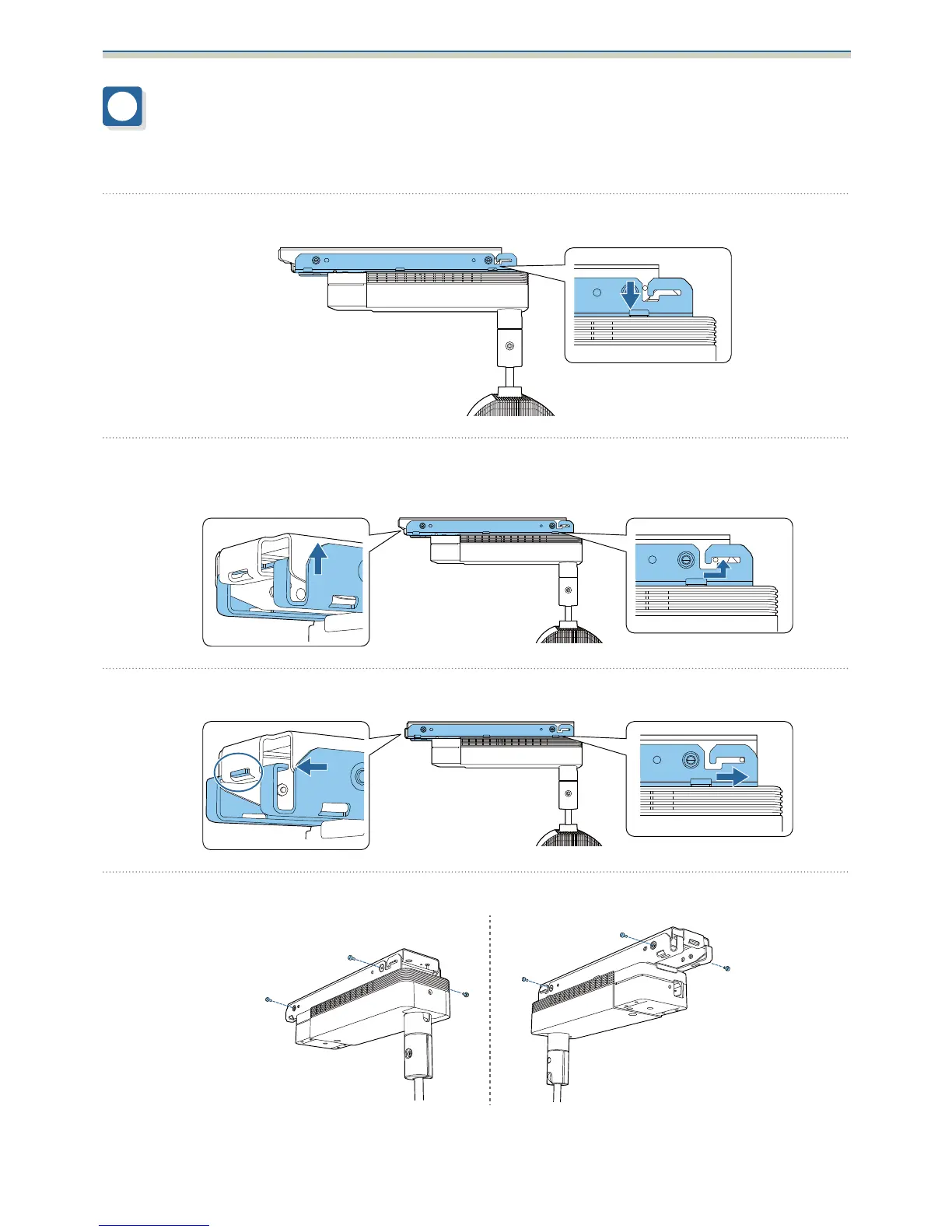

a
Fit the groove for the projector mount over the shaft for the ceiling mount.
b
Slide the projector mount along the groove.
Make sure that the opposite side of the projector mount fits into the hook section of the ceiling mount.
c
Insert the protruding section for the projector mount into the hole on the ceiling mount.
d
Secure the projector mount to the ceiling mount using the M4 x 12 mm screws supplied (x4).
