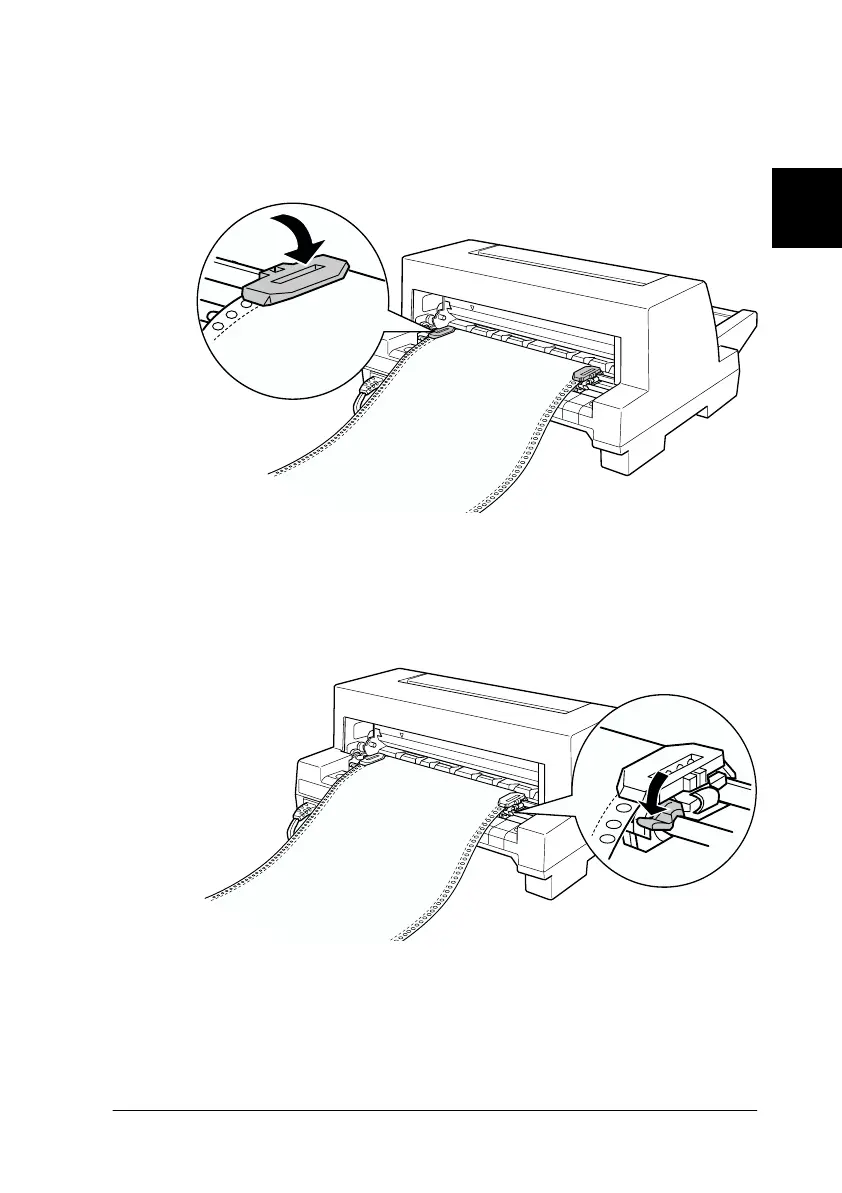

10. Close the sprocket covers. If necessary, unlock and reposition
the left sprocket unit so that the perforation aligns with the
arrow mark on the printer. Then lock the sprocket in place.
11. Slide the right sprocket unit to remove any slack in the paper.
Then push down the sprocket lock lever to lock the sprocket
in place.
12. Turn on the printer. When the printer receives data, it
automatically loads the paper before printing.
