30 Setting Up the Projector
For Stereo Mini-Jack Audio Output Ports
Some video devices, especially camcorders, may have a stereo
mini-jack audio output port. To connect to the
L-Audio-R input
jacks when using the
S-Video or Video port, use a commercially
available stereo mini-jack audio adapter cable (3.5-mm stereo
miniplug to two male RCA plugs) to connect to the projector.
1. Connect one end of the audio adapter cable to the
L-Audio-R
jacks on the projector.
2. Connect the other end of the audio adapter cable to your video
device’s audio output port.
If you don’t need to make any other connections, you can plug in
your projector and turn it on. See page 34 for instructions.

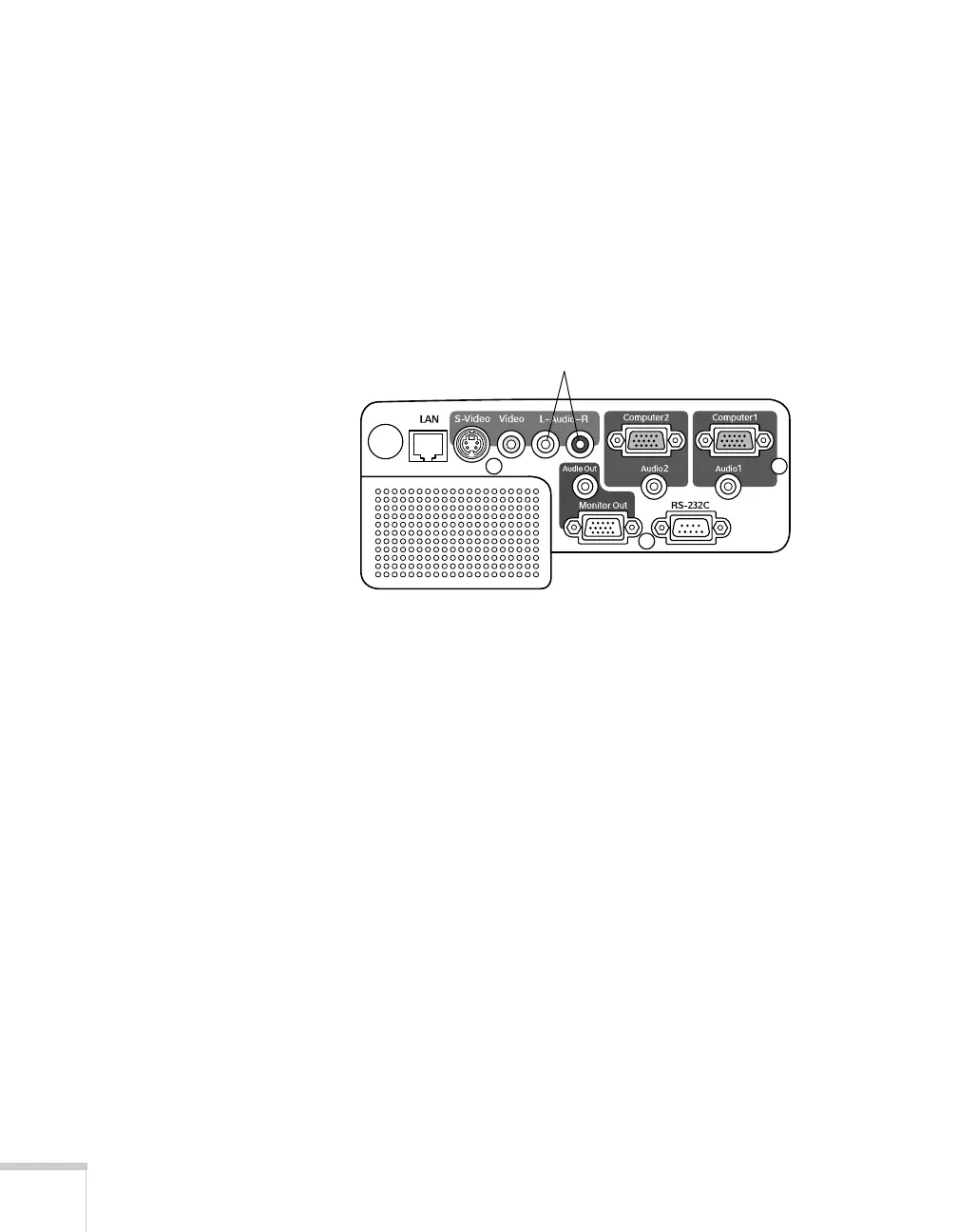

L-Audio-R jacks
To Next Page
